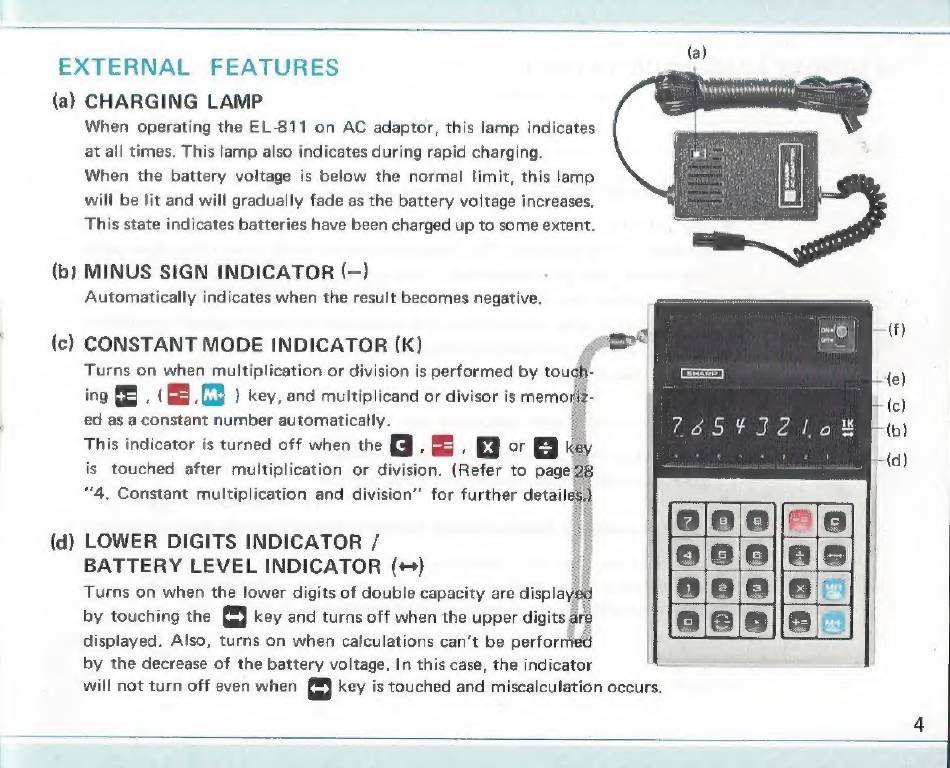

EXTERNAL
FEATURES
(a)
(b)
(c)
(d)
CHARGING
LAMP
When
operating the EL-811
on AC adaptor, this lamp indicates
at all times. This lamp also indicates during rapid charging.
When
the battery voltage is below the normal
limit, this lamp
will be lit and will gradually fade as the battery voltage increases.
This state indicates batteries have been charged up to some extent.
MINUS SIGN INDICATOR (—)
Automatically indicates when the result becomes negative.
CONSTANT MODE
INDICATOR
(K)
Turns on when multiplication or division is performed by toudh-
ing
5, (gE. im} ) key, and multiplicand or divisor is mem
ed as a constant number automatically.
This indicator is turned off when the J.
. Jo
&
is touched
after multiplication
or division.
(Refer to page 28
"4. Constant multiplication and division" for further detai
LOWER
DIGITS INDICATOR
/
BATTERY
LEVEL INDICATOR
(+)
Turns on when the lower digits of double capacity are displa'
by touching the
key and turns off when the upper digits
displayed. Also, turns on when calculations can't be performed
|
by the decrease of the battery voltage. In this case, the indicator
will not turn off even when io} key is touched and miscalculation occurs.
