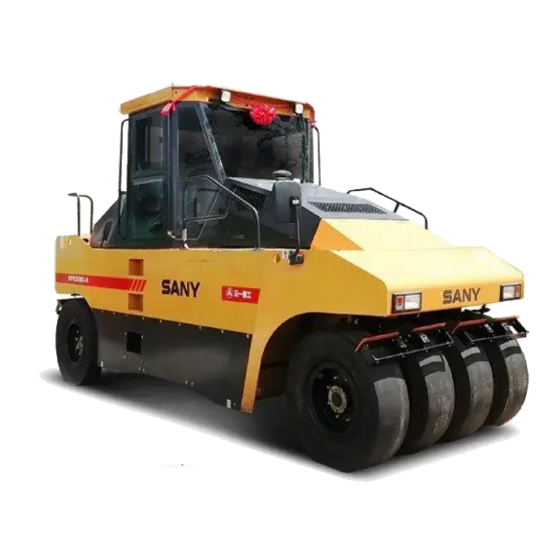

- Page 1 Quality Changes the World Pneumatic Tire Roller SPR260C-8 SPR300C-8 Safety, Operation & Maintenance Manual...
- Page 2 Find manuals at https://best-manuals.com...
- Page 3 Font-Arial Size:12pt SPR260/300 Series Pneumatic Tire Roller SPR260/300 Series Pneumatic Tire Roller Safety, Operation & Maintenance Manual WARNING Read and follow the safety precautions and instructions in this manual and on the machine decals. Failure to do so can cause serious injury, death or property damage. Keep this manual with the machine for reading and future reference.
- Page 4 Scan here to download the Service Cloud APP Android © 2018 by Sany Group. All rights reserved. No part of this publication may be reproduced, used, distributed or disclosed except for normal operation of the machine as described herein. All information included within this publication was accurate at the time of publication.
- Page 5 Operate and maintain parts (such as engine, a/c) on the roller, and observe related regulations in Users' guide supplied from their manufacturer. SANY expressly bears no liability for any machine failure or damage due to force majeure of natural disasters (earthquake, typhoon) and wars.
- Page 6 If any fault which will lead to unsafety occurs, stop the roller immediately. • If necessary SANY service personnel have the right to check the roller for safety. • Besides check items regulated by SANY, observe local laws and regulations to check the roller.
-
Page 7: Table Of Contents
1.2.3.2 Safety 1.2.3.3 System Functions 1.2.3.4 Operation 1.2.3.5 Maintenance 1.2.3.6 Troubleshooting 1.2.3.7 Specifications 1.3 Your SANY Machine 1.3.1 Machine Directions 1.3.2 Breaking in a New Machine 1.3.3 Machine Information 1.3.4 Serial Number and Distributor Information 1.4 Contact Information 2 Safety 2.1 General... - Page 8 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 2.3.2 Abnormal Case 2-13 2.3.3 Safety Equipment 2-13 2.3.4 Protective Equipment for Personal Safety 2-14 2.3.5 Precautions against Emergency 2-15 2.3.5.1 Correct Use of Emergency Stop Button 2-16 2.3.5.2 Fire Prevention 2-16 2.3.5.3 Evacuation in Fire Accident 2-18...
- Page 9 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 2.5.10 Removing Paint before Welding or Heating 2-38 2.5.11 Correct Welding 2-38 2.5.12 Do Not Heat beside Hydraulic Pipeline 2-39 2.5.13 Do Not Heat the Pipes with Combustible Liquid 2-40 2.5.14 Correctly Operating the Hydraulic System 2-40 2.5.15 Being Aware of High-pressure Liquid...
- Page 10 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 4.2.2 Inspection Before Starting 4.2.2.1 Check the Engine Oil Level 4.2.2.2 Check the Oil Water Separator 4.2.2.3 Check the Fuel Level 4.2.2.4 Check the Coolant 4.2.2.5 Check the Hydraulic Oil Level 4.2.2.6 Check the Air Filter 4.2.2.7 Check the Engine Air Intake Pipeline 4.2.2.8 Check the Fuel Filter...
- Page 11 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 4.6.8 Shutting Down the Engine And Parking the Machine 4-48 4.7 Equipment Cleanup 4-50 4.8 Transportation 4-51 4.8.1 Transport Vehicle 4-51 4.8.2 Driving on to the Transport Vehicle Independently via a Slope 4-52 4.8.3 Loading and Unloading by a Crane 4-53...
- Page 12 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 5.5.2.4 Air Filter 5-12 5.5.2.5 Engine Air Intake Pipeline 5-16 5.5.2.6 Engine Oil Level 5-16 5.5.2.7 Engine Coolant Level 5-16 5.5.2.8 Engine Belt 5-17 5.5.2.9 Compressor V-belt 5-19 5.5.2.10 Crankcase Vent Line 5-20 5.5.2.11 Exhaust Manifold 5-20...
- Page 13 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 5.9.1 Replace 5-37 5.9.1.1 Air Filter 5-37 5.9.1.2 Lubricant for Drive Axle 5-37 5.9.1.3 Filter Element for Oil Spraying 5-38 5.9.2 Fill-Lubricant 5-39 5.10 Every 750 Hour/Half Year Maintenance 5-40 5.10.1 Check/Maintain-A/C 5-40 5.10.2 Replace-Oil Water Separator...
- Page 14 Table of Contents SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 6.4.11 Other Faults 6-24 6.5 Electrical Parts 6-25 6.5.1 Electrical System 6-25 6.5.2 Fuses 6-27 6.5.3 Radio 6-28 6.6 A/C System 6-29 6.6.1 No Cooling 6-30 6.6.2 Insufficient Cooling 6-30 6.6.3 Abnormal Noise in Cooling System 6-32 6.6.4 Faults of Heating Device...
- Page 15 1.2.3.2 Safety 1.2.3.3 System Functions 1.2.3.4 Operation 1.2.3.5 Maintenance 1.2.3.6 Troubleshooting 1.2.3.7 Specifications 1.3 Your SANY Machine 1.3.1 Machine Directions 1.3.2 Breaking in a New Machine 1.3.3 Machine Information 1.3.4 Serial Number and Distributor Information 1.4 Contact Information Safety, Operation & Maintenance Manual - October 2018...
- Page 16 Introduction SPR260/300 Series Full Hydraulic Pneumatic Tire Roller WARNING R e a d a n d u n d e r s t a n d a l l s a f e t y precautions and instructions in this manual before reading any other manuals provided with this roller and before operating or servicing the roller.
-
Page 17: Introduction
SANY-built equipment is widely used • throughout the industry for various types of applications. SANY is a leading manufacturer of heavy • construction equipment worldwide. This operator ’s manual provides safety, system functions, operation, maintenance, troubleshooting and specifications. In order to... -
Page 18: Your Documentation Package
Put all data in a folder (if including leaflets). • Print and replace the lost, damaged and • blotted pages. Add the latest SANY data in time and • destroy the inapplicable old documents. 1.2.2 Documentation storage Always keep the manual with the machine in the operator cabin. -
Page 19: Safety
SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 1.2.3.1 Introduction This section provides an overview of what is covered in the rest of this manual, including machine label information and SANY contact information. 1.2.3.2 Safety This section covers basic safety information relating to this equipment. -
Page 20: Specifications
1.2.3.7 Specification This section provides the general information about this machine. Some information may change as design modification. 1.3 Your SANY Machine 1.3.1 Machine directions (1) Front (2) Left (3) Right (4) Back Fig.1-2... -
Page 21: Breaking In A New Machine
However, initial operation on the machine in severe conditions will seriously affect the performance or reduce the service life of the machine. Thus SANY recommends you to perform a 100-hour test run before putting the machine into production use. -
Page 22: Machine Information
1.3.3 Machine information The serial numbers and model numbers on the components are the only numbers that your SANY distributor will need when ordering replacement parts or requiring assistance for your machine. You can find the related information on the name plate. It is a good idea to record these information in this manual for future use. -
Page 23: Serial Number And Distributor Information
Introduction SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 1.3.4 Serial number and distributor information This location is for you to record information relating to your equipment. It is advised that you keep this manual with your equipment at all times for reference. Model No. -
Page 24: Contact Information
Introduction SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 1.4 Contact Information Thank you for purchasing a SANY product. In the event that you should need to contact us for any reason, you can reach us as follows. Our address: SANY Industry Town, Economic and... - Page 25 Introduction SPR260/300 Series Full Hydraulic Pneumatic Tire Roller Safety, Operation & Maintenance Manual - October 2018...
- Page 26 Introduction SPR260/300 Series Full Hydraulic Pneumatic Tire Roller Safety, Operation & Maintenance Manual - October 2018 1-10...
-
Page 27: Safety 2.1 General
Safety SPR260/300 Series Full Hydraulic Pneumatic Tire Roller Safety 2 Safety 2.1 General 2.1.1 Intended Use 2.1.2 Unintended Use 2.1.3 Qualifications of Operators and Maintainers 2.1.4 Conversions and Alterations to the Machine 2.2 Safety Message 2.2.1 Safety Message Introduciton 2.2.2 Safety Message Locations 2.2.3 Signal Alerts 2.2.4 An Example of Signal Alerts 2.2.5 Safety Decals... - Page 28 Safety SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 2.4.1.2 Seat Adjusting 2-20 2.4.1.3 Seat Belt 2-21 2.4.1.4 Before Starting the Engine 2-21 2.4.1.5 Engine Start 2-23 2.4.1.6 After Starting the Engine 2-24 2.4.2 Safe Operation 2-24 2.4.2.1 Surveying the Worksite in Advance 2-24 2.4.2.2 Precautions before Working 2-26...
- Page 29 Safety SPR260/300 Series Full Hydraulic Pneumatic Tire Roller 2.5.22 Safe Treatment of Chemicals 2-46 2.5.23 Appropriate Disposal of Wastes 2-46 2.6 Precautions of Lubricant Selection 2-47 2.7 Safe Transportation 2-47 2.7.1 Load/unload the Roller 2-47 2.7.2 Lift and Tie Down the Roller 2-48 2.7.3 Transport the Roller 2-49...
- Page 30 Safety SPR260/300 Series Full Hydraulic Pneumatic Tire Roller WARNING R e a d a n d u n d e r s t a n d a l l s a f e t y precautions and instructions in this manual before reading any other manuals provided with this roller and before operating or servicing the roller.
- Page 31 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
