Controls, features, and connections

(1) MAIN CHASIIS
(2) MAIN PLATTER
(3) MOTOR WITH PULLEY
(4) SPEED CONTROL SWITCH
(5) DRIVE BELT
(6) RECORD CLAMP
(7) TONEARM FLANGE
(8) TONEARM COUNTERWEIGHT
(9) TONEARM LIFT
(10) TONEARM REST AND REMOVABLE TRANSPORT LOCK
(11) TONEARM TUBE
(12) HEADSHELL WITH FINGER LIFT
(13) ANTI-SKATING WEIGHT WITH THREAD
(14) ANTI-SKATING WEIGHT SUPPORT
(15) ANTI-SKATING STUB WITH ANTI-SKATING ADJUSTMENT SCALE
(16) SUB-CHASSIS
(17) SUB-PLATTER
(18) 3x TRANSPORT SCREWS
(19) LID
(20) LID HINGE
(21) HINGE FASTENERS
(22) RCA OUTPUT SOCKLET
(23) HEIGHT ADJUSTABLE FEET

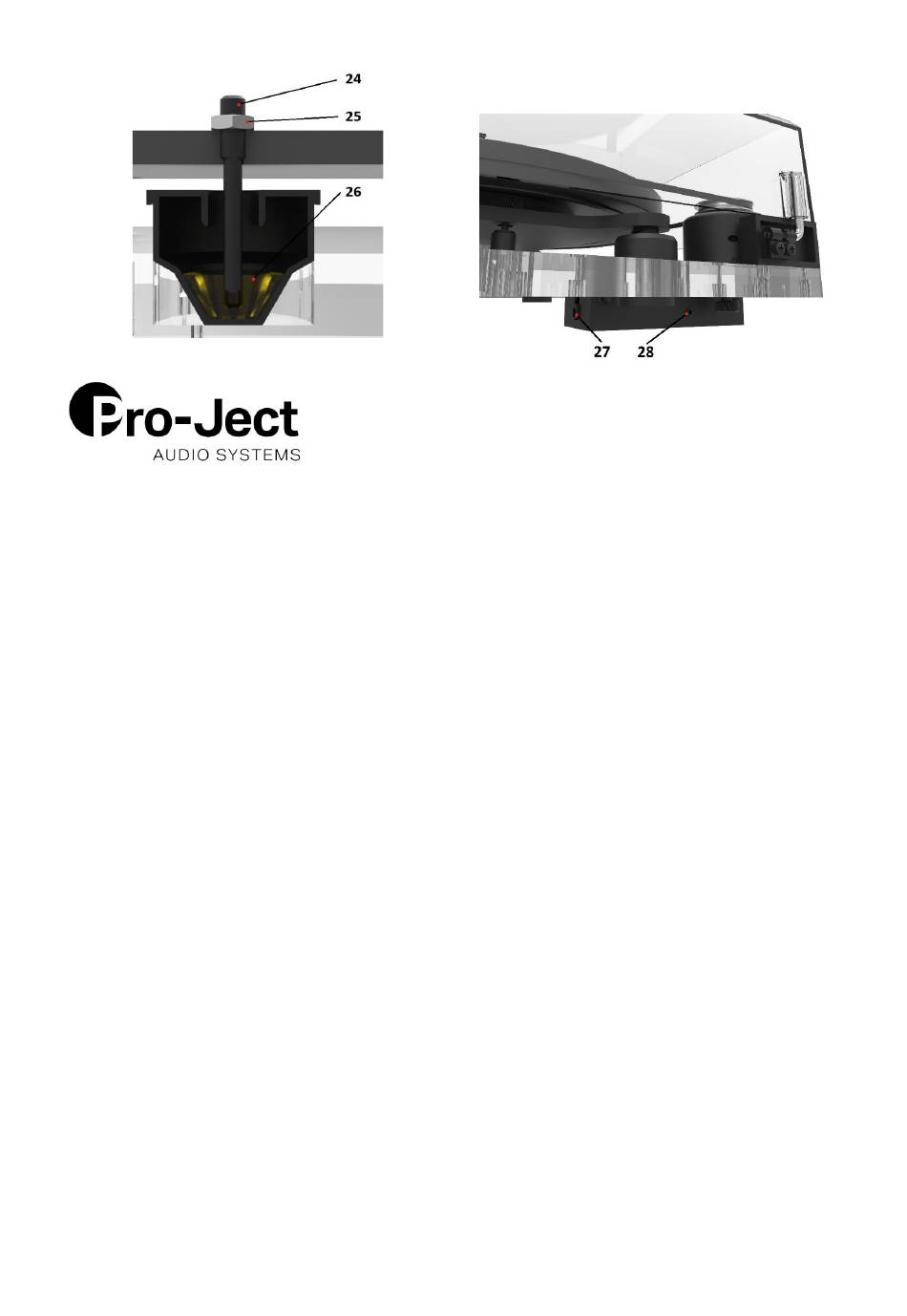

(24) ADJUSTMENT SCREW FOR SUB-CHASSIS DAMPING
(25) COUNTER NUT FOR SUB-CHASSIS DAMPING SCREW
(26) DAMPER TANK
(27) POWER SUPPLY SOCKET
(28) MOTOR CONNECTION SOCKET
