Sealey SA649 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Ensure that Health & Safety, local authority and general workshop practice regulations are adhered to when using this
‰
equipment. See the notes at the end of the instructions regarding prolonged exposure to vibration.
Familiarise yourself with the applications, limitations and potential hazards peculiar to the nibbler.
9
WARNING! Disconnect the nibbler from the air supply before changing accessories, servicing or performing any maintenance.
‰
Maintain the nibbler in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the work area clean, uncluttered and ensure that there is adequate lighting.
9
Keep the nibbler clean for best and safest performance.
9
WARNING! Always wear approved eye or face protection when operating the nibbler.
‰
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery and contain, and/or tie back, long hair.
9
Keep the nibbler away from your body and at a safe distance from others.
9
Keep children and unauthorised persons away from the work area.
9
Secure unstable workpiece with a clamp, vice or other adequate holding device.
9
Ensure that spent punchings are disposed of correctly and do not cause a hazard.
9
WARNING! Ensure that the correct air pressure is maintained and not exceeded.
‰
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure all connections are secure.
9
DO NOT use the nibbler for any purpose other than that for which it is designed.
8
DO NOT operate the nibbler if any parts are damaged or missing.
8
DO NOT carry the nibbler operating the trigger, by the hose or yank the hose from the air supply.
8
DO NOT get the nibbler wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT allow untrained persons to operate the nibbler.
8
DO NOT operate the nibbler when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT direct air from the air hose at yourself or others.
8
When not in use disconnect from the air supply and store in a safe, dry, childproof area.
9
WARNING! – RISK OF HAND ARM VIBRATION INJURY
‰
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
This tool has been tested in accordance with: EN ISO 28927-7: 2009 & BS EN ISO 15744:2008.
Declaration and verification of Vibration Emission figures are in accordance with EN 12096: 1997
Measured vibration emission value (a): 8.73 m/s²
Uncertainty value(k):3.33 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend
that a specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user or employer will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably and depend on many factors, such as the operator, task, inserted tool/consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm
Vibration Syndrome.
1.1. HEALTH SURVEILLANCE
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be
modified accordingly.
1.2. PERSONAL PROTECTIVE EQUIPMENT
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and
dry and maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the
Correct Use and Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on
the HSC website www.hse.gov.uk - Hand-Arm Vibration at Work.
© Jack Sealey Limited

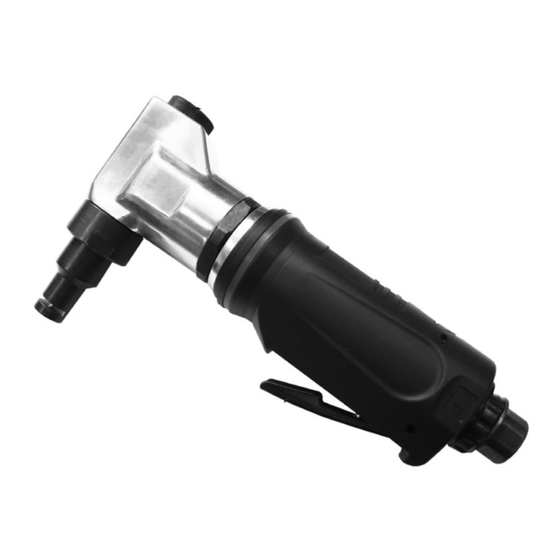

AIR NIBBLER
MODEL NO:
Wear ear Wear a mask Wear protective
protection
Original Language Version
SA649
gloves
SA649 Issue 2 (ALL) 18/05/23
