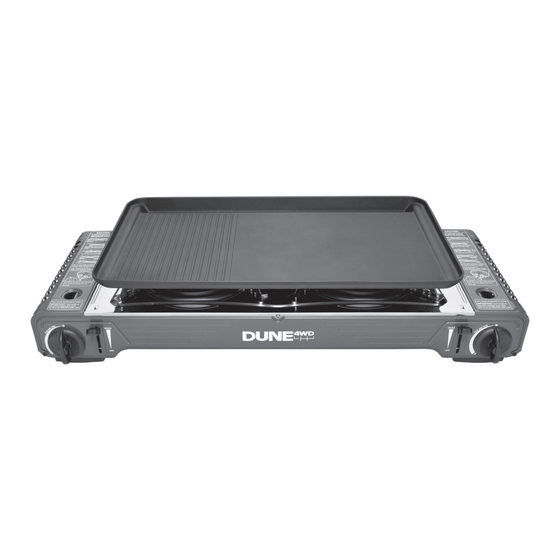

DOUBLE BURNER BUTANE STOVE
DOUBLE BURNER BUTANE STOVE WITH HOTPLATE
WITH HOTPLATE
OPERATING INSTRUCTIONS
WARNING: FOR OUTDOOR USE ONLY
•
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death. DO NOT modify this appliance.
•
WARNING: Accessible parts may be very hot. Keep young children away at all times.
•
Do not move the appliance during use.
•
Important. Read these instructions for use carefully.
•
Familiarise yourself with the appliance before connecting it to it's gas cartridge. Keep these
instructions for future reference. ONLY USE IN WELL-VENTILATED AREAS
AN2240SP
AN2240SP-2016-10-07-V3
AN2240SP-2016-10-07-V3
AGA
approval
No: 8630
Australian Gas Association
Advertisement
Table of Contents
Related Manuals for Dune 4WD AN2240SP
Summary of Contents for Dune 4WD AN2240SP
- Page 1 OPERATING INSTRUCTIONS approval No: 8630 Australian Gas Association WARNING: FOR OUTDOOR USE ONLY AN2240SP • Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. DO NOT modify this appliance. • WARNING: Accessible parts may be very hot. Keep young children away at all times.
- Page 2 Open the cartridge cover and insert the gas cartridge. Make sure that the cartridge slot fits into the cartridge lever guide on the valve inside the stove. (Caution: Use only approved butane gas cartridge UL147B or EN417) AN2240SP-2016-10-07-V3 DOUBLE BURNER BUTANE STOVE WITH HOTPLATE...
-
Page 3: Heat Control
Turn the control knob to the OFF position. Confirm that the flame is completely extinguished. LOCK Raise the cartridge lever to the UNLOCK position, and take out the gas cartridge when UNLOCK the stove is not in use. LOCK AN2240SP-2016-10-07-V3 DOUBLE BURNER BUTANE STOVE WITH HOTPLATE... - Page 4 Do not use this appliance if it is leaking, damaged or does not operate properly. Do not try to detect leaks using a flame. This appliance must only be serviced by an authorised person. Do not modify this appliance. AN2240SP-2016-10-07-V3 DOUBLE BURNER BUTANE STOVE WITH HOTPLATE...
- Page 5 It may return back to the LOCK LOCK original shape. After each use, clean food residue from the cooking plate with a non-scratch type sponge to prevent corrosive damage to the cooking surface. AN2240SP-2016-10-07-V3 DOUBLE BURNER BUTANE STOVE WITH HOTPLATE...
-
Page 6: Abnormal Operation
Pan support and drip pan: After washing, wipe with a dry cloth. Burner: Clean the burner top and the burner ports with a hard brush making sure that all food particles are removed from the burner ports. AN2240SP-2016-10-07-V3 DOUBLE BURNER BUTANE STOVE WITH HOTPLATE... -
Page 7: Troubleshooting
Set spark point to 2mm spark point away from burner be used until it has been inspected and repaired by a suitably qualified person. SPECIFICATIONS Model No. AN2240SP Ignition Method Piezo-Electric Dimensions 678mm (W) x 285mm (D) x 128mm (H) Weight 3.3kg... - Page 8 Warranty excludes consumable replacement/serviceable parts. This warranty is provided by Anaconda Group Pty Ltd (ABN 53 955 173 782). Level Six 111 Cecil Street South Melbourne VIC 3205 www.anaconda.com.au Ph: 1300 558 990 AN2240SP-2016-10-07-V3 DOUBLE BURNER BUTANE STOVE WITH HOTPLATE...
