Table products unique in versatility and function, designed to meet your needs. SAFETY Concerned for a safe working and treatment environment, Lloyd Table Company asks that you follow the safe- ty tips below. Be aware of Caution and Warning labels posted throughout the table before operating any functions.
Page 5
MAINTENANCE The following steps should be performed on a regular basis to maintain your Lloyd table in a smooth operating condition and to assure its long life and top quality appearance. An initial inspection and periodic future inspections should be made to insure that nuts and bolts have not loosened in shipping or during daily operations.
The following sections provide explanations on the operation of your Lloyd table. All references to right and left, will be in relationship to your view, as you face table from the foot end. All references to the front will refer to the head end of the table. Those to the rear will refer to the foot end.
Page 7
Deluxe Headpiece #5 Center Bar #6 Paper Cutting Bar #4 Paper Hanger #1 Tilting Lock Handle #3 Face Opening #2 Elevation Knob Lever To Raise the tilting feature on the Deluxe Headpiece: Lift on the bottom front edges of the cushion Release at the desired height, the cushion will automatically lock into position.
Page 8
Deluxe Headpiece To Elevate the Head Cushion The head cushion is assisted by a gas shock in raising the cushion. With a hand supporting the head cushion, turn the Elevation Knob (No. 2) on either side of the table upward to unlock. When the desired height is determined simply release the Elevation Knob (No.
Page 9
Deluxe Head with Drops #8 Tension Knob #7 Cocking Handle #9 Selector Knob (Right Side of Table) Operating the Straight / Toggle Drop: CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE ADJUSTING A PATIENT. NOTE - DROP SHOULD BE IN DOWN / DEACTIVATED POSITION BEFORE MOVING SELECTOR KNOB (NO.
Page 10
Optional - Total Dimension Flexion Head Right Side #8 Flexion Assist Handle #1 Selector Knob #7 Face Opening Lever #2 Cocking Handle #6 Rotation Release Knob #3 Lateral Side Bending Release Knob #5 Flexion / Tilt Knob #4 Traction Release Knob Forward &...
Page 11
Optional - Total Dimension Flexion Head WARNING: THE FOLLOWING CERVICAL OPERATIONS ARE ONLY TO BE OPERATED BY A PROFESSIONAL PRACTITIONER, EDUCATED IN THE PROCEDURE OF FLEXION-DISTRACTION AND TRACTION, ON THE SPINE. Lateral Side Bending To unlock the Lateral Side Bending Feature rotate the Lateral Side Bending Release Knob (No.
Chest Cushion The chest cushion is designed to accommodate patients with large or small abdomen and has the versatility of being a stationary or floating cushion. #2 Spring Breakaway #1 Adjustable Chest Knob Handle Standard - Adjustable Tilting Chest Height Adjustment of Chest Cushion Lift the rear corners of the cushion.
Chest Cushion - Manual Drops #2 Tension Control Knob 1 Cocking Handle Chest & Lumbar Drop - Manual Cocking the Drop Chest or Lumbar Cushion Pull up on the Cocking Handle (No. 1) to cock the desired drop cushion. Adjust the tension on drop by turning the Tension Control Knob (No. 2) Right side: Clockwise - Decreases Tension Counterclockwise - Increase Tension Left Side:...
Page 14
Automatic Cocking Drops #1 Selector Knob To Cock the Dorsal (Chest Cushion) Drop: Rotate the Selector Knob (No. 1) towards the head of table to select the Dorsal (Chest Cushion) drop. Step on the white strip to activate the auto cocking drop. CAUTION: THE DROP CUSHION TENSION SHOULD BE CHECKED AND TESTED BEFORE ADJUSTING PATIENT.
Pelvic Height Adjustment #1 Adjustable Pelvic Lock Handle Pelvic Height Adjustment Raising - Lift the cushion by it’s front corners to the desired height. The Cushion will lock in place once released. Lowering - Support the cushion by slightly lifting up on a front corner. Next, lift the Adjustable Pelvic Lock Handle (No.
Page 16
Optional - Electronic Height Adjustment (EHA) #3 Mid - Level #1 Auto / Manual On/Off Switch Button # 2 Green Indicator Light To Activate Electronic Height Adjustment: Push the Auto / Manual Button(No. 1) Button to activate EHA. Once the Auto / Manual Button (No.
Electronic Height Adjustment (EHA) #1 UpperLevel #2 Mid-Level #3 Lower Level Adjustment Adjustment Adjustment To Set Programmed Heights for EHA: To Set Upper Level: Loosen Nut on the Upper Level Adjustment (No. 1) and slide towards the head end of table to increase height.
Ankle Rest #1 Horizontal Lock Knob #2 Vertical Lock Lever Ankle Rest Horizontal Adjustment To Extend or Retract the Ankle Rest Loosen the Horizontal Lock Knob (No. 1) and slide the cushion to the desired length. Once the cushion is adjusted, tighten the lock knob. Optional Vertical Ankle Rest To Raise the Ankle Rest Simply lift on the sides of the Ankle Rest Cushion.

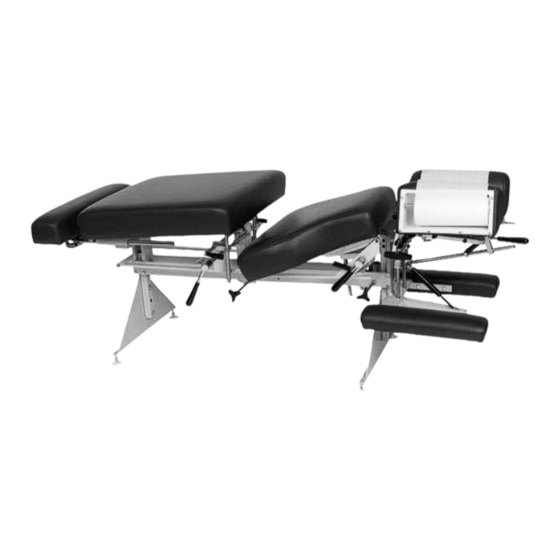

402 ELEVATION BASE FRAME ASS’Y ITEM PART N0. DESCRIPTION QTY. 54270 BASE FRAME ASS’Y 54278 TIE BAR 54145 CONNECTION PIN, ½ RD X 4 1/8 22888 BUSHING CAP 54155 ROCKER ARM (FRONT) 54303 ROCKER ARM (BACK) 20510 HEX HD BOLT, ½-20UNF X 1 ¼...
TILT HEAD CUSHION ASS’Y ITEM PART N0. DESCRIPTION QTY. 40654 HEAD CUSHION 57936 CENTER ROD 56381 FRONT BRACE 56152 ADJUSTMENT ROD 24020 HANDLE 22050 RD. HEAD SCREW, ¼-20 UNC X 2 ½ 56396 BACK BRACE 20003 SOCKET HD. BOLT, ¼-20 UNC X ½ 20023 Bol, Hex HD, 1/4-20 X 1 1/4 22675...
DELUXE HEAD CUSHION ASS’Y NOTE: ITEM #20 IS USED WITH THE STRAIGHT DROP HEAD CUSHION ITEM PART NO. DESCRIPTION 40110 CUSHION, HEAD - LEFT HAND 40130 CUSHION, HEAD - RIGHT HAND 29999 HEADREST PAPER 30400 SLIDE BLOCK, FRONT 22009 OVAL HD. MACHINE SCREW, #10-24 NC X 1 1/2 57174 SPACER, 3/16 ID X ½...
TILT PELVIC ASSEMBLY ITEM PART N0. DESCRIPTION QTY. 40284 PELVIC CUSHION 54213 REAR HINGE BRACKET 20022 BOLT, HEX. HEAD, ¼-20UNC X 1 ¼ 57735 EYE-ROD, 9/16 X 7 13/16 (groove) 57738 EYE-ROD, 9/16 X 7 13/16 22110 SET SCREW, ¼-20UN X ¼ 22935 SET COLLAR, 9/16 ID X 1.00 OD 24286...
STRAIGHT DROP HEAD ASSEMBLY Items 49, 50, 51, 52, 53 and 54 are required only for Auto Cocking Cervical Tables. Page 31...
Page 35
STRAIGHT DROP HEAD ASSEMBLY ITEM PART N0. DESCRIPTION QTY. 56011 FASTENER PLATE ASS’Y, ’89 STRAIGHT DROP HD 57201 OUTSIDE DROP FRAME ASS’Y, ’89 FM HEAD 55850 TEE WEDGE ASSEMBLY 22017 SCREW, MACHINE, FLAT HEAD, ¼ - 20 UNC X ½ 55929 CENTER ROD ASSEMBLY 21616...
FORWARD MOTION HEAD FRAME NOTE: ITEMS 28, 33, 34, 35, 36, 37, 38 & 40 ARE USED ONLY FOR TABLES WITH AUTO COCKING CERVICAL. Page 33...
Page 37
FORWARD MOTION HEAD FRAME ITEM PART NO. DESCRIPTION 56059 OUTSIDE DROP FRAME ASS’Y 57201 OUTSIDE HEAD FRAME ASS’Y 55850 TEE WEDGE 57221 ADJUSTMENT ARM, HEAD CUSHION 57175 LINKAGE BAR, 1/8 X 1/2 X 3 9/16 21995 PAN HD. MACHINE SCREW, #10-24 NC X 1/2 22860 BUSHING, 3/16 ID X 1/4 OD 30722...
