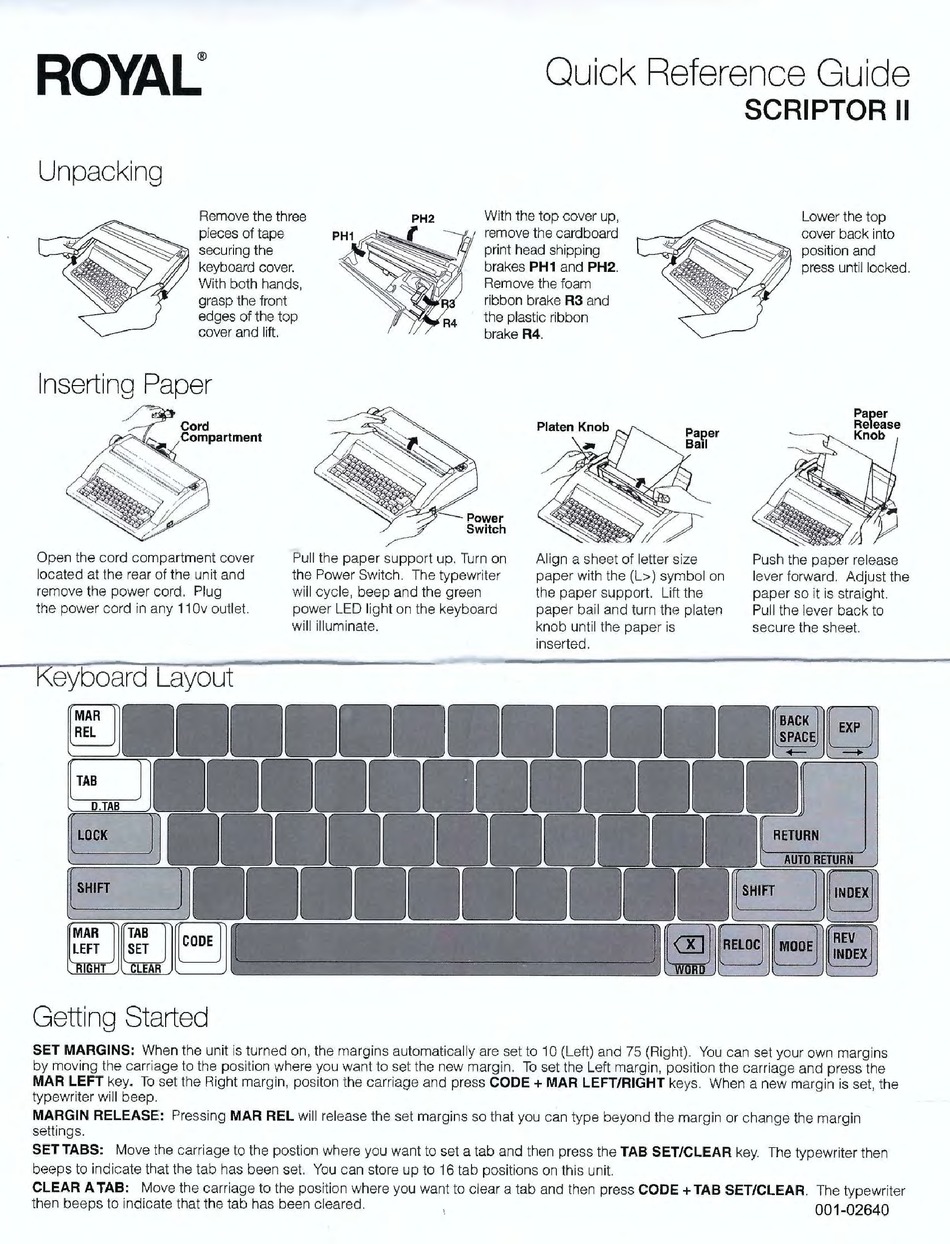

ROYAL®
Quick
Reference Guide
SCRIPTOR II
Unpacking
Remove the three
pieces
of tape
securing
the
keyboard cover.
With
both hands,
grasp
the front
edges of the
top
cover and
lift.
Inserting Paper
PH2
With
the
top cover up,
remove
the
cardboard
print
head
shipping
brakes
PH1
and
PH2.
Remove
the foam
ribbon
brake
R3
and
the
plastic ribbon
brake
R4.
,d,
---
Power
Switch
Open
the cord
compartment
cover
located at
the
rear of the
unit
and
remove the
power
cord.
Plug
the power cord in any
11
0v outlet.
Pull
the paper
support up.
Turn
on
the Power
Switch.
The typewriter
will cycle,
beep and
the
green
power
LED light on the
keyboard
will illuminate.
Align
a sheet of
letter
size
paper
with
the
(L>) symbol on
the
paper
support.
Lift
the
paper
bail and turn
the
platen
knob
unti
l
the
paper
is
inserted.
-
Reyboard
Layout
~
SHIFT
I
•
, -
\>-,
,.._
,;.,
lf;
ii
'
~
-
•
·-~
- -
-
-._-
-
- :
~
: .. ! - ~ -
- - - -.
~~
Getting Started
Lower
the
top
cover
back
into
position and
press
until
locked.
Push the paper release
lever
forward. Adjust the
paper so
it
is straight.
Pull
the lever back to
secure
the
sheet.
SET
MARGINS:
When the unit is
turned on,
the margins
automalically are set
to
10 (Left) and
75
(Right).
You
can set your own
marg ins
by moving
the carriage
to
the position where
you
want
to set
the new margin.
To
set the Left margin, position
the
carriage and
press
the
MAR LEFT
key. To set
the
Right
margin,
positon
the
carriage and
press
CODE+ MAR LEFT/RIGHT
keys. When a new
margin is
set, the
typewriter will beep.
MARGIN
RELEASE:
Pressing
MAR REL
wil
l
release
the
set
margins so
that
you
can type beyond the margin
or
change
the
margin
settings.
SET TABS:
Move the
carriage
to
the postion
where
you want to
set
a
tab and
then
press the
TAB SET/CLEAR
key.
The
typewriter
then
beeps
to indicate that the
tab has been set.
You
can store up to 16 tab positions on
this
unit.
CLEAR A TAB:
Move
the carriage
to the position
where you
want
to
c
lear a tab and
then
press
CODE+ TAB
SET/CLEAR.
The typewriter
then
beeps
to indicate
that
the tab
has
been
cleared.
001-02640
