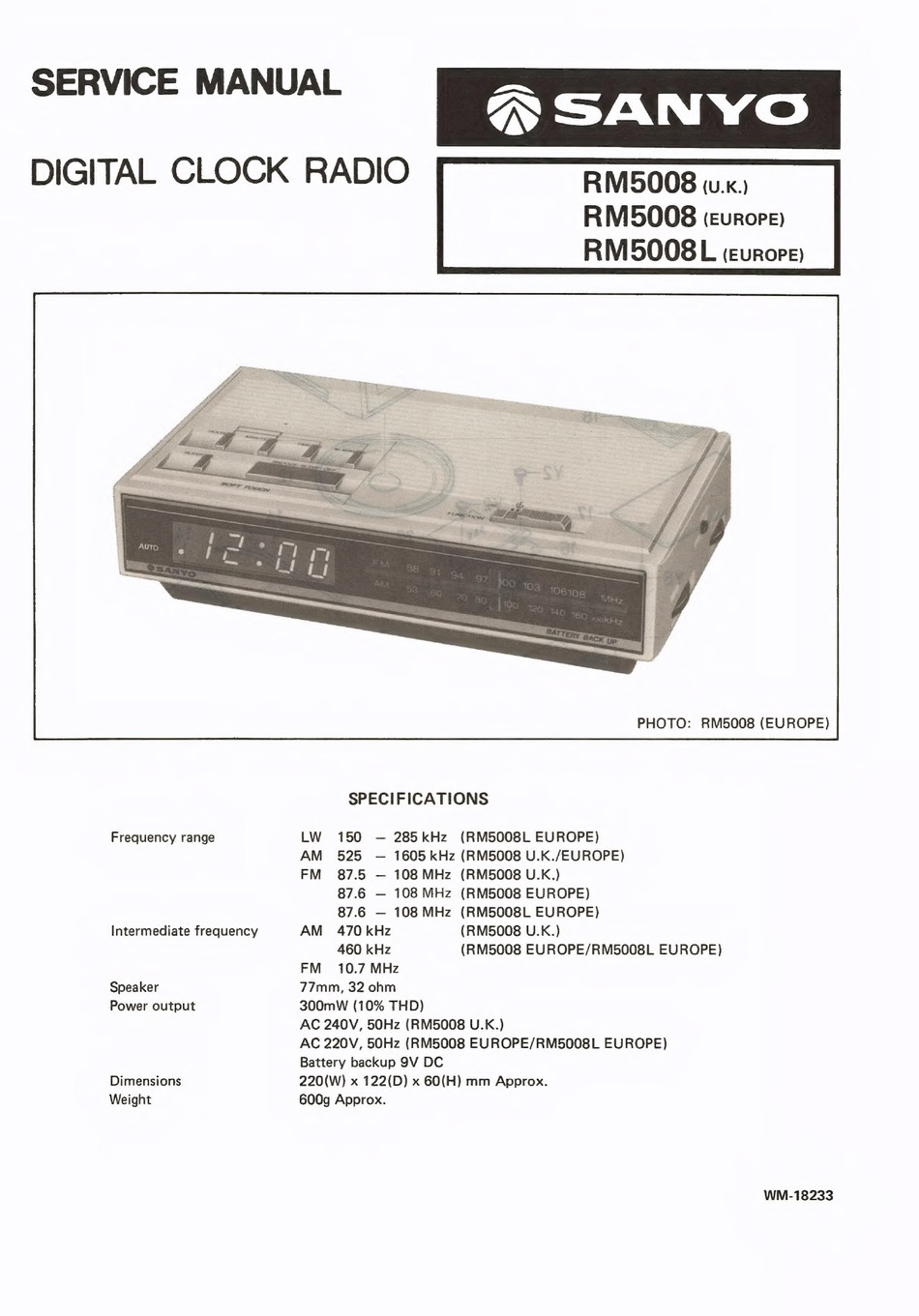

Sanyo RM5008 Service Manual

SERVICE MANUAL
RM5008 (europe)
RM5008 L (eurore)
PHOTO: RM5008 (EUROPE)
SPECIFICATIONS
Frequency range LW 150 — 285kHz (RM5008L EUROPE)
AM 525 — 1605 kHz (RM5008 U.K./EUROPE)
FM 87.5 — 108 MHz (RM5008 U.K.)
87.6 — 108 MHz (RM5008 EUROPE)
87.6 — 108 MHz (RM5008L EUROPE)
Intermediate frequency AM 470 kHz (RM5008 U.K.)
460 kHz (RM5008 EUROPE/RM5008L EUROPE)
FM 10.7 MHz
Speaker 77mm, 32 ohm
Power output 300mW (10% THD)
AC 240V, 50Hz (RM5008 U.K.)
AC 220V, 50Hz (RM5008 EUROPE/RM5008L EUROPE)
Battery backup 9V DC
Dimensions 220(W) x 122(D) x 60(H) mm Approx.
Weight 600g Approx.
WM-18233
