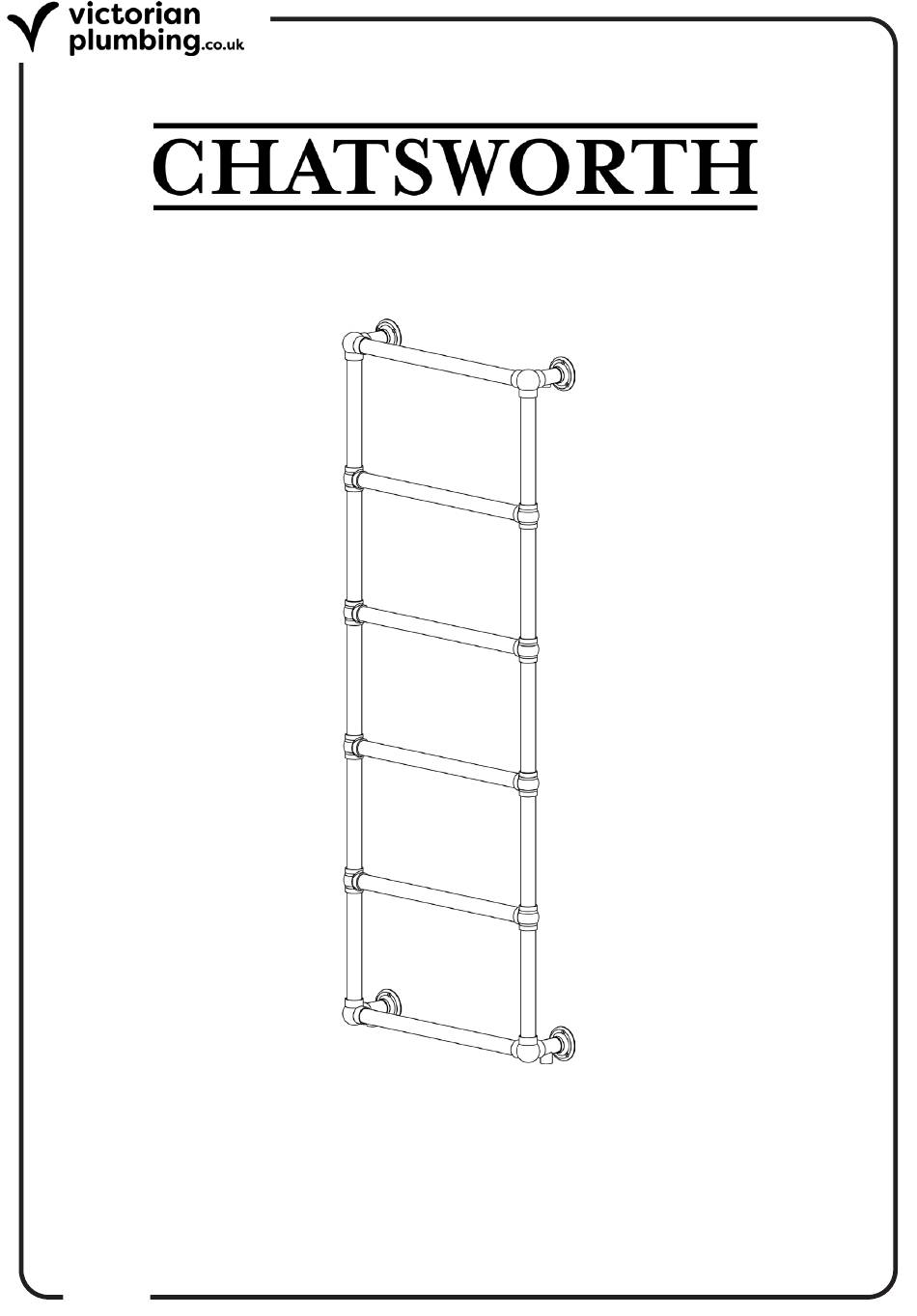

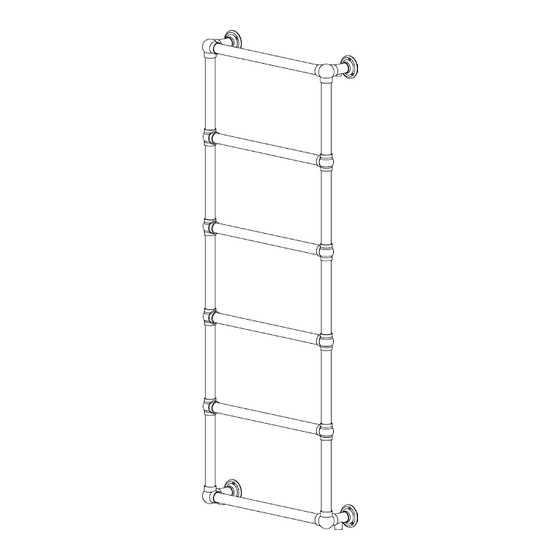

- Page 1 Wall Mounted Towel Rail Fitting Instructions Please follow them carefully and leave this manual with end user V3.11.23...
- Page 2 Check & Inspect Here at Victorian Plumbing, we pride ourselves on selecting products from reputable manufacturers who manufacture to our exacting standards and quality control measures. All our products are well packaged and should reach you in pristine condition.
- Page 3 Tools required for installation (not supplied) Pencil Tape Measure Power Drill Spirit Level Flat Head Adjustable PTFE Tape Screwdriver Screwdriver Wrench Please check you have all the items below: Air vent x1 Screws x12 Rawl Plug x12 V3.11.23...
- Page 4 Step 1: Position the radiator on your chosen wall and using a spirit level check that the radiator is level both vertically and horizontally. Using a pencil, mark the top & bottom fixing brackets ready for drilling & securing. Drain down the heating system in preparation to connect the radiator.
- Page 5 Step 2: Drill the wall using an appropriately sized drill bit and insert the rawl plugs. Secure the top and bottom fixing brackets using the screws provided. Step 3: Wrap the threaded valve tails with P.T.F.E tape and inset the tails into the radiator tapping’s.
- Page 6 Step 4: Install both the flow and return pipework. Step 5: Screw the vent plug into the radiator and tighten using an adjustable wrench. Refill the heating system and bleed the radiator of any air using a screwdriver/vent key. Step 6: Switch on the central heating, bring the radiator up to full heat and check all joints for leaks.
- Page 7 After installation • Use a screwdriver/vent key to open the air vent, open the valve and let the water rush into radiator. • Check all connections for leaks. • Once water overflows from the air vent, the radiator is fully purged of air. •...
