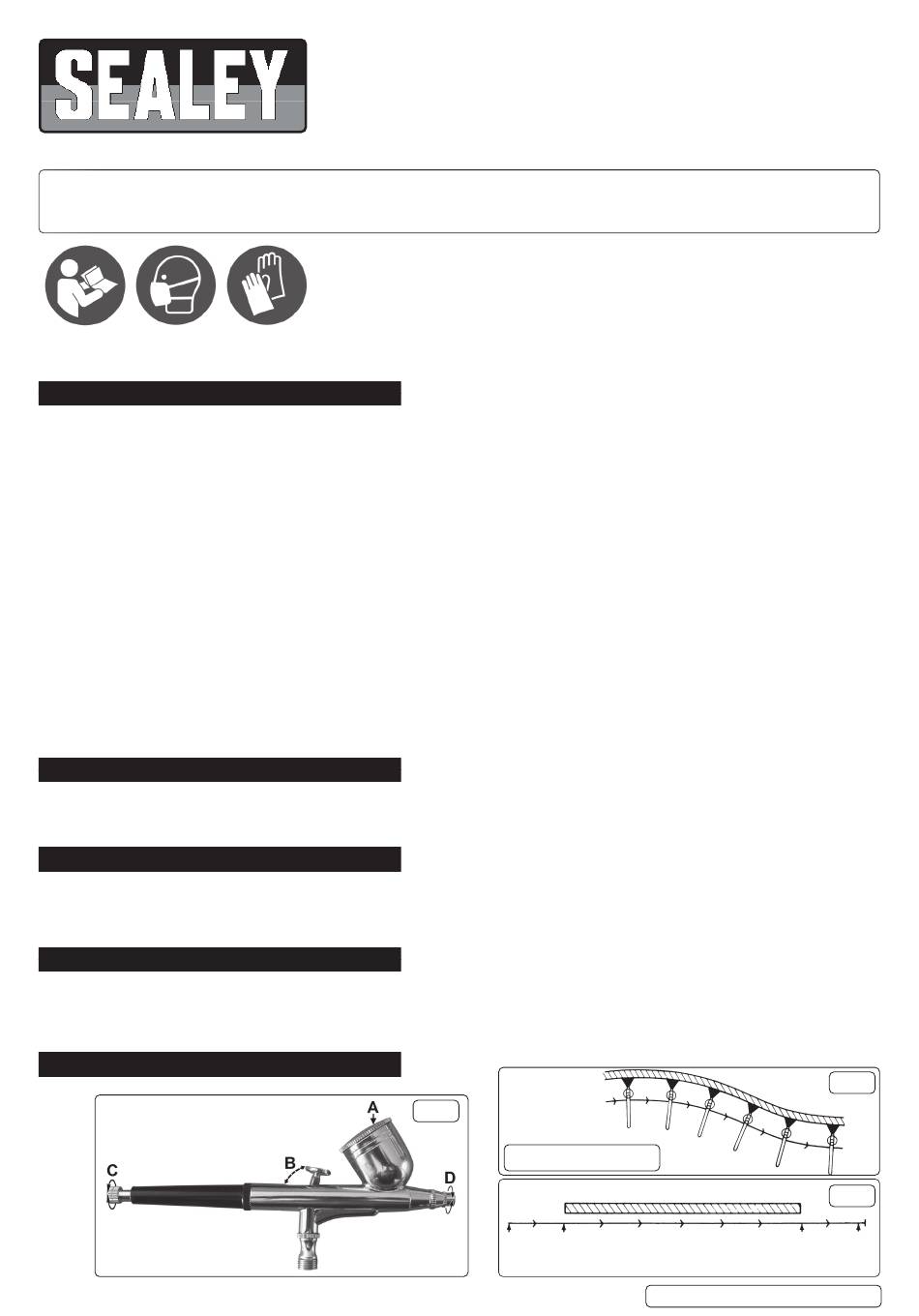

Sealey AB9321 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear a mask Wear protective
instruction
manual
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
‰
WARNING! Air brushes produce a fine mist of paint and solvents which may be harmful by inhalation.
‰
Always wear suitable protective breathing equipment which can be obtained from your local Sealey Dealer.
9
For a better understanding of the risks involved with any particular paint or solvent read the warnings on the containers and follow
9
the advice given. Also take measures to protect the eyes and skin from contact with paint and solvents. A full range of personal safety
equipment is available from your Sealey stockist.
DO NOT operate the air brush near other people unless they are wearing the same protective equipment.
8
DO NOT eat or drink when using the air brush.
8
DO NOT allow smoking or open flame in the work area.
8
Ensure that the air brush and accessories are in a clean, sound condition and good working order. Take action for immediate repair or
9
replacement of damaged parts. Use recommended parts only. The use of unauthorised parts may be dangerous and will invalidate the
warranty.
Ensure the air brush supply hose is not tangled, twisted or pinched.
9
DO NOT use air brush or accessories if damaged.
8
DO NOT operate air brush while under the influence of drugs, alcohol or intoxicating medication, or if fatigued.
8
DO NOT direct spray against yourself, other persons or animals or electrical equipment.
8
DO NOT use the air brush for a task it is not designed to perform.
8
Always ensure adequate ventilation in the work area.
9
Always disconnect from the air supply before dismantling the air brush for cleaning and maintenance.
9
DO NOT leave the air brush connected to the air supply when unattended.
8
2. INTRODUCTION

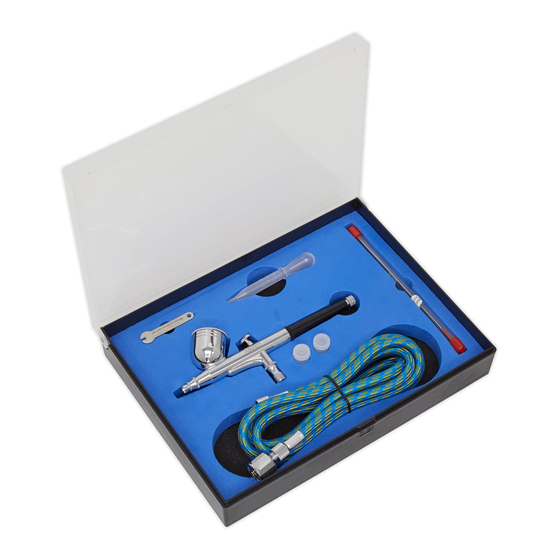

Metal body construction with built-in gravity feed pot. Double-action trigger providing precision control of paint flow. Supplied fitted with
0.3mm nozzle. Includes alternative 0.2 and 0.5mm set-ups, 1.8m small-bore hose, adjustment spanner and pipette. Supplied in storage
case.
3. ASSEMBLY
3.1. Screw one end of the air hose onto the air hose connection underneath the air brush trigger and the other end onto the air supply.
3.2. To use a compressor such as the Sealey Model No: AB900 use the adaptor supplied with the compressor to connect the air hose.
3.3. To use the air brush with other types of compressors use the 1/4" reduction nipple supplied.
NOTE: The maximum air supply to the air brush should never exceed 50psi. Normal operating pressure is approx 30psi.
4. SPECIFICATION
Model No: .......................................................... AB9321
Cup Capacity: ........................................................... 7cc
Nozzle Size(s): ....................................... 0.2, 0.3, 0.5mm
Working Pressure: ............................................. 15-50psi
5. OPERATION
© Jack Sealey Limited
GRAVITY FEED AIR BRUSH KIT
MODEL NO:
gloves
Fig.1
Original Language Version
AB9321
KEEP AIR BRUSH
PARALLEL TO SURFACE
START PRESS
MOTION
TRIGGER
HERE HERE
SURFACE
KEEP MOTION RELEASE
TRIGGER
STEADY AND SPRAY
HERE
AB9321 Issue 3 (ALL)
Fig.2
Fig.3
FOLLOW
THROUGH
MOTION
06/07/23
