Summary of Contents for Sharp InGlass PN-LA862

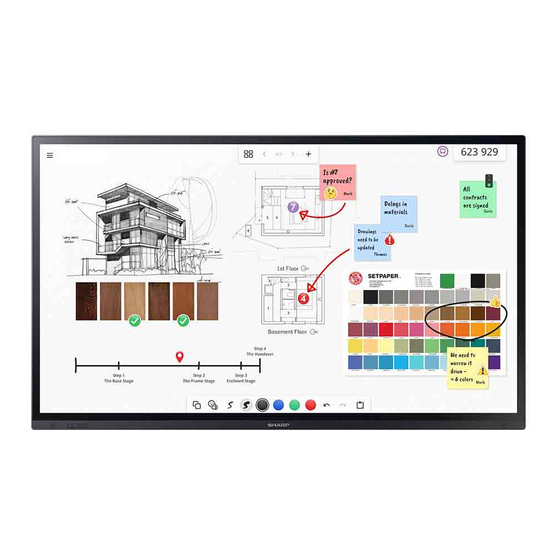

- Page 1 PN-LA862 PN-LA752 PN-LA652 INTERACTIVE DISPLAY OPERATION MANUAL...
- Page 2 Batteries are collected at points of sale. Return is free of charge. If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP dealer who will inform you about take-back. You might be charged for the costs arising from take-back. Small equipment (and small quantities) might be taken back by your local collection facility.
-
Page 3: Important Information
IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within CAUTION a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” RISK OF ELECTRIC within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric... -
Page 4: Dear Sharp Customer
DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. - Page 5 SAFETY PRECAUTIONS (Continued) 19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below: •...
-
Page 6: Tips And Safety Instructions
TIPS AND SAFETY INSTRUCTIONS The Power Cord - The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there - Use only the power cord supplied with the monitor. may be minute points on the screen where pixels never light - Do not damage the power cord nor place heavy objects on or are permanently lit. -
Page 7: Mounting Precautions
MOUNTING PRECAUTIONS • For SHARP dealers or service engineers, please confirm • Be careful of high temperatures in the surrounding area. “Mounting Precautions (For SHARP dealers and service If it is difficult to provide sufficient space for any reason engineers)”. (See page 54.) such as the installation of the monitor inside a housing or •... - Page 8 MOUNTING PRECAUTIONS (Continued) • Use the cover SHARP logo when you install the monitor in portrait orientation. Cover SHARP logo Flat installation • When using the monitor laying flat on a surface (when the monitor is tilted more than 20 degrees upward from...
-
Page 9: Table Of Contents
Intellectual Property Rights and Other Matters ..53 Remote control operation range .........16 Mounting Precautions Removing the Handles ..........17 (For SHARP dealers and service engineers) ....54 Mounting a web camera ..........17 Turning Power On/Off ............18 Turning on the main power.........18 Turning power on ............18 Turning power off ............19... -
Page 10: Supplied Components
Setup Manual: 1 Cover SHARP logo: 1 Remote control unit: 1 Touch pen: 2 Place this sticker onto the SHARP logo to Cable clamp: 3 Camera mount (small): 1 cover the logo. Camera screw (inch thread): 1 ... -
Page 11: Part Names
*1 This port is for “CLONE SETING” and future Caution software upgrades. Imports or exports the monitor settings via • Consult your SHARP dealer for attachment/detachment of the USB flash drive when selecting “CLONE optional parts. SETTING”. (See page 35.) *2 Factory setting. -
Page 12: Remote Control Unit
Part Names nRemote control unit 1. Signal transmitter 2. Operation buttons (See page 23.) -
Page 13: Connecting Peripheral Equipment
Connecting Peripheral Equipment nRear view 11 5 It is convenient to use the terminals for separate purposes; Caution For example, using the terminal on the bottom of the monitor • Be sure to turn off the main power switch and disconnect to connect a fixed computer and using the terminal on the side the plug from the power outlet before connecting/ of the monitor to connect a mobile computer. - Page 14 RS-232 straight cable between these terminals and the computer. For details, please refer to the manual on the following website. https://business.sharpusa.com/product-downloads (US) https://www.sharp.eu/download-centre (Europe/Asia/Pacific) 9. LAN terminal • You can connect to a network by using a commercially available LAN cable.
-
Page 15: Connecting The Power Cord
Connecting the Power Cord PN-LA652 Power cord Caution (Supplied) AC input terminal • Use only the power cord supplied with the monitor. • When connecting the power cord to the product’s AC input terminal, make sure the connector is fully and firmly inserted. -
Page 16: Preparing The Remote Control Unit
Preparing the Remote Control Unit Installing the batteries Remote control operation range 1. Place your finger on the part marked with the ▲, and The operation range of the remote control unit is approx. 16.4 feet (5 m) at an angle of approx 10° from the center to the top/ then pull the cover off. -
Page 17: Removing The Handles
Removing the Handles The handles can be removed. Handle Handle screws Caution • The removable handles and handle screws are for use with this monitor. Do not use them for any other devices. • To attach handles, be sure to use the handles and handle screws which were removed from this monitor. •... -
Page 18: Turning Power On/Off
Turning Power On/Off Caution TIPS • Turn on the monitor first before turning on the computer or • When the main power switch is off, the monitor cannot be playback device. turned on. • When switching the main power switch or the POWER •... -
Page 19: Turning Power Off
Turning Power On/Off Turning power off 1. Press the POWER button or MONITOR OFF button. The power is turned off. (Standby state) POWER button /Power LED When the option board has started up and “AUTO SHUTDOWN” is set to “ON” in “POWER SETTING” of “OPTION SLOT”, the option board is also turned off. -
Page 20: Touch Pen
Touch Pen Pen tip (thick) Pen tip (thin) TIPS • Incorrect operation may result if your finger is too close to the tip of the pen. • When multiple touch pens are used, touch positions and touch pen information (color, thickness, etc.) may become interchanged, and lines may break. -
Page 21: Touch Action
Touch action Touch action Cautionary points • Do not use the touch pen for any purpose other than touch Touch actions that can be used with this monitor differ panel operation. according to operating system and application. The functions • Do not press hard on the pen tip. of touch actions are also different. -
Page 22: Basic Operation
Basic Operation Using the touch menu (2) Volume adjustment Adjusts the volume. You can touch the screen to change input mode, volume, and other settings. Increases the volume. 1. Touch the TOUCH MENU button. Decreases the volume. Mutes the sound. Touch again to return the sound to the original volume. -
Page 23: Using The Remote Control Unit
Basic Operation Using the remote control unit 4. MODE (Picture mode selection) Each time you press this button, the picture mode changes in the following order: STD (Standard) → VIVID → sRGB → HIGH BRIGHT → CONFERENCING → SIGNAGE → CUSTOM →... - Page 24 Basic Operation 6. INFORMATION 10. Buttons for operating the HDMI-connected device Displays monitor information. When “HDMI CEC LINK” is set to “AUTO”, use these buttons to operate the device connected through the HDMI interface. INFORMATION1 INPUT MODE HDMI1 11. ID SET SIZE WIDE PICTURE MODE...
- Page 25 Basic Operation nSwitching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. WIDE Displays image so it fills the entire screen. ZOOM The image is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be cut off.
-
Page 26: Menu Items
Menu Items Displaying the menu screen TIPS • The menu will differ depending on the input mode. Video and audio adjustment and settings of various functions • The menu screen will close automatically if no operation is are enabled. This section describes how to use the menu performed for about 15 seconds. -
Page 27: Configuring Settings In The Touch Menu
Menu Items Configuring settings in the touch menu 4. Touch the icon in “CONTRAST” to adjust the setting. You can configure the following settings from the touch menu. For items that show the >> icon, configure the setting in the You can configure the settings by touch operation. -
Page 28: Menu Item Details
Menu Items Menu item details The menu will differ depending on the input mode. The settings below are recommended settings and conforms to the “Normal Configuration” as defined in the EcoDesign Regulation (2019/2021). • POWER SAVE MODE: ON • LAN PORT: OFF •... - Page 29 Menu Items ADVANCED Reduce the image noise. Setting a higher level reduces more noise. However, it may cause blurring on an image. RGB INPUT RANGE Sets the RGB input signal range. Use “AUTO” normally. If the RGB input signal range cannot be set appropriately even when using “AUTO”, set according to the image. When the setting is different, images will be displayed with washed out blacks and compressed gradients.
- Page 30 Menu Items RESET Resets the values of the PICTURE menu items to the factory default settings. For the settings saved for “PICTURE MODE”, the settings saved for the currently selected “PICTURE MODE” are initialised. Select “ON” and then press the ENTER button. nAUDIO AUDIO MODE Preset values for “VOLUME”, “TREBLE,”...
- Page 31 Menu Items CONFIGURE QUAD-SCREEN QUAD-SCREEN MODE Set how the screens are displayed. OFF ... Display single screen. ON ..... Display 4 screens simultaneously. SETTING INITIAL SCREEN Set the input mode displayed in each of the 4 screens. When “AUTO” is selected, input modes that have input signals are displayed in the order set in “PRIORITY: AUTO INPUT SEL.”.
- Page 32 Menu Items nADMIN To change the settings on ADMIN menu, it is necessary to enter your password. ADMIN PASSWORD Please enter the following password when you turn on the power for the first time. ADMIN PASSWORD : ADMIN Sets a password. Up to 8 characters can be used. SYSTEM LANGUAGE Sets the display language for the menu screen.
- Page 33 Menu Items INPUT INPUT MODE NAME For each terminal, you can change the input mode name that is displayed during input mode selection or display. The names of INPUT1 to INPUT6* can be changed. (*Factory default.) Select the input mode name (INPUT1 to INPUT6) that you want to change, and press the ENTER button. If the input mode name can be changed, “EDIT: [ENTER]”...
- Page 34 Menu Items ADVANCED POWER MANAGEMENT “POWER MANAGEMENT” determines whether or not to switch modes from no signal to the input signal waiting state. When “POWER MANAGEMENT” is set to “ON”, the monitor enters the “Input signal waiting state” when there is no signal. (See page 18.) POWER SAVE MODE When set to “OFF”, startup time from standby state is reduced.
- Page 35 Menu Items OPTION SLOT (with optional board installed) POWER OPERATION (OPTION) POWER BUTTON ....Turns the option board (intel SDM) power on/off. FORCE SHUTDOWN ..The option board (intel SDM) will be forced to power off. RESET ......... The option board (intel SDM) will be reset. POWER SETTING Sets whether or not to link the power supply between this monitor and the option board (intel SDM).
- Page 36 Menu Items nDual-screen display nQuad-screen display You can display two screens simultaneously. You can display 4 screens simultaneously. Set this function with “PIP MODES” of “PIP/PbyP” in the Landscape orientation Portrait orientation MULTI/PIP menu. Or, press the PIP/PbyP button, and select the mode. Position 1 Position 2 (1920×1080)
- Page 37 Menu Items nSCHEDULE TIPS You can set the time to switch the monitor on and off. • You might infringe on a copyright of the author which is protected by copyright law when you display the images of Set this function with “SCHEDULE” in the ADMIN menu. (See the computer screen and television/VCR simultaneously for page 32.) profit-making or to show the image to the public.
- Page 38 Menu Items nAbout remote control numbers (6) BRIGHT Sets the brightness when changing the screen brightness If there is another monitor nearby, you can change the remote at a specified time. When “AMBIENT LIGHT SENSING” is control number to prevent the other monitor from being enabled, “AMBIENT LIGHT SENSING”...
-
Page 39: Controlling The Monitor With A Computer (Lan)
Controlling the Monitor with a computer (LAN) Settings to connect to a LAN Your monitor can be connected to a LAN allowing you to control it from a computer on the LAN. The connection requires a commercially available LAN cable Set the monitor’s IP address and subnet mask to match the (UTP cable, Category 5). - Page 40 Controlling the Monitor with a computer (LAN) nTo set from a computer 7. Temporarily change the IP address and subnet mask. To access the monitor as it is shipped from the factory, set When the monitor is connected to a computer, LAN settings as follows.
-
Page 41: Controlling With A Computer
Controlling the Monitor with a computer (LAN) Controlling with a computer TIPS • The web browser screen is basically explained on the n Basic operation screen when logged in with ADMIN. You use the web browser on a computer on the LAN to •... - Page 42 Controlling the Monitor with a computer (LAN) nADMIN-DATE/TIME SETTING nNETWORK-COMMAND Set the date and time. This screen allows you to specify the command-related settings. COMMAND SETTING DATE/TIME Set the mode to be used in “COMMAND SETTING”. When Set the date and time. the mode is set, the items that can be set in “USER NAME/ FORMAT PASSWORD”...
- Page 43 Controlling the Monitor with a computer (LAN) nNETWORK-ACCOUNT nNETWORK-GENERAL This screen allows you to configure USER NAME and This screen allows you to specify the MONITOR NAME, PASSWORD. INSTALLATION INFORMATION (NAME/LOCATION) and AUTO LOGOUT time. USER NAME / PASSWORD MONITOR NAME Sets up a user name and password to restrict access to this Specify a name for this monitor as it should appear on the monitor.
- Page 44 Controlling the Monitor with a computer (LAN) nSECURITY-FILTER SETTING nNETWORK-PROXY This screen allows you to specify the PROXY-related settings. This screen allows you to configure the FILTER SETTING, IP ADDRESS FILTER SETTING, etc. FILTER SETTING PROXY Toggles whether the entire address filter is enabled or Set this setting if the PROXY needs to be authorised when disabled.
- Page 45 Controlling the Monitor with a computer (LAN) nSECURITY-PORT SETTING nFIRMWARE UPDATE This screen allows you to configure the SERVER PORT Firmware can be updated via the WEBbrowser. setting. The latest FIRMWARE can be obtained by downloading it from the Information Display Downloader. (See page 10.) AUTO UPDATE SEVER PORT Set to perform updates at specified times via the Internet.
-
Page 46: Troubleshooting
Troubleshooting The video from the HDMI input terminal does not appear If you are experiencing any problem with your display, before properly. calling for service, please review the following troubleshooting tips. • Does the HDMI cable support 4K, and is it HDMI standard compliant? The monitor will not work with cables that are There is no picture or sound. - Page 47 • Set the screen size to “Wide”. (See page 25.) inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust. The screen is dark. • When the internal temperature of the monitor rises excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise.
-
Page 48: Specifications
*6 When “POWER SAVE MODE” is set to “ON”. When “POWER SAVE MODE” is set to “OFF”: 1.0 W As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. - Page 49 When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method. SHARP recommends using M8 screws and tighten the screws. Note that screw hole depth of the monitor is 9/16 inch (15 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product.
- Page 50 Specifications nPower management Both your video card and computer must support the same standard in order for the monitor’s power management function to work. DPMS: Display Power Management Signaling Power DPMS Screen Hsync Vsync consumption* XXX W ON STATE Display 560 W 410 W STANDBY...
- Page 51 Specifications nCompatible signal timing (PC) HDMI DisplayPort Screen resolution Vsync USB-C Mode1 Mode2 SST2 SST1 VESA 640 × 480 60Hz 72Hz 75Hz 800 × 600 60Hz 72Hz 75Hz 1024 × 768 60Hz 70Hz 75Hz 1152 × 864 75Hz 1280 × 768 60Hz 1280 ×...
- Page 52 Specifications nCompatible signal timing (AV) HDMI Screen resolution Frequency Mode1 Mode2 4096 × 2160p 24Hz 25Hz 30Hz 50Hz 59.94Hz 60Hz 3840 × 2160p 24Hz 25Hz 30Hz 50Hz 59.94Hz 60Hz 1920 × 1080p 24Hz 50Hz 59.94Hz 60Hz 1920 × 1080i 50Hz 59.94Hz 60Hz 1280 x 720p...
-
Page 53: Intellectual Property Rights And Other Matters
The copyrights for the software components and various relevant documents included with this product that were developed or written by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely distributed software and software components whose copyrights are held by third parties. -
Page 54: Mounting Precautions (For Sharp Dealers And Service Engineers)
Mounting Precautions (For SHARP dealers and service engineers) • When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people. (PN-LA652: at least 3 people.) • Be sure to use a wall-mount bracket designed or designated for mounting the monitor. - Page 55 Mounting Precautions (For SHARP dealers and service engineers) nInstalling the option board For Intel SDM-L, remove the center rail before attaching the option board. You can install the option board that is compatible with Intel Smart Display Module Small (Intel SDM-S) and Intel Smart Display Module Large (Intel SDM-L) specifications.
- Page 56 PN-LA862-LA752-LA652 M EN23E(1)
