APX 5.0-30.0P-S0 High Voltage Battery System
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APX 5.0P-B1 and is the answer not in the manual?

Questions and answers

Related Manuals for Growatt APX 5.0P-B1

Summary of Contents for Growatt APX 5.0P-B1

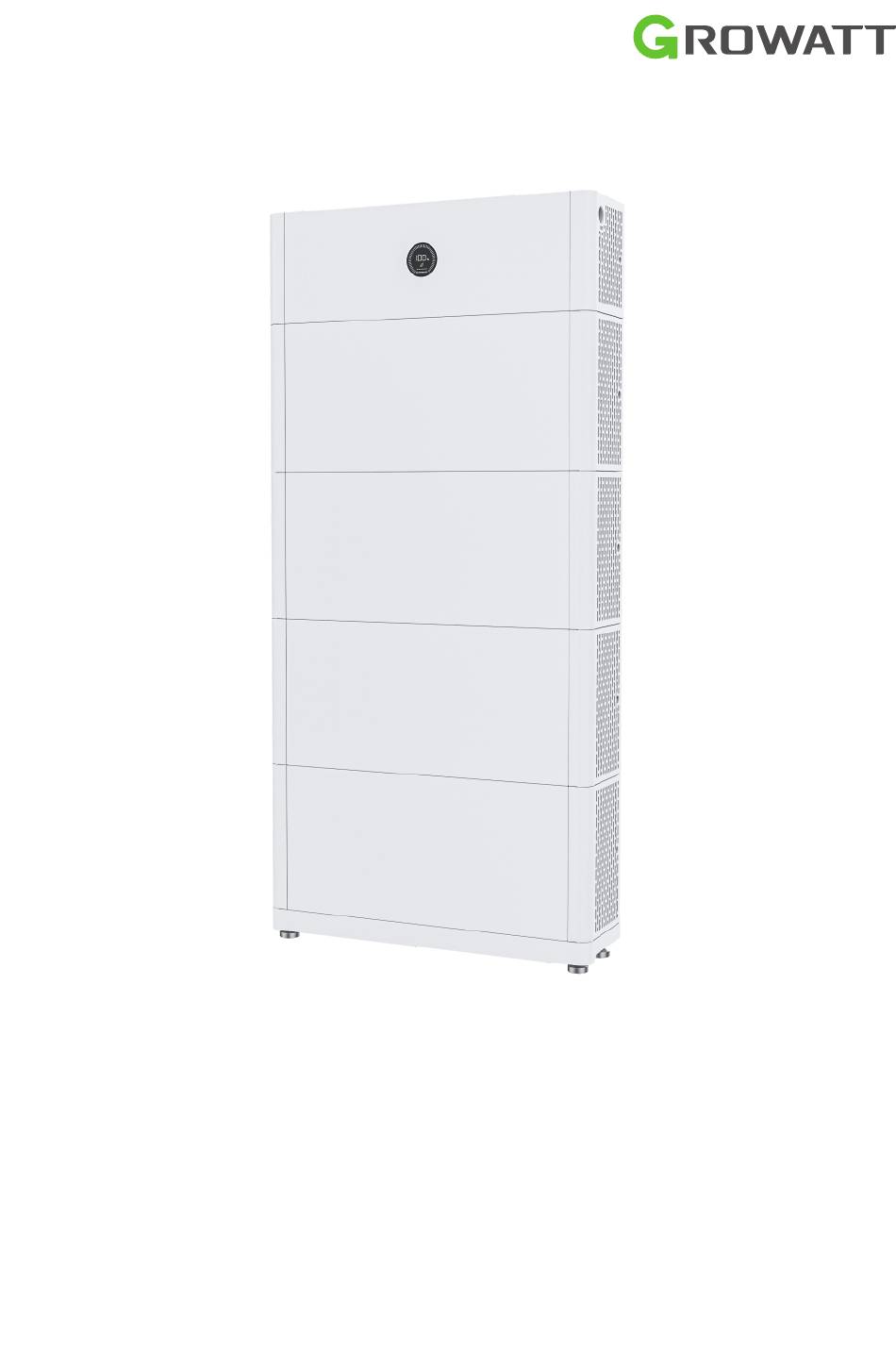

  • Page 1 APX 5.0-30.0P-S0 High Voltage Battery System User Manual...
  • Page 2 About this Document This document introduces the APX 5.0-30.0P-S0 Battery System (short for APX) in terms of installation, electrical connection, operation, commission, maintenance, and troubleshooting. Before installing and operating the APX system, ensure that you are familiar with product features, functions, and safety precautions provided in this document.

  • Page 3: Table Of Contents

    .................. 1 1.1 Intended Use ......................... 1 1.2 Appearance ........................1 1.2.1 APX 55027-P0 (Power Module)................1 1.2.2 APX 5.0P-B1 (Battery Module)................4 1.3 Working Principle and Function................5 2 Safety ....................... 6 2.1 General Safety ......................6 2.2 Safety Precautions ....................... 6 2.2.1 Environment requirements..................

  • Page 4: Product Overview

    1.1 Intended Use The entire APX 5.0-30.0P-S0 high-voltage energy storage system is composed of a APX 55027-P0 (hereinafter referred to as Power Module) and multiple APX 5.0P-B1 battery modules (hereinafter referred to as Battery Module, the maximum number of Battery Module connected in parallel is 6).
  • Page 5 Location Port Function Turn on/off the power connection between the DC switch Power Module to the hybrid Inverter FUSE Provide overcurrent protection for a circuit Ground terminal, connect to the hybrid inverter Ground terminal, connect to the Battery Module Wake up the Battery Module (Press for over 5 Start seconds) USB port, connect to a USB flash drive to upgrade...
  • Page 6 LED display Figure1- 3: LED display Function Function description Display SOC Display current SOC in a progress circle Eight light bars rotate clockwise when the Display upgrade status program is updating Display SOC Display SOC in percentage When upgrading the program, "UP" is Display upgrade status displayed Steady green during normal operations;...

  • Page 7: Apx 5.0P-B1 (Battery Module)

    1.2.2 APX 5.0P-B1 (Battery Module) Battery Module consists of LFP battery cells, a DC-DC converter, mechanical parts, the battery management unit (BMU) as well as power and communication terminals. Product appearance is shown as below. Figure 1-5: Schematic diagram of the power panel...

  • Page 8: Working Principle And Function

    1.3 Working Principle and Function The APX 5.0-30.0P-S0 high voltage battery system is composed of a Power Module APX 55027-P0 and multiple Battery Modules APX 5.0P-B1 connected in parallel. It contains electrochemical batteries, battery control units, power control units, battery management units, power and signal terminals, and mechanical parts.

  • Page 9: Safety 2

    The battery system has been designed and tested in accordance with strict rules to meet international safety certification requirements. Before installing or using the battery system, please read all safety instructions carefully and observe the rules. Growatt will not be liable for any consequence of the following circumstances: Damage during the transportation by the customer.

  • Page 10: Operation Precautions

    2.2.2 Operation Precautions Do not touch the battery system with wet hands. Ø Do not disassemble the battery system without authorization. Ø Do not crush, drop or pierce the battery pack and the high voltage controller. Ø Dispose of the batteries according to local safety regulations. Ø...
  • Page 11 Name：Battery Module Model：APX 5.0P-B1 Battery Type：Li-ion Nominal Energy：5kWh Rated Energy:4.5kWh Input/Output：330-450V;7.6A;2.5kW Peak Output Current：12.5A,60s Protective Class：I Battery Interface:Isolated Ingress Protection：IP66 Weight：50kg Operation Ambient Temperature：-10°C-+50°C Shenzhen Growatt New Energy Co.,Ltd. Made in China Bao'an District, Shenzhen, Guangdong P.P. China Figure 2-1: Nameplate...

  • Page 12: Emergency Responses

    If the battery system is soaked or submerged in water, do not touch Flood emergency the batteries to avoid electric shock. Contact Growatt or your distributor immediately for technical assistance. The shell damage requires extra attention as it is of high risk. Do not Shell damage use batteries with a damaged shell, which may cause safety hazards.

  • Page 13: Storage And Transportation 3

    Storage and Transportation 3 3.1 Storage Requirements Ø Place the batteries according to the signs on the packing case. Do not put batteries upside down or on their side. Ø Do not store damaged batteries near undamaged ones. Ø The storage environment requirements are as follows: Ø...

  • Page 14: Installation

    4 Installation Read through the Guidance before installation to understand product Ø information and safety precautions; Only qualified and well-trained technicians who fully understand the Ø whole photovoltaic system, grid network, battery system, working principle and national/local standards are allowed to perform operations on the battery;...
  • Page 15 ≥300mm Wall ≥300mm ≥300mm ≥300mm ≥300mm Ground Ground Figure 4-2: Floor-mounted installation Note: For floor mounted installation, a maximum of six batteries can be stacked. It's recommended that battery modules are installed in two columns if there are more than 4 of them. Do not place the battery pack upside down.

  • Page 16: Installation Tools

    4.3.1.1 Check the APX Battery System of different capacities APX 55027-P0 APX 5.0P-B1 Wall bracket 2.5 meters APX 5.0P-B1 Parallel APX 5.0P-B1 Base extension cable Figure 4-4: Components of the APX Battery System of different capacities...
  • Page 17 Battery Standard Wall-Mounted Standard Floor-mounted capacity Installation Compound Mode Installation Compound Mode 5kwh A+B+C A+B+E 10kwh A+B*2+C A+B*2+E 15kwh A+B*3+C A+B*3+E 20kwh A+B*4+C A+B*4+E 25kwh A+B*5+C*2+D A+B*5+E*2+D 30kwh A+B*6+C*2+D A+B*6+E*2+D 4.3.1.2 Check the components of the APX 55027-P0 to PCS to PCS to PE to Battery Module...

  • Page 18: Wall-Mounted Installation

    Ensure that you have the standard accessories - the Power Module Ø (APX 55027-P0) and the Battery Module (APX 5.0P-B1) . The APX battery system consists of a Power Module (APX 55027-P0) and 1 to 6 Battery Modules (APX 5.0P-B1).
  • Page 19 install the wall bracket Figure 4-8: Install the mounting bracket Step 1: Install the mounting bracket. Dia 8.0mm 90° Deep45~50mm Marker Level Level the bracket using a level. Mark the hole positions for installing the bracket. Drill eight holes. Figure 4-9: Determine the hole positions for installing the bracket Step 2: Level the bracket using a level, and mark the hole positions for installing the bracket using a marker.
  • Page 20 Step 3: Fix the wall bracket on the wall and place the first battery module on the mounting bracket. Install the anti-tipping plates on both sides and tighten the two screws. Mark the hole positions for installing the first battery module. M6 expansion bolt Marking-off...

  • Page 21: Floor-Mounted Installation

    Loosen two screws, move up handle on both sides. Tighten the two screws, fix the battery and the power modules. Figure 4-13: Install the power module Step 6: Install the power module, raise the battery module handles on both sides, tighten the two screws that secure the power module and battery module.
  • Page 22 Marker Level Install the connecting pieces on both Keep the Battery Module level. sides and tighten the two screws. Mark the hole positions for installing Install the anti-tipping plates on both sides the module. and tighten the two screws. Figure 4-15: Installing the battery support Step 1: Install connecting pieces on both sides of the battery support and tighten the two screws.
  • Page 23 Install the connecting pieces on both sides and tighten the two screws. Secure the module on both sides to the wall. Loosen two screw, move up handle on both sides. Tighten the two screws, fix the two battery modules. Figure 4-17: Install the battery module Step 3: Install the remaining battery modules (no more than 4 of them), raise the handles on both sides, tighten the two screws that secure the battery module.

  • Page 24: Electrical Connection

    4.4 Electrical Connection Do not forget to wear ESD wrist strap and gloves, safety gloves and goggles. WARNING 4.4.1 Communication port definition APX 5.0-30.0P-S0 MIN 2.5-6KTL-XH/MIN 2.5-6KTL-XH2 Terminal serial Terminal serial Silk screen Definition Silk screen Definition number number WAKE-(W-) Enable- WAKE+(W+) Enable+...

  • Page 25: System Connection

    4.4.2 System connection A DC switch（switch-disconnector）has been installed in the Power Ø Module. Therefore, a DC circuit breaker is not recommended to be installed between the battery system and the hybrid inverter system. If you have installed a DC circuit breaker, do not perform operations on the DC circuit breaker with power-on, otherwise the machine may be damaged.
  • Page 26 Fig 4-20 Note: When installing in two columns, please purchase two bases and the parallel extension cables, which include power cables, communication cables, and ground cables. 4.4.2.2 System connection diagram BAT- BAT+ Figure 4-21: Single-column installation...
  • Page 27 BAT- Note: Battery modules MUST be paralleled BAT+ with B+ to B+, B- to B-. Figure 4-22: Two-column installation...
  • Page 28 Note: The battery is not allowed to be installed when the machine is running. Ensure that all the lights indicating “RUN” of battery modules are off before installation. Ensure that the PE cable is securely connected. 4.4.2.3 Electrical wiring connection Figure 4-23: APX 55027-P0 wiring diagram A.
  • Page 29 B. APX 5.0P-B1 (Battery module) wiring Figure 4-24: APX 5.0P-B1 wiring diagram Step 1: Insert the power cable into the corresponding port. The click sound indicates a robust connection. Step 2: Insert the communication cables into the “Link-in” and “Link out” port, and then tighten the communication terminals clockwise.
  • Page 30 4.4.2.4 External Electrical Connections of the APX Step 1: Cut the cable hole according to the wiring mode. Step 2: Cover it with a protective rubber ring, and route external cables through the cable hole. Figure 4-25: Installing external cables...

  • Page 31: Power On/Off The Apx Battery System

    Power on/off the APX Battery 5 System Personnel who install and operate the Battery System must receive Ø thorough training and possess the local national required qualifications before operation. Only qualified professionals and trained personnel are allowed to install, operate and maintain the equipment.
  • Page 32 The APX battery system will automatically shut down in a few minutes after the LED indicator and the logo “Growatt” go off. Do not turn on the NOTICE switch until it is completely powered off.

  • Page 33: Power Off The Apx Battery System

    1. Turn off the DC switch on the APX, and disconnect the AC circuit breaker and the PV switch of the inverter. 2. Wait for 15 minutes until the LOGO indicator (GROWATT) on the APX turns off, indicating that the system is completely powered off.

  • Page 34: Maintenance Guide

    6 Maintenance Guide 6.1 Preparation After the system is powered off, the remaining electricity and heat still exist in the chassis, which may cause electric shocks or burns. Therefore, you need to wear protective gloves and perform operations 10 minutes after the system is powered off. 6.2 Replace a fuse Step 1: Power off the APX system.

  • Page 35: Led Indicators

    The Battery Module contains batteries. Dispose of them in compliance Ø with local laws and regulations. If the LED indicators are not displayed, you can tap the enclosure Ø below the display to activate the screen. NOTICE 6.4 LED indicators Hibernation mode休眠模式...

  • Page 36: Troubleshooting

    6.5 Troubleshooting Indicator Description Cause Measures 1.There is no safety risk. 2.Ensure that the inverter is powered on. Communication To PCS 3.Check if the PCS and battery loss between Communication communication terminals are well PCS and the APX failure connected. battery system 4.If the problem persists , users should contact the installer to...
  • Page 37 Indicator Description Cause Measures The power cable Check whether the power cable Power cable is disconnected between the Power Module and the disconnected to the Power Battery Module is securely Module connected. The external 1.Check whether the External communication communication cable is securely communication cable is not connected.

  • Page 38: System Fault Information List And Troubleshooting Suggestions

    BM to PM open- FAULT 407(0) between BM and PM, then restart the machine. If the circuited problem persists, please contact Growatt support. Power off the machine and wait for 30 minutes FAULT 408(0) Over-Temp before you restart the machine. If the problem persists, please contact Growatt support.
  • Page 39 Growatt support. When the temperature of the machine is close to - 40°C (-40°F), it will raise this alarm. If the Temperature sensor FAULT 700(0) temperature is higher than -40°C(-40°F) when this open-circuited alarm is reported, please contact Growatt support.
  • Page 40 Description Suggested measures Reduce the load power, then restart the machine. FAULT 707(0) Overload fault If the problem persists, please contact Growatt support. Reduce the load power, then restart the machine. FAULT 707(2) Overload fault If the problem persists, please contact Growatt support.
  • Page 41 If the problem persists, please contact Growatt support. Reduce the load power, then restart the machine. Discharge Overload WARN 707(1) If the problem persists, please contact Growatt Alarm support. Reduce the load power, then restart the machine. Discharge Overload...
  • Page 42 Power off the machine and wait for 30 minutes FAULT 408(0) Over-Temp before you restart the machine. If the problem persists, please contact Growatt support. Power off the machine and check the power BM transient FAULT 409(2) cables, then restart the machine. If the problem overvoltage persists, please contact Growatt support.
  • Page 43 40°C (-40°F), it will raise this alarm. If the FAULT 700(0) open-circuited temperature is higher than -40°C(-40°F) when this alarm is reported, please contact Growatt support. Reduce the load power, then restart the machine. FAULT 707(0) Discharge Overload If the problem persists, please contact Growatt support.

  • Page 44: Cleaning

    Power off the machine and check the power cables, then restart the machine. If the WARN 704(0) BM overvoltage problem persists, please contact Growatt support. Power off the machine and check the power cables, then restart the machine. If the...

  • Page 45: Technical Specifications 7

    Communication method CAN2.0 Dimensions (W/D/H) 690*185*220 mm ±2mm Weight 10±1kg IEC62040/IEC62619/ Certification & Licensing IEC62477/CE/UKCA/UN38.3 Environment requirements RoHS 7.2 APX 5.0P-B1 (Battery Module) Items Specifications Module APX 5.0P-B1 Nominal Capacity/Energy 100Ah/5kWh Rated Usable Capacity/Energy 100Ah/4.5kWh Rated Voltage 385V Operating Voltage 330-450V Rated current (25℃)
  • Page 46 Rated capacity of the measured module: 100 Ah N (Number of modules connected in Parallel): 1~6 Rated capacity (Ah) = 100 Ah *N Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com...
  • Page 47 Download Manual Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao'an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com www.ginverter.com GR-UM-336-A-00...
