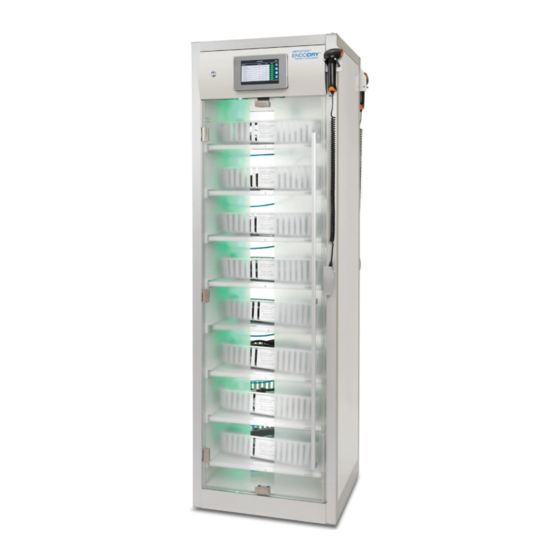

  • Page 1 SERVICE MANUAL one-click...
  • Page 2 This publication is protected by copyright. Copying, disclosure to others, or the use of this publication is prohibited without the express written consent of Cantel. Cantel reserves the right to make changes in the specifications shown herein without notice or obligation. Contact your Cantel representative or Cantel customer service for more information.

  • Page 3: Table Of Contents

    CHECKLIST FOR MAINTENANCE OF THE CABINET ..............27 TECHNICAL SERVICE INFORMATION ..................28 ENDODRY™ and endoSTORE™ are used interchangeably and are referred to as cabinet in this manual. For service or service-related questions, contact Cantel Technical Supportoryour local Cantel Distributor.

  • Page 4: Service, Repairs And Modifications

    Caution! Cantel Medical (Italy) S.r.l. does not assume liability for injuries or damages as a result of repairs conducted by non-authorized staff. General Maintenance and Repair Information Information contained in this manual is only for trained staff, who masters the required skills and safety measures for the repair of electronic equipment.

  • Page 5: Maintenance Of The Control Drawer

    2 Maintenance of the Control Drawer Accessible connections on the top of the cabinet Air connection Power cable connection LAN connection Check power cable and connection for damage. Replace them if necessary. Check LAN cable and connection for damage. Replace them if necessary. Opening of the control system fixing screw To open the control system, first open the front door after that you can loosen fixing screw.

  • Page 6: Construction Of The Pneumatic Module

    Construction of the Pneumatic Module Inlet valve Pressure regulator Pressure controller Filter Flow sensor Replacing the filter Loosen screws procedural method: 1. switch off the cabinet 2. remove the tubes (by pressing the unlocking ring towards the housing) 3. loosen the screws 4.

  • Page 7: Setting Of Pneumatic Components

    In the pneumatic module of the endoSTORE it is possible to configure pressure controller and pressure regulator. Duration and operating phases can be adjusted in the operator software. (see chapter 4.3). 2.5.1 Factory Settings of Parameters ENDODRY Parameter discrepancy endoSTORE® one-click endoSTORE®...

  • Page 8: Pressure Controller

    2.5.2.1 Deactivate key lock  min. 2 seconds  Press is displayed and indicates.   Press is displayed for ca. 1 second.  Now button lock is deactivated, current pressure is displayed 2.5.2.2 Adjust sensitivity  min. 2 seconds  Press Changing to settingsmode (F01) ...
  • Page 9 2.5.3.1 Displaying of the adjusted pressure threshold  displaying of the current pressure. 1. Press 2. Press time “P1L” appears (lower threshold) 3. Press time “P1H” appears (upper threshold) 4. Press time current pressure is displayed 2.5.3.2 Adjust Pressure of threshold ...
  • Page 10  change between Press  Or take to change to  Confirm and go back to menu  2 times  Press F3 (adjustment of response time)   change between Press  Press until is displayed  Confirm with and go beck to menu ...

  • Page 11: Cabinet Tests

    3 Cabinet Tests At the yearly maintenance the following functions need to be tested. Check the Drawer Function free movement (in/out) distortion Check the Tube Connections tightness free movement of the rotatable connectors page 11 of 28...

  • Page 12: Check The Air Outlet Of All Nozzles (Only Model Neo)

    Check the air outlet of all nozzles (not for one-click models) deformation mechanical influences spring function Check the o-rings of the nozzles damage pinch porosity missing o-rings o-rings page 12 of 28...

  • Page 13: Check The Flow Of The Nozzles (Only Model Neo And Endodry™)

    Check the flow of the nozzles (not for one-cklick models) Before the first operation and during maintenance every seven nozzles of each drawer need to be checked for correct air flow. Therefore the drying phase of 0.5 bars has to be activated in the diagnostic menu. For the test an air flow tester is put on to every nozzle while air pressure pin is pushed.

  • Page 14: Changing Air Circulation Filter

    Changing air circulation filter Loosen screws of the cover. Remove cover Change filter Change filter Fasten Cover page 14 of 28...

  • Page 15: Test Function Of The Fan

    Test function of the fan If required change fan: Loosen screws of the cover. Take filter of the fastening pin Loosen plug Pin and fasten on new fan Check the Door(s) retighten all screws (door handle, locking tab) check the locking unit (retighten screws) check the hinges (retighten screws with a screwdriver PH2) check the sealing lips check also backside, if two-sided version...

  • Page 16: Check Bar Code Reader

    Check Bar Code Reader damage to cable, connector or reader check function via Diagnostic Scanner if two-sided version repeat 3.10 Check Touch Display pixel errors check touch functionality and calibrate if necessary Menu > Standard Settings > Calibrate display check also backside, if two-sided version page 16 of 28...

  • Page 17: Operating Software

    4 Operating Software The following chapter indicates essential functions of the control-software, which only a service technician should perform. License settings Login as admin. Within license settings (site 2 menu) it is possible to activate further addons. The license key is provided by the manufacturer. Standard settings Login as service technician E.

  • Page 18: Process Settings

    Process settings Login as service technician It is possible to change several process settings. The maximum air pressure which can be set is 1 bar. Caution! Change of process settings has a major influence on drying result. It is highly recommended not to reduce the process settings. If the customer wants a change in this setting, this will happen on his own responsibility and need to be noted in the admission protocol.

  • Page 19: Service Settings

    Caution! If the door is open for a longer time, this will lead to increase of the humidity in the cabinet, which will lead to longer drying times. It is also possible to change error air pressure malfunction (relative). Factory settings are adjusted to 50%.

  • Page 20: Software Update

    4.5 Software Update 1. Connect a USB memory stick with the installer file (Endodry-Endostore_setup3.X.XXXX.exe) to one of the available USB ports on the cabinet. 2. On the USB memory stick, double-click on the installer file (Endodry- Endostore_setup3.X.XXXX.exe). 3. Enter the password of Admin and press the Yes button to continue.
  • Page 21 4. Check the Generate unique computer name box. Important: This checkbox is deactivated by default. On the first installation it must be set manually to be active. page 21 of 28...
  • Page 22 • NDODRY • ENDODRY DSD / one-click / RapidAER endoSTORE Innova / Neo / one-click / BHT • Each cabinet version can be installed as a Master or Slave device. page 22 of 28...
  • Page 23 6. Press the Install button to install the Endodry application. page 23 of 28...
  • Page 24 7. Press the Finish button once the application indicates the installation is complete. 8. Installation complete. page 24 of 28...

  • Page 25: Technical Data

    5 Technical Data ENDODRY™ and endoSTORE™ cabinets must be installed in an environment with the following characteristics of temperature, humidity, pressure and a maximum installation altitude of 2000 meters above sea level. They are designed for indoor use. Dimensions [cm]: Weight [kg]: 5 °C to 40 °C...
  • Page 26 6” Colour touch screen Display: Electrical protection class IP code: IP 20 page 26 of 28...

  • Page 27: Checklist For Maintenance Of The Cabinet

    6 Checklist for maintenance of the cabinet general information: o clinic, city, department o contact person, telephone o possibly: order number of the maintenance or service visit o date, name of the service technician information of the cabinet: o device model o serial number o date of installation o software version...

  • Page 28: Technical Service Information

    Technical Service Information Date Inspection Signature page 28 of 28...
