Symmons SGB Series Installation Instructions

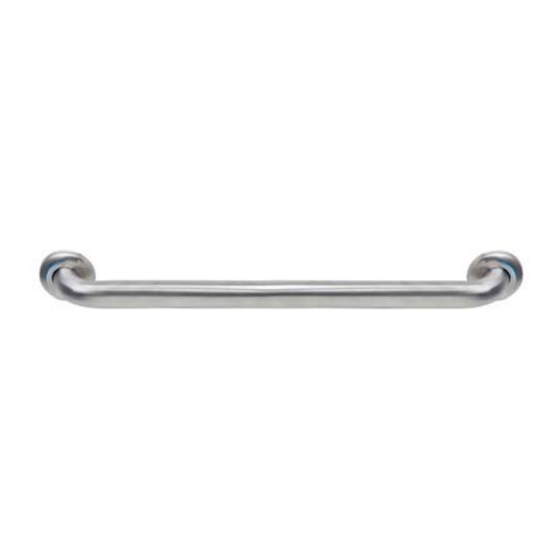

Wall Mounted Grab Bar SGB
Installation Instructions
Model Numbers
SGB-12 ........ 12 inch ADA Grab Bar
SGB-18 ........ 18 inch ADA Grab Bar
SGB-24 ........ 24 inch ADA Grab Bar
SGB-36 ........ 36 inch ADA Grab Bar
SGB-42 ........ 42 inch ADA Grab Bar
SGB-48 ........ 48 inch ADA Grab Bar
Visual Guide
Six (6) #10 x 2"
(51 mm) wood
screws included
drill hole
5/32 inch
Tools and Materials
Finish Options
Append appropriate -suffix to model
number
☐
-STN
Wall Mounted Grab Bar SGB
1-1/2" (38 mm)
bar diameter
Grab Bar must be
secured with at least
two (2) of three (3)
screws at each end on
top and bottom.
5/32" drill bit
1/4" carbide
tip drill bit for
wall tiles
1 2 3 4
Satin Nickel
Polished chrome
-
(standard finish)
press-on screwless
escutcheon

Need Help?
Symmons customer service:
P: (800) 796-6667
gethelp@symmons.com
Mon - Fri 7:30 am - 6:00 pm EST

www.symmons.com/service
• Technical help
• Product information
• Warranty policy
Compliance
2010 ADA Standards for Accessible Design
Grab bar assembly complies with the
applicable requirements.
3" (77 mm)
diameter
1-1/2" (38 mm)
standard wall
stud width
