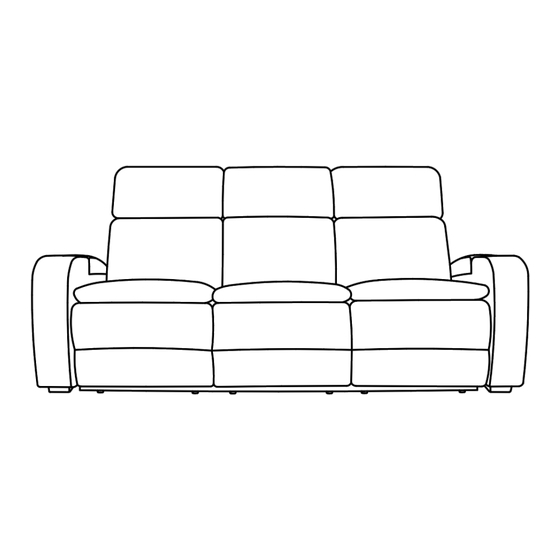

Assembly Instructions & User's Manual
for
Member's Mark Maxwell Power Reclining
Theater Sofa with Drop Table
Item Number: 990303593
Model Number: SHF-MT01BLK3-DI
Customer Assistance
: 1-888-406-0838
(spare/replacement parts)
or Email: samsclub@abbysonliving.com
THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Member's Mark Maxwell SHF-MT01BLK3-DI
Summary of Contents for Member's Mark Maxwell SHF-MT01BLK3-DI
- Page 1 Assembly Instructions & User’s Manual Member’s Mark Maxwell Power Reclining Theater Sofa with Drop Table Item Number: 990303593 Model Number: SHF-MT01BLK3-DI Customer Assistance : 1-888-406-0838 (spare/replacement parts) or Email: samsclub@abbysonliving.com THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ..........................3 Important Safety Information ......................3 Before Assembly ..........................3 Care & Use ............................3 Package Contents ..........................4 Product Information .......................... 5 Components & Hardware ......................... 5 Step 1 ..............................6 Step 2 ..............................7 Step 3 .............................. -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
• Stress to the fabric may result in tears and when stretched, upholstery may not completely return to its original shape. • Avoid sitting in one area and use the seating areas evenly for even wear. • Fabric is not resistant to animals. Allowing pes on your upholstered furniture is not recommended. -
Page 5: Product Information
Product Information Overall Product Dimensions – 81.3"x41.5"x42" (206.5cm x 105.41cm x 106.68cm) Product Weight Capacity – Supports up to 250 lbs. per seat (113.4 kg.) Components Seat Base (A) Left & Right Back Cushion (B) Middle Back Cushion (C) Part No. Part No. -
Page 6: Step 1
Step 1 Slide the back cushions (B, C) into the steel mechanism posts in the seat base (A) of the furniture. Press both sides of all the back firmly into place. The back will automatically lock into place. Complete this step for all three back cushions. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 7: Step 2
Step 2 Put the plug of the headrest motor into the control box socket. Step 3 Attach the outside back along the bottom rear of the base frame with pre-attached Velcro. Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 8: Step 4
Step 4 Connect the Power Supply (E) to the USB charger. Connect the AC cable (D) to the AC socket behind the armrest then connect another plug of the AC cable and the plug of the USB charger (E) to a power source. Step 5 Once completed, zip back and seat cushion together. -
Page 9: Warning
Warning • Do not use the product unless all screws and bolts are securely tightened. • Check that all screws and bolts are secure every three months or as needed. • Dispose of packing material properly. Do not use plastic cover as head covering as it may cause suffocation. -
Page 10: Danger
Danger To reduce the risk of burns, fire, electric shock, or injury to persons: DANGER: To reduce the risk of electric shock - Always unplug this furnishing from the electrical outlet before cleaning. Unplug from outlet before putting on or taking parts off. Close supervision is necessary when used by or near children, or disabled people. -
Page 11: Storage Instructions
Storage Instructions Item 1. Carefully place all components into shipping box and/or provided container tape it shut. 990303593 2. When not in use, please store your item in a cool, dry place away from sunlight. 3. Exposing your item to excessive heat or humidity may damage your item. Technical Data Model No.: GS05802900200 Rated Output: 5V2A...
