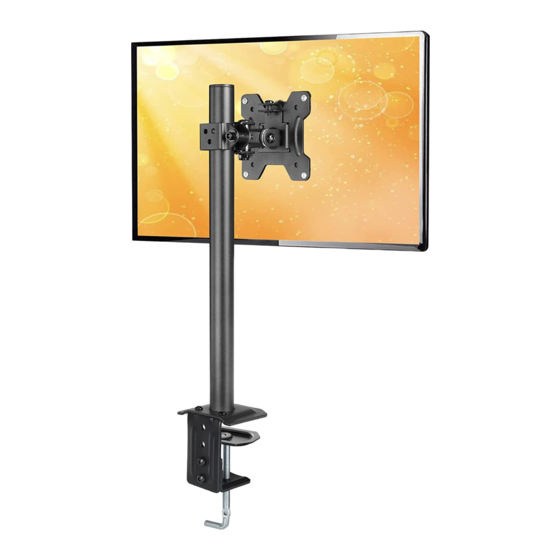

Desk Monitor Arm
Monitorarm für den Schreibtisch
Bras pour Moniteur de Bureau
Instruction Manual
Bedienungsanleitung
Manuel d'instructions
EGCM12
Rev04(A)
English
Deutsch
Français
Español
Italiano
(US/CA) 1-800-651-9525 Mon–Fri, 8am–8pm (CST)
(UK) 44-808-196-3875
AMZLAB GmbH
Laubenhof 23,45326 Essen
info@amz-lab.de
THEMIS AR support ltd.
85 Great Portland St, London, United Kingdom.
info@amz-lab.de
Manufacturer: BESTQI INNOVATION (HONG KONG) TECHNOLOGY CO., LIMITED
Address: FLAT/RM 185 G/F HANG WAI IND CENTRE 6 KIN TAI ST TUEN MUN NT
Brazo de Monitor de Escritorio
Braccio per Monitor da Scrivania
Manual de instrucciones
Manuale di istruzioni
Mon–Fri, 2pm–10pm (UTC)
03-11
12-20
21-29
30-38
39-47
support@ergear.com
https://ergear.com
WWW.
Advertisement
Related Manuals for ErGear EGCM12
Summary of Contents for ErGear EGCM12
- Page 1 Brazo de Monitor de Escritorio Monitorarm für den Schreibtisch Braccio per Monitor da Scrivania Bras pour Moniteur de Bureau Instruction Manual Manual de instrucciones Bedienungsanleitung Manuale di istruzioni Manuel d'instructions EGCM12 Rev04(A) English 03-11 Deutsch 12-20 Français 21-29 Español 30-38...
- Page 3 If you do not understand the instructions or if you have any concerns or questions, please contact our Technical Support line as listed above or customer service at support@ergear.com. • Not all hardware included in this package will be used.
- Page 4 Step 1 Supplied Parts and Hardware C-Clamp Locking Plate Bottom Pad Bolt Large Allen Key Pole M8 x 8mm 13/64” (5mm) Step 2 Supplied Parts and Hardware Large Allen Key Monitor Connector Decorative Cover 13/64” (5mm)
- Page 5 Step 3 Supplied Parts and Hardware Bolt Bolt Washer Faceplate M4 x 12mm M4 x 30mm Spacer L13mm Step 4 Supplied Parts and Hardware Bolt Small Allen Key M6 x 16mm 5/32” (4mm)
-
Page 6: Install The Base
Step 1 Install the Base Option A For C Clamp Mounting Applicable Desktop Thickness: Desktop 25/64″-3 5/64″ (10-78mm) - Page 7 Option B For Grommet Mounting Phillips Screwdriver (Not lncluded) Electric Drill (optional) Applicable Desktop Thickness: (10-55mm) 25/64″-2 11/64″ 7/16”-7/8” (11-22mm) ≥2” (50mm) NOTE: If there is no grommet hole on your desktop, mark a hole on your desired position (Be sure to leave 2”...
- Page 8 Secure the Monitor Connector and Deco- Step 2 rative Cover to Pole Assembly Slide the monitor connector [03] and decorative cover [C1] into the pole [01], and adjust to your desired height. Then tighten the pre-assembled bolt. Height Adjustment If the head is not level, adjust according to the following solution.
- Page 9 Step 3 Attach the Faceplate to the Monitor The hanging tab should face up. Phillips Screwdriver (Not lncluded) Option A For Flat Back Monitor Option B For Curved Back Monitor...
-
Page 10: Tilt Adjustment
Step 4 Hang the Monitor on the Mount Hang the monitor on the monitor connector [03] using the hanging tab and bolt [E3]. Make sure the bolt is secured before you rotate the monitor. Step 5 Adjustments Tilt Adjustment The monitor should adjust easily when moved, then stay in place. Adjust the tilt tension bolt [T] if your monitor naturally tilts up or down. - Page 11 Level and Swivel Adjustment The TV can be swivelled. Slightly loosen the bolt [S]. Adjust TV to your desired angle, then tighten the bolt [S]. In addition, if needed, the TV can be leveled directly by hand. Loosen Tighten Level WARNING: To avoid tipping, please be careful not to extend the monitor too far backward.
