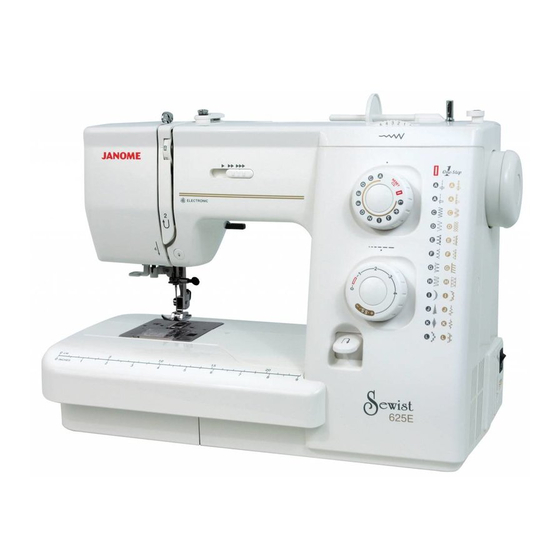

- Page 1 SERVICE MANUAL MODEL 625E...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SERVICE MANUAL Service Access (1) Face plate ................... 1 Service Access (2) Base cover .................. 2 Service Access (3) Front cover .................. 3 Service Access (4) Rear cover .................. 4 Adjusting Thread Tension ................... 5 Adjusting Presser Foot Height and Alignment ............6 Adjusting Needle Swing ..................... -
Page 3: Service Access (1) Face Plate
MODEL 625E Service Access (1) • Face plate <To remove> Remove the cap and setscrew. Remove the face plate. <To attach> Attach the face plate with the setscrew. Attach the cap. Face plate Setscrew... -
Page 4: Service Access (2) Base Cover
MODEL 625E Service Access (2) • Base cover <To remove> Remove the setscrews (6 pcs.) and remove the base cover. <To attach> Shift the drop feed lever in the direction of the arrow. Attach the base cover with setscrews. Base cover... - Page 5 MODEL 625E Service Access (3) • Front cover <To remove> Remove the face plate and base cover (see pages 1 and 2). Pull out the pattern selector dial and stitch length dial. Remove the setscrews (A), (B) and (C) (two off).
-
Page 6: Service Access (4) Rear Cover
MODEL 625E Service Access (4) • Rear cover < To remove> Remove the face plate, base cover and front cover (see pages 1-3). Remove the setscrews (A), (B), (C) and (D). Lower the presser foot lifter and pull away the rear cover from the machine, clearing the parts (1), (2) and (3), in this order. -
Page 7: Adjusting Thread Tension
MODEL 625E Adjusting Thread Tension • The standard tension should be 75 - 90 grams measured with a white polyester thread #50 being pulled in the direction of the arrow, when the tension dial is set at "4". <To adjust>... -
Page 8: Adjusting Presser Foot Height And Alignment
MODEL 625E Adjusting Presser Foot Height and Alignment • The distance between the bottom of the presser foot in up position and the needle plate should be 6.0 mm. <To adjust> Remove the face plate and needle. Lower the feed dog below the needle plate. Place a block 6 mm thick under the presser foot and lower the presser foot lifter. -
Page 9: Adjusting Needle Swing
MODEL 625E Adjusting Needle Swing • If the needle swing when it is still in the fabric, correct it as follows. <To adjust> Remove the front cover (see page 3). Select the zigzag stitch ( ) and set the stitch wodth dial at 5.0. -
Page 10: Adjusting Needle Drop Position
MODEL 625E Adjusting Needle Drop Position • The clearance between the needle and side edges of the needle hole should be 0.2 mm or more when the maximum width zigzag stitch ( ) is selecte. And the neddle should drop in the center of the needle hole when the straight stitch is selected. -
Page 11: Adjusting Hook Timing
MODEL 625E Adjusting Needle to Hook Timing • The amount of ascending travel of the needle in the maximum width zigzag stitch ( ) from the right lowest position should be 1.4 to 2.0 mm where the hook point meets the right side of the needle. -
Page 12: Adjusting Needle Bar Height
MODEL 625E Adjusting Needle Bar Height • The standard distance between the upper edge of the needle eye and the upper surface of the hook race should be in the range of 3.0 - 3.6 mm when the hook point meets the... -
Page 13: Adjusting Clearance Between Needle And Hook Point
MODEL 625E Adjusting Clearance between Needle and Hook Point • The standard clearance between the needle and hook point should be -0.10 to +0.05 mm. <To adjust> Select the maximum width zigzag stitch ( Remove the base cover (see page 2). Remove the needle plate and bobbin holder. -
Page 14: Adjusting Backlash Between Hook Drive Gear And Lower Shaft Gear
MODEL 625E Adjusting Backlash between Hook Drive Gear and Lower Shaft Gear • The rotary play should be 0.8 mm or less when the hook point is within the span of the feed dog, and the gears should turn smoothly. -
Page 15: Adjusting Feed Dog Height
MODEL 625E Adjusting Feed Dog Height • The standard height of the feed dog should be 0.75-0.85 mm above the needle plate when the feed dog is at its highest position. <To adjust> Select the straight stitch ( ) and set the stitch width at "4". -
Page 16: Adjusting Feed Balance
MODEL 625E Adjusting Feed Balance The forward feeding (A) and backward feeding (B) should be equal when sewing stretch stitch pattern. <To adjust> Select the straight stretch stitch ( Place a piece of paper under the foot. Turn the handwheel to check the needle marks. -
Page 17: Adjusting Buttonhole Feed Balance
MODEL 625E Adjusting Buttonhole Feed Balance • When sewing a buttonhole, the stitches on each side of the buttonhole should be the same density. The range of 9 to 12 stitches in the right side row against 10 stitches in the left side row is considered acceptable. -
Page 18: Adjusting Buttonhole Zero Feed
MODEL 625E Adjusting Buttonhole Zero Feed • If the fabric is fed when sewing a bartack of the buttonhole, correct it as follows: <To adjust> Sew a test buttonhole to check if the fabric is fed while sewing the bartacks. -
Page 19: Adjusting Buttonhole Function
MODEL 625E Adjusting Buttonhole Function <To check> Buttonhole should be about 3mm longer than the length set by the R foot. if this length cannot be obtained, then check and adjust as follows: <To adjust> Lower the feed dog and set the R foot. -
Page 20: Replacing Motor And Adjusting Motor Belt Tension
MODEL 625E Replacing Motor and Adjusting Motor Belt Tension <To replace the motor> Remove the face plate, base cover, front cover and rear cover (see pages 1 to 4). Remove the case, disconnect the motor connector. (see page 20). Remove the setscrews (C) and motor. -
Page 21: Replacing And Adjusting Threader
MODEL 625E Replacing and Adjusting Threader <To replace> Remove the face plate (see page 1). Pull the threader guard (A) away from the threader. Align the groove on the threader guard with the pin (B) on the threader shaft and push the threader guard up to snap it in place. -
Page 22: Replacing Printed Circuit Board B And Fuse
MODEL 625E Replacing Printed Circuit Board B and Fuse To replace: To remove: 1. Remove the base cover (see page 2). 2. Remove setscrews (A). Remove the case and connectors. 3. Remove setscrews (B). Remove the circuit board B. To attach: 4.
