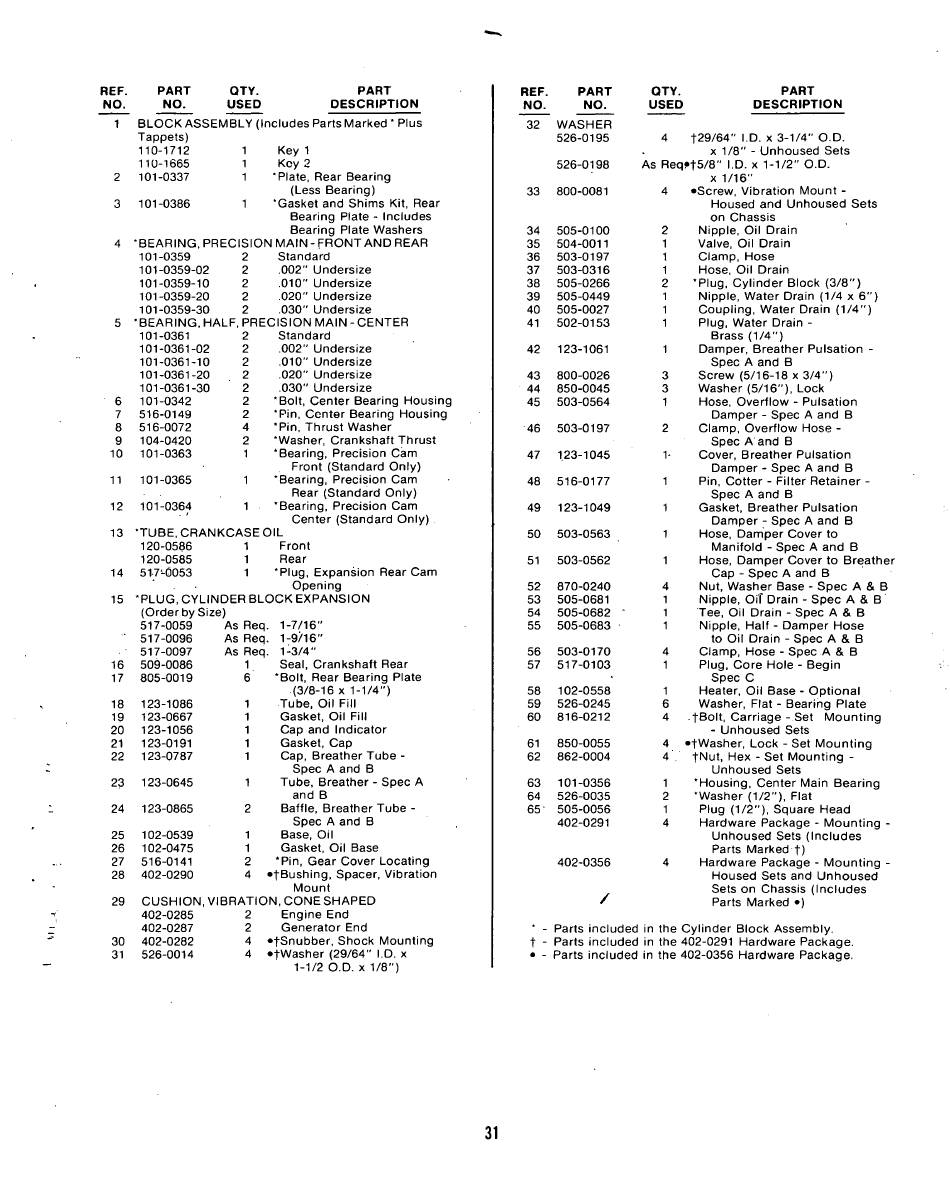

Onan RDJF Series Operator's Manual page 32

REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
BLOCK ASSEMBLY (Includes Parts Marked * Plus
Tappets)
110-1712 1 Key 1
110-1665 1 Key 2
101-0337 1 'Plate, Rear Bearing
(Less Bearing)
101-0386 1 'Gasket and Shims Kit, Rear
Bearing Plate - Includes
Bearing Plate Washers
•BEARING, PRECISION MAIN-FRONT AND REAR
6
7
8
9
10
13
14
15
16
17
18
19
20
21
22
101-0359
101-0359-02
101-0359-10
101-0359-20
101-0359-30
Standard
.002" Undersize
.010" Undersize
.020" Undersize
.030" Undersize
5 'BEARING, HALF, PRECISION MAIN -CENTER
101-0361
101-0361-02
101-0361-10
101-0361-20
101-0361-30
101-0342
516-0149
516-0072
104-0420
101-0363
11 101-0365
12 101-0364
1
1
25
26
27
28
29
30
31
2 Standard
2 .002" Undersize
2 .010" Undersize
2 .020" Undersize
2 .030" Undersize
2 'Bolt, Center Bearing Housing
2 *Pin, Center Bearing Housing
4 *Pin, Thrust Washer
2 'Washer, Crankshaft Thrust
1 "Bearing, Precision Cam
Front (Standard Only)
'Bearing, Precision Cam
Rear (Standard Only)
'Bearing, Precision Cam
Center (Standard Only)
'TUBE, CRANKCASE OIL
120-0586 1 Front
120-0585 1 Rear
517-0053 1 'Plug, Expansion Rear Cam
Opening
'PLUG, CYLINDER BLOCK EXPANSION
(Order by Size)
1-7/16"
1-9/16"
1-3/4"
Seal, Crankshaft Rear
'Bolt, Rear Bearing Plate
(3/8-16 x 1-1/4")
Tube, Oil Fill
Gasket, Oil Fill
Cap and Indicator
Gasket, Cap
Cap, Breather Tube -
Spec A and B
Tube, Breather - Spec A
and B
Baffle, Breather Tube -
Spec A and B
Base, Oil
Gasket, Oil Base
*Pin, Gear Cover Locating
•fBushing, Spacer, Vibration
Mount
CUSHION, VIBRATION, CONE SHAPED
402-0285 2 Engine End
402-0287 2 Generator End
402-0282 4 "fSnubber, Shock Mounting
526-0014 4 •fWasher (29/64" I.D. x
1-1/2 O.D. x 1/8")
517-0059
517-0096
517-0097
509-0086
805-0019
123-1086
123-0667
123-1056
123-0191
123-0787
23 123-0645
24 123-0865
102-0539
102-0475
516-0141
402-0290
As Req.
As Req.
As Req.
1
6
1
1
1
1
1
1
REF.
PART QTY. PART
NO. NO.
USED DESCRIPTION
32
WASHER
526-0195
4 t29/64" I.D. x 3-1/4" O.D.
x 1/8" - Unhoused Sets
526-0198
As Req»t5/8" I.D. x 1-1/2" O.D.
x 1/16"
33 800-0081 4 •Screw, Vibration Mount -
Housed and Unhoused Sets
on Chassis
34 505-0100 2 Nipple, Oil Drain
35 504-0011 1 Valve, Oil Drain
36
503-0197 1 Clamp, Hose
37 503-0316 1 Hose, Oil Drain
38 505-0266 2
'Plug, Cylinder Block (3/8")
39 505-0449 1 Nipple, Water Drain (1/4 x 6 " )
40 505-0027 1 Coupling, Water Drain (1/4")
41 502-0153 1 Plug, Water Drain -
Brass (1/4")
42 123-1061
1 Damper, Breather Pulsation -
Spec A and B
43 800-0026 3 Screw (5/16-18 x 3/4")
44 850-0045 3 Washer (5/16"), Lock
45
503-0564 1 Hose, Overflow - Pulsation
Damper - Spec A and B
46 503-0197 2 Clamp, Overflow Hose -
Spec A and B
47 1.23-1045 1- Cover, Breather Pulsation
Damper - Spec A and B
48
516-0177 1 Pin, Cotter - Filter Retainer -
Spec A and B
49 123-1049 1 Gasket, Breather Pulsation
Damper - Spec A and B
50 503-0563 1 Hose, Damper Cover to
Manifold - Spec A and B
51
503-0562 1 Hose, Damper Cover to Breather
Cap - Spec A and B
52 870-0240 4 Nut, Washer Base - Spec A & B
53 505-0681
1
Nipple, OiT Drain - Spec A & B
54 505-0682 " 1 Tee, Oil Drain - Spec A & B
55 505-0683 1 Nipple, Half - Damper Hose
to Oil Drain - Spec A & B
56 503-0170
4
Clamp, Hose - Spec A & B
57 517-0103 1 Plug, Core Hole - Begin
Spec C
58 102-0558 1 Heater, Oil Base - Optional
59 526-0245 6 Washer, Flat - Bearing Plate
60 816-0212 4 -fBolt, Carriage - Set Mounting
- Unhoused Sets
61 850-0055 4 •tWasher, Lock - Set Mounting
62 862-0004 4 7 tNut, Hex - Set Mounting -
Unhoused Sets
63 101-0356 1 'Housing, Center Main Bearing
64 526-0035 2 'Washer (1/2"), Flat
65' 505-0056 1 Plug (1/2"), Square Head
402-0291 4 Hardware Package - Mounting -
Unhoused Sets (Includes
Parts Marked t )
402-0356 4 Hardware Package - Mounting -
Housed Sets and Unhoused
/
Sets on Chassis (Includes
Parts Marked • )
* - Parts included in the Cylinder Block Assembly.
t - Parts included in the 402-0291 Hardware Package.
• - Parts included in the 402-0356 Hardware Package.
31
