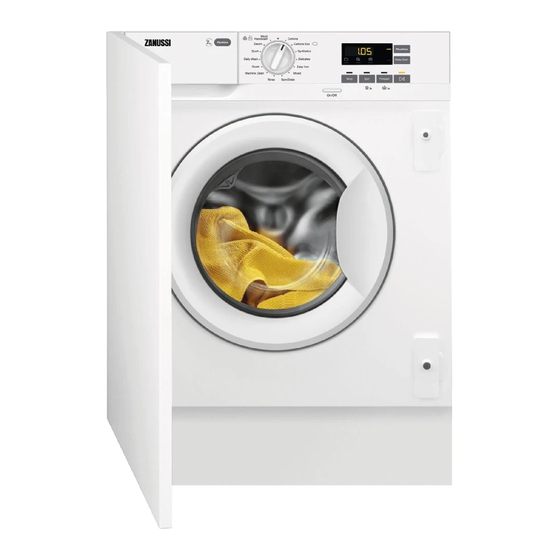

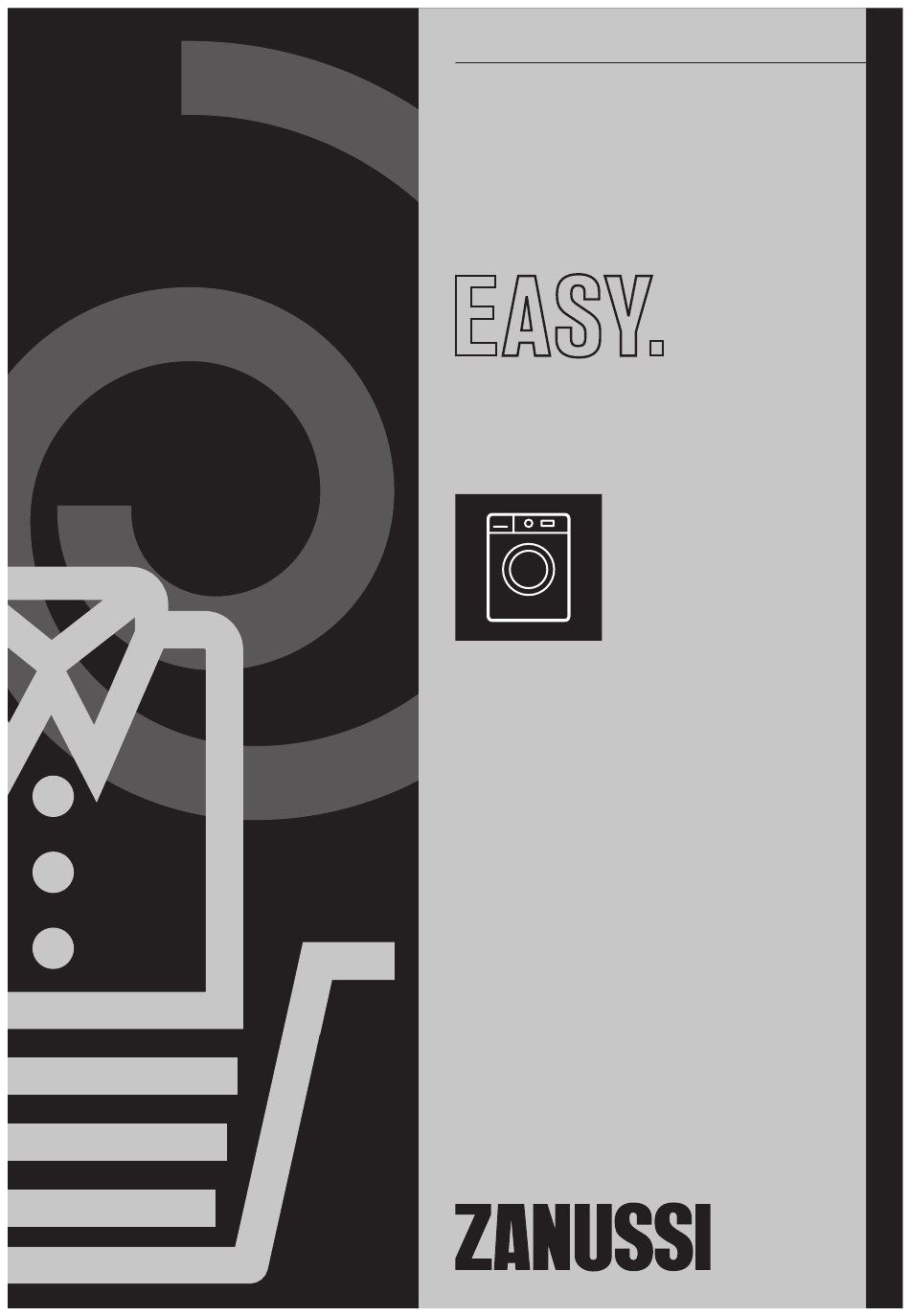

- Page 1 User Manual GETTING STARTED? EASY. ZNI814PDWV EN User Manual Washing Machine...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. -
Page 3: General Safety
GENERAL SAFETY This appliance is for washing domestic-type, machine-washable • laundry only. This appliance is designed for single household domestic use • in an indoor environment. This appliance may be used in, offices, hotel guest rooms, bed • & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS INSTALLATION • Do not use multi-plug adapters and extension cables. The installation must comply with • Make sure not to cause damage to the mains relevant national regulations. plug and to the mains cable. Should the mains cable need to be replaced, this must be carried •... -
Page 5: Product Description
• Make sure that all metal objects are removed • Concerning the lamp(s) inside this product and from the laundry. spare part lamps sold separately: These lamps are intended to withstand extreme physical SERVICE conditions in household appliances, such as temperature, vibration, humidity, or are intended •... -
Page 6: Technical Data
Plate with rubber beater Mains cable Drain pump filter Inlet hose connection Front feet for levelling the appliance Back feet for levelling the appliance Drain hose The rating plate reports the model name (A), product number (B), electrical ratings (C) and serial number (D). - Page 7 THE APPLIANCE IS EQUIPPED WITH ... UNPACKING WARNING! Use the gloves. WARNING! Remove all the packaging and the transit bolts before installing the appliance. 1. Put two polystyrene packaging elements on the floor under the appliance. WARNING! It is strongly recom- mended that this action is carries out by two persons.
- Page 8 4. Return the appliance in vertical position and remove the socket polystyrene protection. 5. Remove the power supply cable and the drain hose from the hose holders. It is possible to see water flowing from the drain hose. This is due to the testing with water of the appli- ance in factory.
-
Page 9: Positioning And Levelling
POSITIONING AND LEVELLING 1. Install the appliance on a flat hard floor. WARNING! Make sure that carpets do not stop the air circulation below the ap- pliance. Bring the appliance near the furniture recess before levelling it. For more de- tails, refer to paragraph "Building in". - Page 10 The inlet hose 1. Remove the inlet hose from inside the drum. 2. To connect the water inlet hose towards the prop- er direction and with the proper inclination, check the position of the water tap before connecting it to the back of the appliance.
- Page 11 To a stand pipe with vent-hole Directly into a drain pipe at a height of not less than Ø 40 mm 60 cm (23.6”) and not more than 100 cm (39.3”). The end of the drain hose must always be ventilated , i.e.
-
Page 12: Preparation And Assembly Of The Cupboard Door
If hoses run behind the appliance, make 596 mm 553 mm sure that nothing closes the small re- cess indicated with the measures 50 x 50 mm. 819 mm 50 mm 50 mm 140 mm 76 mm The appliance is also equipped with an adhesive sponge pad H that you can find inside the drum. - Page 13 Factory pre setting The appliance is originally pre set for the assembly of a cupboard door opening from right to left. The best solution would be to screw the upper hinge to the upper hole of the top plate and the lower hinge to the lower hole of the bottom plate.
- Page 14 Cupboard door preparation For countersinking the door, it is recom- mended to call a professional. Align the cupboard door to the furniture correctly. Measure the distance X to fix the height of the hole to countersink the upper hinge. The centre of the hole Y should be at the same height of the stroke on the hinge support.
- Page 15 Mounting the door Fix the hinges to the hinge supports on the appli- ance by means of the two supplied screws B. The hinges can be adjusted to compen- sate for possible uneven thickness of the door. Counter-magnet The appliance is pre set for a magnetic closure. For a correct closure: 1.
-
Page 16: Control Panel Description
The manufacturer does not accept any responsibility for damage or injury through failure to comply with the above safety precaution. CONTROL PANEL CONTROL PANEL DESCRIPTION Centrifug. reduction options touch button and The permanent options are set by permanent Child Lock option holding pressed the relative button for Temperatura touch button 3 seconds at least. -
Page 17: Dial And Buttons
DISPLAY Door locked indicator. Child safety lock indicator. The digital indicator can show: • Programme duration: e. g. • Delay time: e. g. • Cycle end: • Warning code: e.g. • Temperature: • Spin speed: and no spin in- dicator •... -
Page 18: Child Lock
creasing. The door stays locked. The drum turns This option can increase the regularly to reduce creasing. You must drain the programme duration. water to unlock the door. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs PERMANENT ACLARADO EXTRA are available. -
Page 19: Programme Chart
PROGRAMMES PROGRAMME CHART Reference spin Programme speed Maximum Programme description Default temperature Spin speed load (Type of load and level of soiling) Temperature range range (rpm) 1400 rpm 8.0 kg White cotton and fast-coloured cotton. Normally (1400 - soiled items. The energy consumption decreases and Eco 40-60 400) the time of the washing programme is extended, en-... - Page 20 Reference spin Programme speed Maximum Programme description Default temperature Spin speed load (Type of load and level of soiling) Temperature range range (rpm) 1200 rpm Maintenance cycle with hot water to clean and freshen the drum and to remove residue that may cause odour. Limp.
- Page 21 Reference spin Programme speed Maximum Programme description Default temperature Spin speed load (Type of load and level of soiling) Temperature range range (rpm) 1200 rpm 1.5 kg Machine washable wool, hand washable wool (1200 - and other fabrics with «hand washing» care sym- Lana\Lãs 400) 40 °C...
- Page 22 Programme ■ ■ ■ Centrif./Drenar ■ ■ ■ ■ ■ Aclarado/ Enxag. ■ ■ ■ Limp. Máquina ■ ■ ■ Edredón/Edre- dão ■ ■ ■ 20 min. - 3 kg ■ ■ ■ ■ ■ ■ Sport ■ ■ ■ ■...
-
Page 23: Acoustic Signals
Universal pow- Liquid for colour- Delicates wool- Programme Liquid Universal Special lens Edredón/ ▲ ▲ Edredão 20 min. - 3 ▲ ▲ ▲ ▲ ▲ Sport ▲ ▲ ▲ Denim ▲ ▲ Lana\Lãs 1) At temperature higher than 60 °C the use of powder detergent is recommended. ▲... -
Page 24: Before First Use
If the procedure does not work (due to timeout, wrong programme dial position or wrong keys combination), switch the appliance off and repeat sequence from the beginning. BEFORE FIRST USE 1. Make sure that the electrical power is available 4. Set and start a programme for cotton at the and the water tap is open. -
Page 25: Check The Position Of The Detergent Flap
6. Carefully close the detergent dispenser. - Flap for powder or liquid detergent. Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level ( ). -
Page 26: Interrupting A Programme And Changing The Options
Cancelling the delay start after the CANCELLING A RUNNING PROGRAMME countdown has started 1. Press the button On/Off to cancel the To cancel the delay start: programme and to deactivate the appliance. 2. Press the button On/Off again to activate the 1. -
Page 27: Stand-By Function
3. When the programme is completed and the When you activate the appliance again, the display shows the end of door locked indicator goes off, you can the previous programme. Turn the open the door. programme dial to set a new cycle. 4. -
Page 28: Stubborn Stains
c. press the Inicio/Pausa button. The spin • Use only detergents and other treatments phase continues. specially made for washing machines. First, • Button up pillowcases, close zippers, hooks and follow these generic rules: poppers. Tie up belts, cords, shoelaces, ribbons –... -
Page 29: Care And Cleaning
• With adequate pre-treatment, stains and limited softener for washing machines. In areas where the soiling can be removed; the laundry can then be water hardness is soft it is not necessary to use a washed at a lower temperature. water softener. -
Page 30: Maintenance Wash
Clean the drum with special products for stainless Always follow the instructions that you steel. find on the packaging of the product. Always follow the instructions that you find on the packaging of the product. MAINTENANCE WASH Do not clean the drum with acidic The repeated and prolonged use of low descaling products, scouring products temperature programmes can cause detergent... -
Page 31: Cleaning The Drain Pump
3. Make sure that all detergent residue is removed CLEANING THE DRAIN PUMP from the upper and lower part of the recess. WARNING! Disconnect the mains Use a small brush to clean the recess. plug from the mains socket. Regularly check the drain pump filter and make sure that it is clean. - Page 32 2. Place a suitable bowl below the drain pump access to collect the water that flows out. Always keep a rag nearby to dry up any water spill- ages when removing the filter. 180˚ 3. Turn the filter 180 degrees in anti-clockwise direc- tion to open it, without removing.
- Page 33 8. Clean the filter under the water tap. 9. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter cor- rectly to prevent leakages. 10. Close the pump cover. When you drain the water with the emergency drain procedure, you must activate the drain system again: 1.
-
Page 34: Emergency Drain
CLEANING THE INLET HOSE AND THE VALVE FILTER 45° 20° EMERGENCY DRAIN 1. Disconnect the mains plug from the mains socket. If the appliance cannot drain the water, carry out 2. Close the water tap. the same procedure, described in 'Cleaning the 3. - Page 35 ALARM CODES AND POSSIBLE FAILURES The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables). WARNING! Deactivate the appliance before carrying out any check. With some problems, the display shows an alarm code and the Inicio/ Pausa button may flash continuously: If the appliance is overloaded, remove some items from the drum...
- Page 36 • The programme was not finished properly or the appliance stopped too early. Switch the appliance off and on again. Internal fail. No commu- • If the alarm code appears again, contact the Authorised Service Cen- nication between elec- tre. tronic elements of the appliance.
-
Page 37: Emergency Door Opening
Problem Possible solution • Make sure the levelling of the appliance is correct. Refer to "Installa- The appliance makes an tion instruction". unusual noise and vi- • Make sure that the packaging and/or the transit bolts are removed. brates. Refer to "Installation instruction". •... -
Page 38: Consumption Values
4. Take out the laundry and then close the appliance door. CONSUMPTION VALUES INTRODUCTION See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the infor- mation related to the performance of the appliance in the EU EPREL database. - Page 39 ACCORDING TO COMMISSION REGULATION EU 2019/2023 Eco 40-60 pro- Litres hh:mm °C gramme Full load 0.800 55.0 03:20 53.00 42.0 1351 Half load 0.500 45.0 02:30 53.00 33.0 1351 Quarter load 0.300 35.0 02:20 54.00 31.0 1351 1) Maximum spin speed. Power consumption in different modes Off (W) Stand-by (W)
-
Page 40: Environmental Concerns
ENVIRONMENTAL CONCERNS with the symbol with the household waste. Recycle materials with the symbol . Put the Return the product to your local recycling facility or packaging in relevant containers to recycle it. Help contact your municipal office. protect the environment and human health by recycling waste of electrical and electronic appliances. - Page 44 WWW.ZANUSSI.COM/SHOP...
