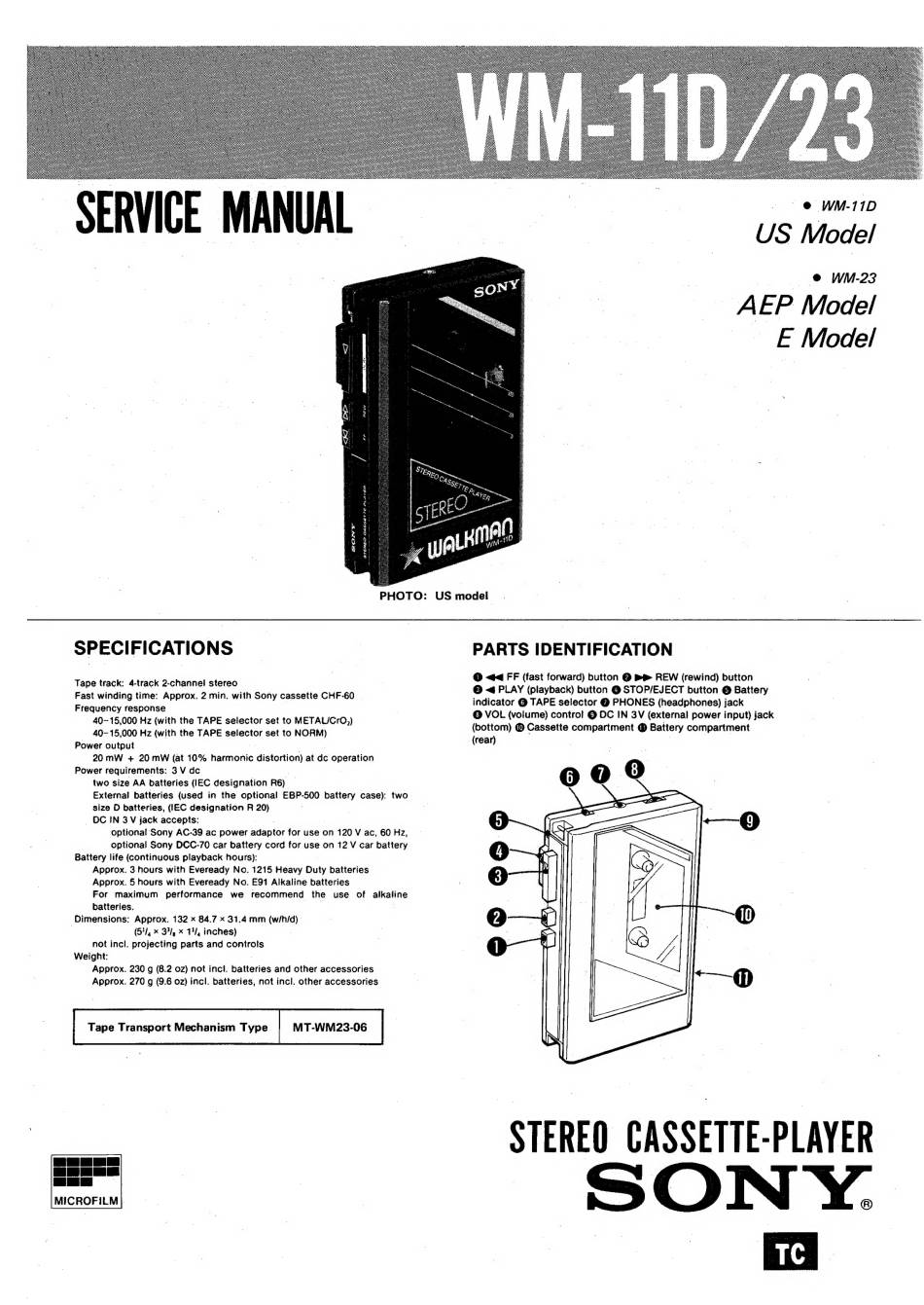

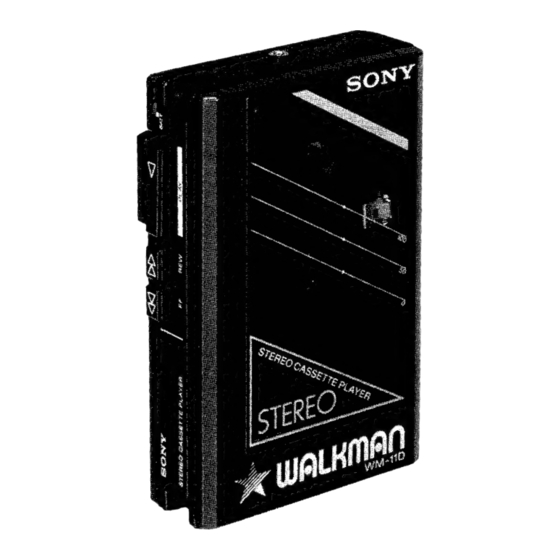

Sony WM-11D Service Manual

® WM-11D
US Model
© WM-23
_ AEP Model
~ E Model
STEED GRAEBETIE PLA
PHOTO: US model ;
SPECIFICATIONS | _ PARTS IDENTIFICATION
@ <4 FF (fast forward) button @ me REW (rewind) button
© <4 PLAY (playback) button @ STOP/EJECT button @ Battery
indicator @ TAPE selector @ PHONES (headphones) jack
© VOL (volume) contro! @ DC IN 3V (external power input) jack
Tape track: 4-track 2-channel stereo
Fast winding time: Approx. 2 min. with Sony cassette CHF-60
Frequency response
40-15,000 Hz (with the TAPE selector set to METAL/CrO,)
40- 15,000 Hz (with the TAPE selector set to NORM) aa y.@ aeeotleccompariment:@ battery compariment
Power output eae .
20 mW + 20 mW (at 10% harmonic distortion) at dc operation
Power requirements: 3 V dc
two size AA batteries (IEC designation R6)
External batteries (used in the optional EBP-500 battery case): two
size D batteries, (IEC designation R 20)
DC IN 3 V jack accepts: 1 ;
optional Sony AC-39 ac power adaptor for use on 120 V ac, 60 Hz,
optional Sony DCC-70 car battery cord for use on 12 V car battery
Battery life (continuous playback hours):
Approx. 3 hours with Eveready No. 1215 Heavy Duty batteries
Approx. 5 hours with Eveready No. E91 Alkaline batteries
For maximum performance we recommend the use of alkaline
batteries. | :
Dimensions: Approx. 132 x 84.7 x 31.4 mm (wihid) -
| (54, x 3%, x 14, inches)
not incl. projecting parts and controls
Weight:
Approx. 230 g (8.2 0z) not inci. batteries and other accessories
Approx. 270 g (9.6 02} incl. batteries, not incl. other accessories
Tape Transport Mechanism Type MT-WM23-06
STEREO CASSETTE-PLAYER
1 TC
