- Page 1 G Series LCD Monitor G244F E2 (3BB4) G244PF E2 (3BB4) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................8 Connecting the Monitor to PC ................11 OSD Setup ........................13 Navi Key ........................ 13 Hot Key ........................14 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents G244F E2, G244PF E2 Monitor Documentation Quick Start Guide Accessories Stand with Screw(s) -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective packaging. Align the stand bracket to the monitor groove. 2. Tighten the stand bracket with screws. 3. Connect the base to the stand and tighten the base screw to secure the base. 4. - Page 5 G244PF E2 ⚠ Important Place the monitor on a soft, protected surface to avoid scratching the display panel. ∙ Do not use any sharp objects on the panel. ∙ The groove for installing the stand bracket can also be used for wall mount. Please ∙...
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. G244F E2 -5° 20°... - Page 7 G244PF E2 -5° 20° 45° 45° 90° 90° 130mm...
-
Page 8: Monitor Overview
Monitor Overview G244F E2 比例 25.400... - Page 9 G244PF E2...
- Page 10 Power LED Lit in white after the monitor is turned on. If no signal input, the LED will turn into orange. Lit in orange when the monitor is in Stand-by mode. Power Button & Navi Key Cable Routing Hole HDMI™ Connector Supports HDMI™...
-
Page 11: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the external power supply & power cord. (Figure A) 4. Connect the external power supply to the monitor power jack. (Figure B) 5. - Page 12 G244PF E2...
-
Page 13: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. G244F E2 比例... -
Page 14: Hot Key
G244PF E2 Up/Down/Left/Right: ∙ selecting function menus and items ∙ adjusting function values ∙ entering into/exiting from function menus Press (OK): ∙ launching the On-Screen Display (OSD) ∙ entering submenus ∙ confirming a selection or setting Hot Key ∙ Users may enter into preset function menus by moving the Navi Key up, down, left or right when the OSD menu is inactive. -
Page 15: Osd Menus
OSD Menus ⚠ Important The following settings will be grayed out when HDR signals are received: Night Vision HDCR ∙ ∙ MPRT Brightness ∙ ∙ Low Blue Light Contrast ∙ ∙ Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙... - Page 16 1st Level Menu 2nd/3rd Level Menu Description Response Time Normal ∙ Setting to Fastest will reach the shortest response time and help improve blurred images Fast when playing very fast games. Fastest MPRT ∙ MPRT is available when the refresh rate is over 85Hz.
-
Page 17: Professional
1st Level Menu 2nd/3rd Level Menu Description Screen Assistance None ∙ Through AI algorithm, this function enhances the visibility of in-game crosshair. ∙ Users can select the color and position of the crosshair. Adaptive-Sync ∙ Adaptive-Sync prevents screen tearing. ∙ Activating Adaptive-Sync will affect: Affected Function Function Status »... -
Page 18: Image
1st Level Menu 2nd Level Menu Description HDCR ∙ HDCR enhances image quality by increasing the contrast of images. ∙ Activating HDCR will affect: Affected Function Function Status » MPRT Set to OFF » Brightness Unable to select MPRT ∙ MPRT is available when the refresh rate is over 85Hz. ∙... -
Page 19: Input Source
1st Level Menu 2nd/3rd Level Menu Description Screen Size Auto ∙ Users can adjust Screen Size in any mode, any resolution and any screen refresh rate. 16:9 Input Source 1st Level Menu 2nd Level Menu Description HDMI™ 1 ∙ Users can adjust Input Source in any mode. HDMI™... -
Page 20: Setting
Setting 1st Level Menu 2nd Level Menu Description Language 繁體中文 ∙ Users have to press the OK Button to confirm and apply the Language setting. English ∙ Language is an independent setting. Users’ own language setting will override the factory default. Français When users set Reset to Yes, Language will not be changed. - Page 21 1st Level Menu 2nd Level Menu Description HDMI™ CEC ∙ HDMI™ CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, Xbox Series X|S consoles and various audio-visual devices that are CEC-capable. ∙ If HDMI™ CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 22: Specifications
Specifications Monitor G244F E2 G244PF E2 Size 23.8 inch Flat Curvature Panel Type Rapid IPS Resolution 1920 x 1080 (FHD) Aspect Ratio 16:9 Brightness 300 nits (typ.) Contrast Ratio 1000:1 Refresh Rate 180Hz Response Time ∙ 1ms (MPRT) ∙ 1ms (GTG) ∙... - Page 23 Monitor G244F E2 G244PF E2 VESA Mounting ∙ Plate Type: 75 x 75 mm ∙ Screw Type: M4 x 10 mm • Thread Diameter: 4 mm • Thread Pitch: 0.7 mm • Thread Length: 10 mm Dimension (W x D x H) 541.9 x 231.9 x 424.3 mm 541.9 x 196.5 x 399 mm 4.2 kg...
-
Page 24: Preset Display Modes
Preset Display Modes ⚠ Important All information is subject to change without prior notice. G244F E2, G244PF E2 Standard Resolution HDMI™ 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024... -
Page 25: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 26: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 27 ∙ If any of the following situations arises, get the device checked by service personnel: • The power cord or plug is damaged. • Liquid has penetrated into the device. • The device has been exposed to moisture. • The device does not work well or you can not get it working according to the User Guide.
-
Page 28: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 29: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 30 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 31 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
Need help?
Do you have a question about the G244F E2 (3BB4) and is the answer not in the manual?
Questions and answers

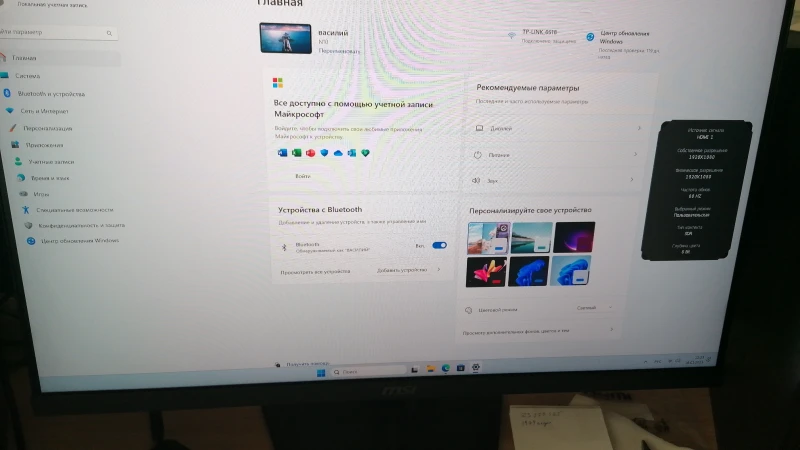

Как убрать с монитора окно в правом углу
