Section 15
Connecting to other Equipment
4.
Connect the printer's AC input and tum the printer on.
Select T-Jet (ThinkJet) from the Ser. (Serial) portion of the Model 520A
Options Menu.
6.
Refer to the ThinkJet Owner's Manual for further printer details.
Connecting the Model 315 Printer
15.2
To connect the Model 315 Printer to the Model 520A:
1.
Set the dip switches on the Model 315 rear panel.
The settings are; 1-5 up (off), 6-7 down (on), and 8 up (off).
2.
Connect the printer interface cable, PN:4913-00, to the RS232C connector!
on the Model 520A. Connect the other end of the cable to the Model 315.
POWER SWITCH

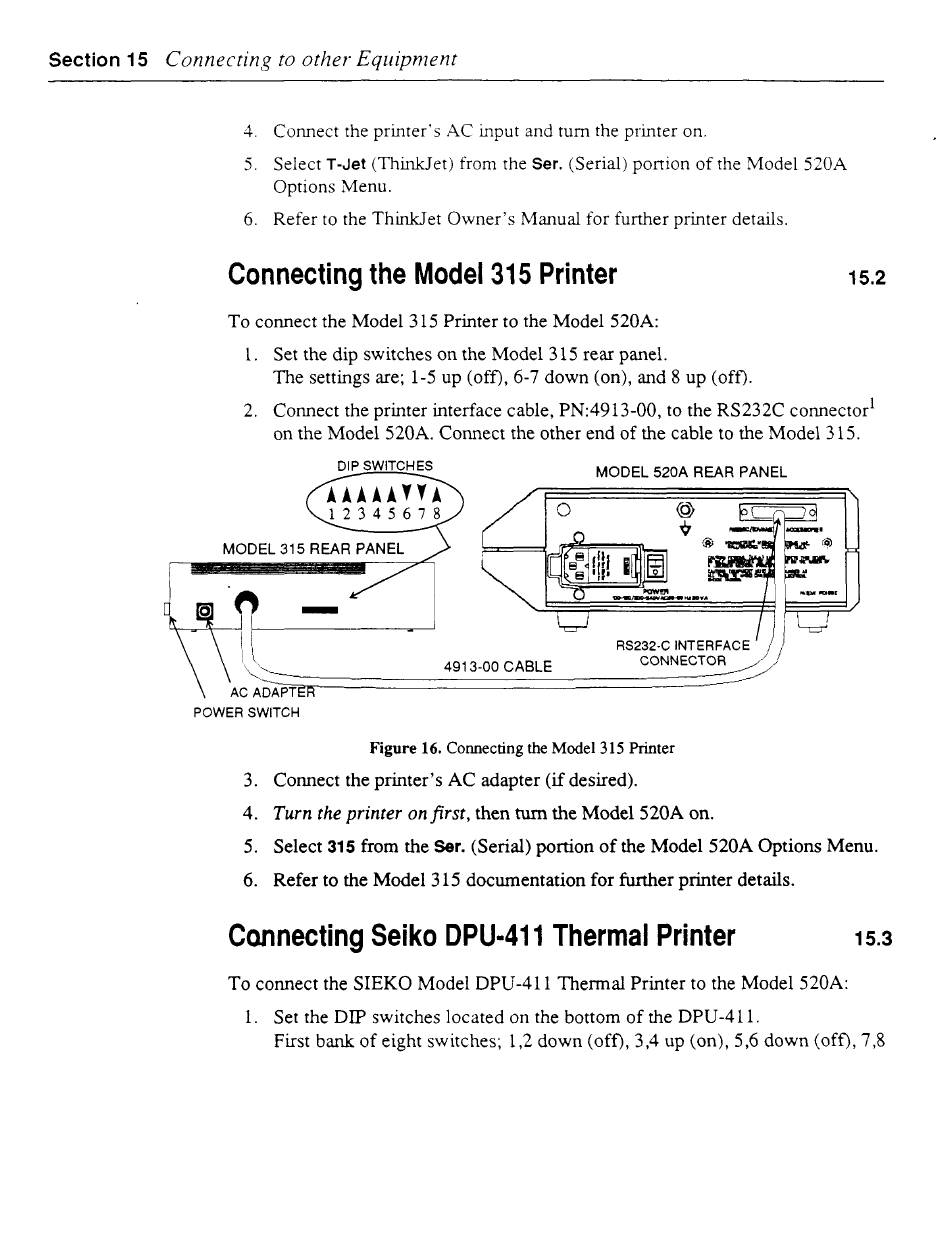

Figure 16. Connecting the Model 315 Printer
3.
Connect the printer's AC adapter (if desired).
4.
Turn the printer on first, then tum the Model 520A on.
5.
Select 315 from the Ser. (Serial) portion of the Model 520A Options Menu.
6.
Refer to the Model 315 documentation for further printer details.
Cannecting Seiko DPU-411 Thermal Printer
15.3
To connect the SIEKO Model DPU-411 Thermal Printer to the Model 520A:
1.
Set the DIP switches located on the bottom of the DPU-411.
First bank of eight switches; 1,2 down (off), 3,4 up (on), 5,6 down (off), 7,8
