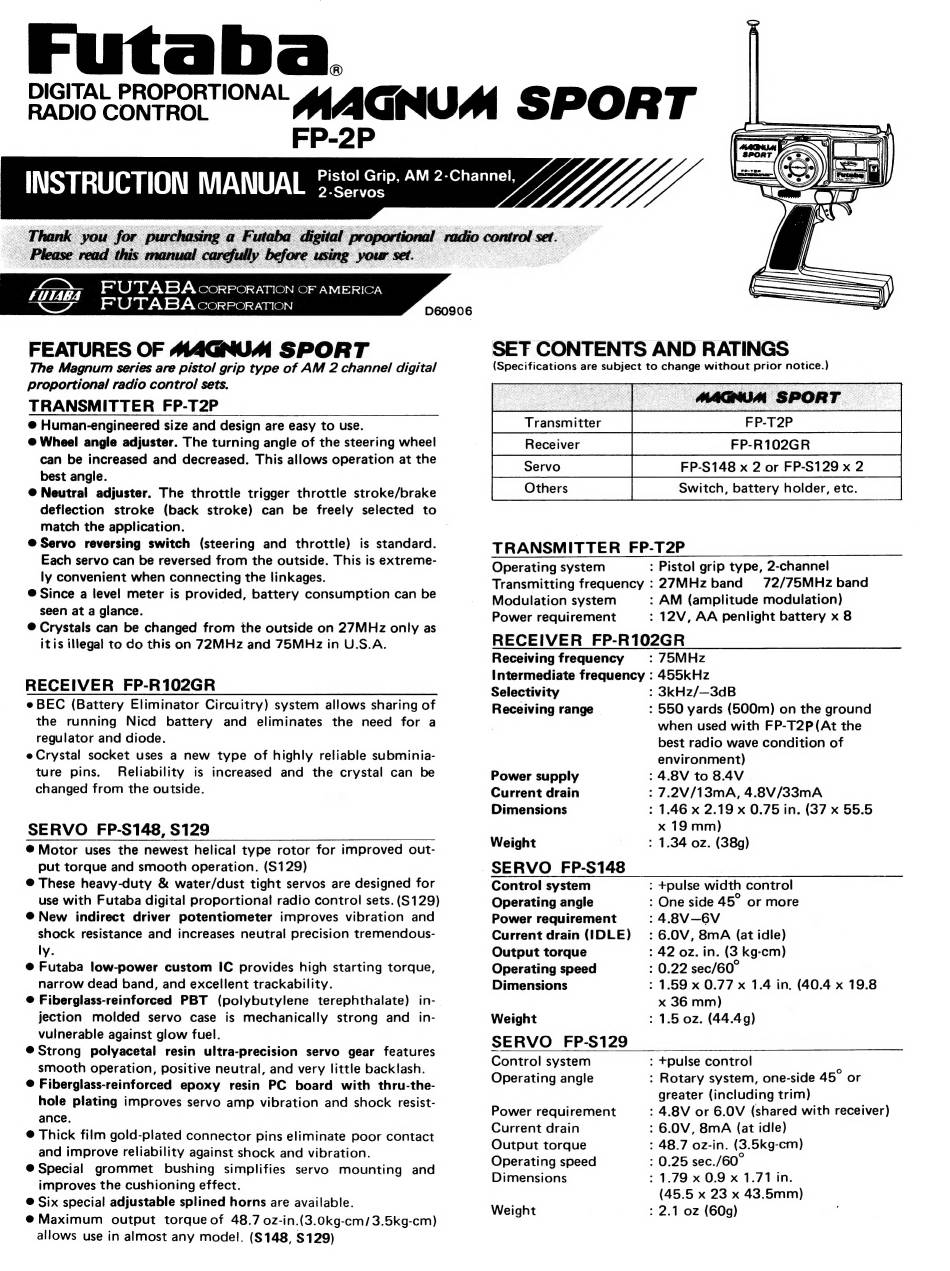

FUTABA MAGNUM SPORT FP-2P Instruction Manual

Futaba.
DIGITAL PROPORTIONAL
RADIO CONTROL
FP-2P
FUTABA CORPORATION OF AMERICA
FUTABA
"WT FUTABA cCoRPoRATION
FEATURES OF MAGNUM SPORT
The Magnum series are pistol grip type of AM 2 channel digital
proportional radio control sets.
TRANSMITTER FP-T2P
@ Human-engineered size and design are easy to use.
@ Wheel angle adjuster. The turning angle of the steering wheel
can be increased and decreased. This allows operation at the
best angle.
© Neutral adjuster. The throttle trigger throttle stroke/brake
deflection stroke (back stroke) can be freely selected to
match the application.
@ Servo reversing switch (steering and throttle) is standard.
Each servo can be reversed from the outside. This is extreme-
ly convenient when connecting the linkages.
@ Since a level meter is provided, battery consumption can be
seen at a glance.
@ Crystals can be changed from the outside on 27MHz only as
itis illegal to do this on 72MHz and 75MHz in U.S.A.
RECEIVER FP-R102GR
e BEC (Battery Eliminator Circuitry) system allows sharing of
the running Nicd battery and eliminates the need for a
regulator and diode.
e Crystal socket uses a new type of highly reliable subminia-
ture pins. Reliability is increased and the crystal can be
changed from the outside.
SERVO FP-S148, S129
@ Motor uses the newest helical type rotor for improved out-
put torque and smooth operation. (S129)
@ These heavy-duty & water/dust tight servos are designed for
use with Futaba digital proportional radio control sets. (S129)
@ New indirect driver potentiometer improves vibration and
shock resistance and increases neutral precision tremendous-
ly.
@ Futaba low-power custom IC provides high starting torque,
narrow dead band, and excellent trackability.
© Fiberglass-reinforced PBT (polybutylene terephthalate) in-
jection molded servo case is mechanically strong and in-
vulnerable against glow fuel.
© Strong polyacetal resin ultra-precision servo gear features
smooth operation, positive neutral, and very little backlash.
@ Fiberglass-reinforced epoxy resin PC board with thru-the-
hole plating improves servo amp vibration and shock resist-
ance.
@ Thick film gold-plated connector pins eliminate poor contact
and improve reliability against shock and vibration.
@ Special grommet bushing simplifies servo mounting and
improves the cushioning effect.
© Six special adjustable splined horns are available.
@ Maximum output torque of 48.7 0z-in.(3.0kg-cm/3.5kg-cm)
allows use in almost any model. (S148, $129)
D60906
SET CONTENTS AND RATINGS
(Specifications are subject to change without prior notice.)
Switch, battery holder, etc.
TRANSMITTER FP-T2P
Operating system
Transmitting frequency : 27MHz band
: AM (amplitude modulation)
: 12V, AA penlight battery x 8
Modulation system
Power requirement
: Pistol grip type, 2-channel
72/75MHz band
RECEIVER FP-R102GR
Receiving frequency
Intermediate frequency :
: 3kHz/—3dB
: 550 yards (500m) on the ground
Selectivity
Receiving range
Power supply
Current drain
Dimensions
Weight
SERVO FP-S148
Control system
Operating angle
Power requirement
Current drain (IDLE)
Output torque
Operating speed
Dimensions
Weight
SERVO FP-S129
Control system
Operating angle
Power requirement
Current drain
Output torque
Operating speed
Dimensions
Weight
: 75MHz
455kHz
when used with FP-T2P(At the
best radio wave condition of
environment)
: 4.8V to 8.4V
: 7.2V/13mA, 4.8V/33mA
: 1.46 x 2.19 x 0.75 in. (37 x 55.5
x 19 mm)
: 1.34 oz. (38g)
: +pulse width control
: One side 45° or more
: 4.8V—6V
: 6.0V, 8mA (at idle)
: 42 oz. in. (3 kg-cm)
: 0.22 sec/60°
: 1.59 x 0.77 x 1.4 in. (40.4 x 19.8
x 36 mm)
: 1.5 oz. (44.4g)
: tpulse control
. o
: Rotary system, one-side 45 or
greater (including trim)
: 4.8V or 6.0V (shared with receiver)
: 6.0V, 8mA (at idle)
: 48.7 oz-in. (3.5kg-cm)
: 0.25 sec./60°
: 1.79 x 0.9 x 1.71 in.
(45.5 x 23 x 43.5mm)
: 2.1 oz (60g)
