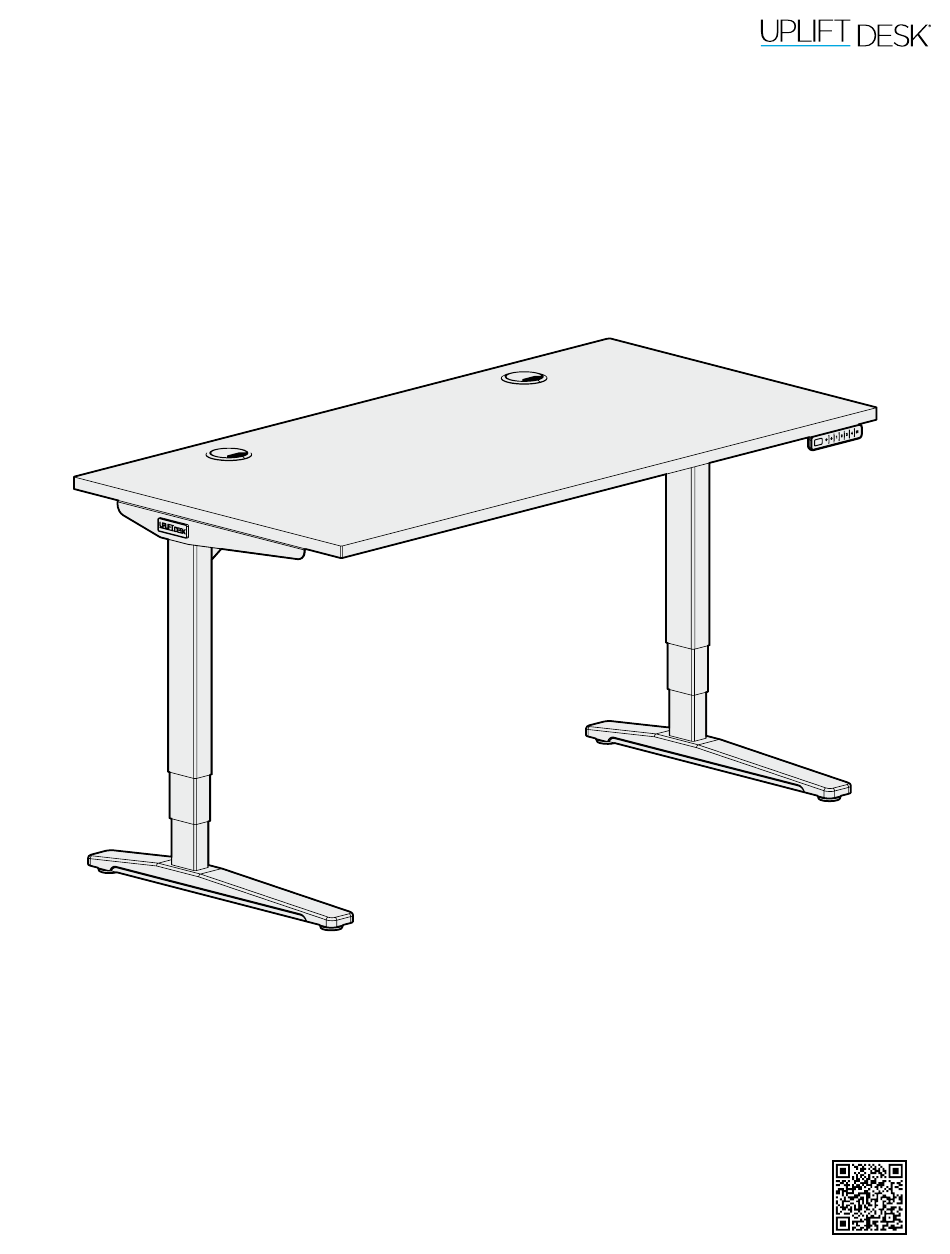

- Page 1 V2 2-Leg Standing Desk F500 (C-Frame & T-Frame) C-Frame shown Scan QR code for For assembly assistance, product webpage visit upliftdesk.com/contact, call 800-349-3839, or email info@upliftdesk.com ©2023 UPLIFT Desk®. All Rights Reserved US patent no. 11,109,672 B2...
- Page 2 WARNING: Never use the desk if the power cord or plug becomes damaged as this can cause a risk of fire and electric shock. Contact UPLIFT Desk for a replacement power cord if it is damaged in any way. WARNING: Risk of serious injury or death.
- Page 3 Desk Spacing and Clearance Distances Desk image is for reference only and may not match your desk model. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 4: Package Contents
Package Contents F500 Main Box Components Crossbar End Crossbar Rail Control Box Keypad qty 2 qty 2 qty 2 Type varies Power Cable Anchor Plate Wire Extension Cable qty 2 Management Tray F500 C-Frame Feet & Side Brackets Box Components Foot Side Bracket Logo Plate... - Page 5 Parts Diagram Side Bracket Crossbar End Crossbar Rail M8 x 8 Set Screw M6 x 10 Machine Screw M6 x 14 Machine Screw Logo Plate Foot C-Frame shown © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 6: Step 1 - Inventory Of Parts
Assembly Instructions Step 1 - Inventory of Parts A. To avoid damage to your floor or desktop, assemble the desk on a clean carpet or blanket. B. Lay out all parts from each box and ensure you have everything listed in the package contents of this manual before throwing away any packaging. - Page 7 • C-Frames have three holes in the Side Brackets • T-Frames have two holes in the Side Brackets D. Make a pencil mark in the center of the Crossbar End hole. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 IMPORTANT: DRILL NO DEEPER THAN 1/2” to avoid drilling through your desktop. To ensure this, wrap a piece of tape around your drill bit 1/2” from the tip. Stop drilling just 0.5” before the tape touches the desktop. E. Move the Leg assembly out of the way and drill ½” deep pilot holes at your pencil marks using a 1/8”...
- Page 9 Use a Phillips Screwdriver to insert a Wood Screw through a Washer and the hole in the Crossbar End and into the pre-drilled hole in the desktop. Do not tighten completely. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 10 Attach Crossbar End (T-Frame on desktops that came with pre-drilled holes or metal threaded inserts) A. Position a Crossbar End Adapter (P3) in the orientation shown. This will be on the side of the Crossbar End facing the back of the desktop. B.
- Page 11 #10 x 5/8” Wood Screws (H14). Be careful not to overtighten the screws to avoid stripping. Basic Display Angled Keypad Advanced Comfort Angled shown for reference. Keypad shown for reference. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Step 11 - Attach Control Box The Control Box (P7) must be attached to the desk frame AC Port for the desk to function properly. We recommend placing it on the same side as the Keypad. It should be attached to the Crossbar End on either side of the desk frame.
- Page 13 C. If your Casters have a hex nut between the threaded stem and wheels, you can use a 1⁄2” (12mm) or adjustable wrench (not included) to assist with the Caster installation process. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 14 Attach Cable Mounts Ten Cable Mounts (H9) are provided with your desk to attach under the desktop and organize cables. Organizing cables improves the appearance of your desk and prevents cables from snagging on anything while the desk is moving up and down.
- Page 15 Install Accessory Anchor Plates (optional) Some UPLIFT Desk accessories are designed to attach to the patented mounting points located on front and back of the Crossbar Ends. Some of these accessories require the use of the included Anchor Plates (P11). Refer to the instructions provided with each accessory for specific mounting instructions.
- Page 16 Insert Grommet Covers (optional) Follow the steps below for installing Grommet Covers, if a different grommet option was selected, follow the instructions included with your grommet option. A. Place the Grommet Covers over the grommet holes and press down until the edges of the Grommet Covers are flush with the desktop surface.
-
Page 17: Keypad Lock
If you have an Advanced Keypad, see the Programming section below for further information on how to use your Keypad. Programming (Advanced Keypads only) These UPLIFT Desk programming instructions are compatible with all UPLIFT Advanced Keypads except the Advanced Paddle Keypad. -
Page 18: Units Of Measurement
Units of Measurement One-Touch, Constant-Touch, or Double-Tap Switch between inches and centimeters on your display: One-touch is the default setting of the control box and 1. Hold the down button until the desk reaches its lowest requires only a single touch of a keypad button to move position. -
Page 19: Starting And Stopping
If the error message persists after performing the reset procedure or if there is a height difference between the Legs of more than 1.5”, email us at support@upliftdesk.com or call 800-349-3839. Perform the desk reset procedure any time the desk is unplugged or loses power. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 20 Study this manual carefully. If this product is sold, please provide this manual to the buyer, installers, or support personnel operating the product. Copyright Notice: This manual is a component of this UPLIFT Desk product. This manual is a ©...
