Summary of Contents for Philips AC1758

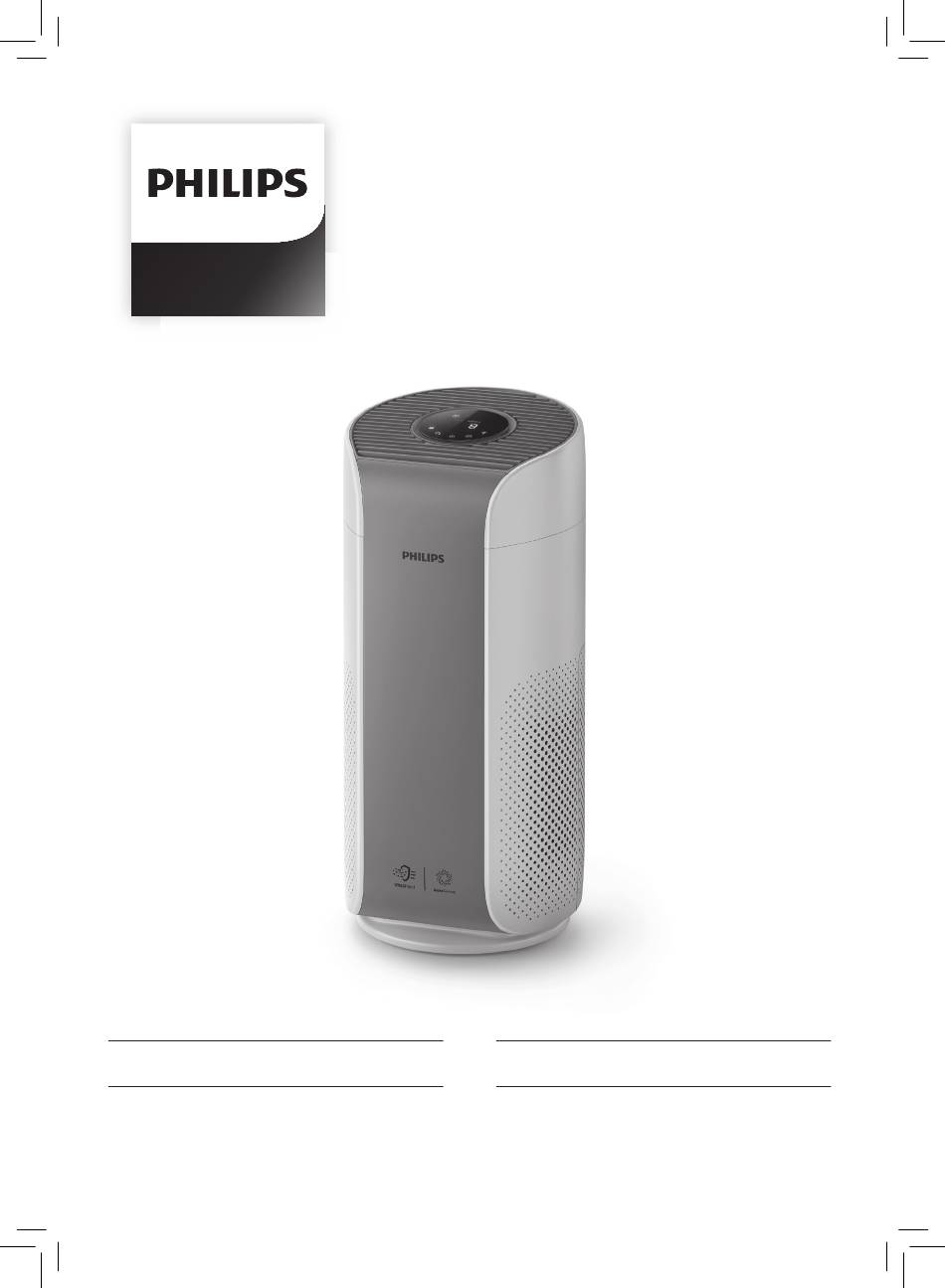

  • Page 1 AC1758 ZH-S User manual 用户手册...
  • Page 3: Table Of Contents

    目录 您的空气净化器 �������������������������������������������������������������������� 2 产品概述 ���������������������������������������������������������������������������������������������������������������� 2 控件概述 ����������������������������������������������������������������������������������������������������������������3 使用入门 ��������������������������������������������������������������������������������� 3 安装滤网 ����������������������������������������������������������������������������������������������������������������3 使用空气净化器 �������������������������������������������������������������������� 4 空气质量指示灯 �������������������������������������������������������������������������������������������������4 打开和关闭 �����������������������������������������������������������������������������������������������������������5 更改模式设置 ������������������������������������������������������������������������������������������������������6 切换显示指示灯 ������������������������������������������������������������������������������������������������� 7 使用灯光开/关功能 ������������������������������������������������������������������������������������������ 7 检查滤网状态 ������������������������������������������������������������������������������������������������������8 清洁和维护 �����������������������������������������������������������������������������8 清洁空气净化器的机身 �����������������������������������������������������������������������������������8 清洁微粒感应器 �������������������������������������������������������������������������������������������������8 清洁滤网表面 ������������������������������������������������������������������������������������������������������9 更换滤网 ��������������������������������������������������������������������������������������������������������������10 滤网重置...
  • Page 4: 您的空气净化器

    您的空气净化器 感谢您的惠顾,欢迎光临飞利浦! 为了您能充分享受飞利浦提供的支持,请在以下网站注册您的产品: www�philips�com/welcome。 产品概述 出风口 控制面板 微粒感应器 纳米级高效劲护滤网 系列 3 (FY2122/00) 后盖 ZH-S...
  • Page 5: 控件概述

    控件概述 模式显示: 过敏原 自动( ) 滤网清洁 提醒 劲速( ) 柔风( ) 滤网更换 提醒 睡眠( ) 滤网状态/ 重置按钮 灯光开/关按钮 显示切换按钮 模式转换按钮 开/关按钮 2 使用入门 安装滤网 注意:确保先从电源插座上拔下空气净化器的插头,然后再安装滤网。 拉开后盖,并将其从产品上取下。 从产品上拉下滤网。 拆掉空气净化滤网的所有包装材料。 把滤网放回产品内。 重新装上后盖。 ZH-S...
  • Page 6: 使用空气净化器

    3 使用空气净化器 空气质量指示灯 大约 30 秒后,微粒感应器将选择与环境空气悬浮颗粒质量相对应的颜色。 注意:空气质量指示灯的颜色取决于 PM2�5、过敏原和指标读数中危险指数最高的 那个参数。 PM2�5 是指尺寸小于 2�5 微米的悬浮颗粒污染物。 PM2�5 水平 空气质量指示灯颜色 空气质量级别 ≤35 蓝色 良好 36 - 75 蓝紫色 一般 76 - 115 紫红色 较差 >115 红色 很差 过敏原是指室内空气过敏原的潜在风险级别。 过敏原级别 空气质量指示灯颜色 空气质量级别 蓝色 良好 蓝紫色 一般...
  • Page 7: 打开和关闭

    打开和关闭 注意: • 将空气净化器的插头插入电源插座。 • 如果空气净化器关闭后仍与电源插座连接,当再次打开时,它将恢复关闭前的运 行(即设置不变)。 过敏原 • 启动过程中,屏幕上会显示 • 轻触 可打开空气净化器。 “ ”。然后,空气净化器会在 测量空气质量后显示 PM2�5/过敏 原级别。 过敏原 过敏原 • 空气净化器将在自动模式下工作,并 • 轻触并按住 按钮 3 秒可关闭空气 且屏幕上会显示 PM2�5。 净化器。 ZH-S...
  • Page 8: 更改模式设置

    更改模式设置 您可以轻触 按钮 选择自动模式、劲速模式、柔风模式或睡眠模式。 过敏原 过敏原 劲速模式 ( ): 自动模式 ( ): 空气净化器会以最高 空气净化器会根据环境 速度运行。 空气质量自动调节风速。 过敏原 柔风模式 ( ): 睡眠模式 ( ): 空气净化器会以低速 空气净化器会以低速 运行。 安静运行。3 秒钟后,屏幕会关闭。 注意: • 在自动模式下,设备支持全天候智能托管功能: • 当空气净化器检测到当前室内 PM2�5 小于等于 24 且持续时间超过 1 分钟后, 空气净化器将进入静默检测状态; •...
  • Page 9: 切换显示指示灯

    切换显示指示灯 注意: • 默认情况下,产品会显示 PM2�5 级别。 过敏原 过敏原 使用灯光开/关功能 过敏原 您可以手动轻触灯光开/关按钮 来关闭所有指示灯和控制面板。轻触任何按钮来唤 醒所有指示灯。 借助光传感器: • 控制面板可根据环境光线自动打开、关闭或变暗。 • 当环境光线变暗时,控制面板将关闭或变暗。 您可以轻触任何按钮来唤醒所有指示灯。如果没有进一步操作,所有的指示灯将再次 关闭或变暗,以与环境光线保持协调。 ZH-S...
  • Page 10: 检查滤网状态

    检查滤网状态 • 轻触滤网状态检查/重置 按钮可查看滤网使用寿命状态。 显示屏 (%) 图标颜色 16-100 蓝色 9-15 蓝紫色 紫红色 红色 注意:如果 3 秒后没有操作,产品将返回正常显示。 4 清洁和维护 注意: • 请勿尝试用吸尘器清洁微粒感应器。 • 在进行以下操作之前,先关闭空气净化器并从电源插座上拔下插头。 清洁空气净化器的机身 使用柔软的干布清洁空气净化器的内部和外部及出风口。 清洁微粒感应器 每 2 个月清洁一次微粒感应器,确保产品以理想性能运行。 使用软毛刷清洁微粒感应器进风口 使用湿棉签清洁微粒感应器。使用干 和出风口。 棉签彻底擦干所有部件。 ZH-S...
  • Page 11: 清洁滤网表面

    清洁滤网表面 当屏幕上显示滤网清洁提醒 时,用吸尘器清洁滤 网表面。 过敏原 拉开后盖, 从产品上拉 使用吸尘器 把滤网放回 重新装上 并将其从产 下滤网。 清洁滤网 产品内。 后盖。 品上取下。 表面。 过敏原 轻触并按住滤网状态/ 清洁滤网后, 轻触 按钮启动 3 秒可重置 重置按钮 彻底清洗双手。 产品。 滤网清洁时间。 ZH-S...
  • Page 12: 更换滤网

    更换滤网 注意: • 滤网不可水洗,也不可重复使用。 • 不要闻滤网的气味,因为滤网上积满了从空气中过滤的污染物。 当滤网需要更换时,滤网更换提醒 将呈红色 过敏原 亮起。 用飞利浦纳米级高效劲护滤网系列 3 (FY2122/00) 来更换该滤网,请按照“安 装滤网”一章中的步骤操作。 过敏原 轻触并按住滤网状态/ 更换滤网后, 轻触 按钮启动 3 秒可重置 重置按钮 彻底清洗双手。 产品。 滤网更换时间。 ZH-S...
  • Page 13: 滤网重置

    滤网重置 您也可以在屏幕上显示滤网更换提醒 ( ) 之前更换滤网。在更换滤网后,您需要手 动重置滤网使用寿命计数器。 过敏原 按钮 3 秒 通电后 15 秒内,轻触并按 轻触电源 将电源插头插入 计时器 按钮 3 秒即 钟以关闭设备并从电源 电源插座。 住 插座拔下插头。 可重置滤网的使用寿命计 数器。 5 存放 关闭空气净化器,从电源插座上拔下插头。 清洁空气净化器、微粒感应器和滤网表面(请参阅“清洁和维护”一章)。 待所有部件完全晾干后再进行存放。 将滤网装入密封的塑料袋中。 将空气净化器和滤网存放在阴凉干燥处。 拆装滤网后,务必彻底洗净双手。 ZH-S...
  • Page 14: 故障排除

    6 故障排除 本章归纳了您在使用本产品时常常遇到的问题。如果您无法根据下面的信息解决问 题,请与您所在国家/地区的客户服务中心联系。 问题 可能的解决方法 产品无法正常 • 滤网更换提醒指示灯持续亮起,但您未更换相应的滤网。 工作。 结果是本产品现在已被锁定。在此情况下,更换滤网并长按 重置滤网使用寿命计数器。 出风口排出的气流 • 滤网表面变脏。清洁滤网表面(请参阅“清洁和维护”一 比之前明显减弱。 章)。 即使在产品已经运 • 检查滤网包装材料是否已去除。 行很长时间以后, • 滤网没有放入产品内部。 确保已正确安装滤网 (FY2122/00)。 空气质量也未见显 著改善。 • 微粒感应器是湿的。室内湿度过高,因此形成了冷凝水。 确保微粒感应器清洁干燥(请参阅“清洁和维护”一章)。 • 房间面积较大或室外空气质量较差。 为了获得理想的净化性能,请在使用空气净化器时关闭 门窗。 • 室内污染源形式各异。例如,吸烟、烹饪、熏香、香水或 酒精。 • 滤网达到了使用寿命的终点。换用新滤网。 空气质量指示灯的 •...
  • Page 15 问题 可能的解决方法 产品声音过大。 • 如果产品在劲速模式下运行,这是正常现象。 • 在自动模式下,如果产品声音太大,则设备可能因为空气质 量变差而高速运行,或者您在应用程序中的个性化设置触发 了较快的风扇速度。您可以选择睡眠模式,或更改应用程序 中的设置。 • 如果有异物进入出风口,则还可能会发出较大异常的声音。 请立即关闭产品,倒置产品,以从产品中清除异物。 • 如果产品发出异常的声音,请联系您所在国家/地区的客户 服务中心。 我已经更换过了滤 • 可能是您未重置滤网使用寿命计数器。启动产品。然后轻触 并按住重置按钮 ( ) 3 秒钟。 网,但是产品还是 一直指示需要更换 滤网。 屏幕上显示错误代 • 马达出现故障。请与您所在国家/地区的客户服务中心 码“E1”。 联系。 ZH-S...
  • Page 16 Contents Your air purifier ����������������������������������������������������������������� 15 Product overview ������������������������������������������������������������������������������������������ 15 Controls overview �����������������������������������������������������������������������������������������16 Getting started ����������������������������������������������������������������� 16 Installing the filter �����������������������������������������������������������������������������������������16 Using the air purifier ��������������������������������������������������������17 Air quality light ������������������������������������������������������������������������������������������������17 Turning On and Off ��������������������������������������������������������������������������������������18 Changing the mode setting �������������������������������������������������������������������19 Switching the display indicator �����������������������������������������������������������20 Using the light on/off function ������������������������������������������������������������20 Checking the filter status �������������������������������������������������������������������������...
  • Page 17: Your Air Purifier

    Your air purifier Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www�philips�com/welcome� Product overview Air outlet Control panel Particle sensor NanoProtect filter Series 3 (FY2122/00) Back cover...
  • Page 18: Controls Overview

    Controls overview Mode display: 过敏原 Auto ( Filter cleaning alert Turbo ( Gentle ( Filter replacement alert Sleep ( Filter status/ reset button Light on/off button Display switch button Mode switch button Power on/off button 2 Getting started Installing the filter Note: Make sure the air purifier is unplugged from the electrical outlet before installing the filter�...
  • Page 19: Using The Air Purifier

    3 Using the air purifier Air quality light After approximately 30 seconds, the particle sensor selects the color that corresponds to the surrounding air quality of airborne particles� Note: The color of the air quality light is determined by the highest risk index among PM2�5, IAI and readings�...
  • Page 20: Turning On And Off

    Turning On and Off Note: • Put the plug of the air purifier in the power socket� • If the purifier stays connected to the electrical outlet after turning OFF, the air purifier will operate under the previous settings when turned ON again� 过敏原...
  • Page 21: Changing The Mode Setting

    Changing the mode setting You can choose Auto mode, Turbo mode, Gentle mode or the Sleep mode by button � touching the 过敏原 过敏原 Turbo mode ( Auto mode ( The air purifier The air purifier operates on the highest speed� automatically adjusts the fan speed in accordance with the ambient air quality�...
  • Page 22: Switching The Display Indicator

    Switching the display indicator Note: • The appliance display PM2�5 level by default� 过敏原 过敏原 Using the light on/off function 过敏原 You can touch the light on/off button manually to turn off all lights and the control panel� Touch any button to wake up all lights� With the light sensor: •...
  • Page 23: Checking The Filter Status

    Checking the filter status • Touch the filter status check/reset button to check the filter service life status� Icon color Display (%) Blue 16-100 Blue-purple 9-15 Purple-red Note: The appliance goes back to normal display if no operations after 3 seconds� 4 Cleaning and maintenance Note: •...
  • Page 24: Cleaning The Surface Of The Filter

    Cleaning the surface of the filter Clean the surface of filter with vacuum cleaner when the filter cleaning alert display on the 过敏原 screen� Pull the Pull the Clean the Put the Reattach back filter surface of filter back the back cover and from the the filter...
  • Page 25: Replacing The Filter

    When the filter need to be replaced, the filter 过敏原 replacement alert lights up red� Replace the filter with Philips NanoProtect filter Series 3 (FY2122/00) , Please follow the step of Chapter “Installing the filter”� 过敏原 Touch and hold Wash your hands...
  • Page 26: Filter Reset

    Filter reset You can also replace the filter before filter replacement alert ( ) displays on the screen� After replacing a filter, you need to reset the filter lifetime counter manually� 过敏原 Touch the power Put the power Within 15 seconds after button for 3 seconds plug in the power power on, touch and...
  • Page 27: Troubleshooting

    6 Troubleshooting This chapter summarizes the most common problems you could encounter with the appliance� If you are unable to solve the problem with the information below, contact the Consumer Care Center in your country� Problem Possible solution • The filter replacement alert has been on continuously The appliance does not work but you have not replaced the corresponding filter�...
  • Page 28 Philips dealer or an authorized Philips service center� The filter may produce smell after being used for a while because of the absorption of indoor gases� It’s recommended that you reactivate the filter by putting it in direct sunlight for repeated use�...
  • Page 29 产品保用卡 保修及服务: 网上会员注册与产品注册: 保修及服务: 保修条例: 1 登陆 www.philips.com.cn/ 此产品是一件设计精良, 此产品是一件设计精良, 用高品质元件制造之家用电器, 在 * 在购买日期后二年内, 凡经本公司特约维修站人员确认为 正 welcome 用高品质元件制造之家用电 正常使用及保养下应能发挥其优越性能。 在购买日期后二 常使用情况下, 因制造工艺或元器件造成之损坏, 您都 将获 器,在正常使用及保养下应能 2 点击“创建新账户”, 年内, 若发生任何因制造工艺或元器件造成之损坏, 飞利浦 得免费保修服务。 发挥其优越性能。在购买日期 创建您的飞利浦账号 中国维修服务中心将为持证用户提供免费门市维修服务, * 此免费服务不包括需时常更换的易耗零配件(吸尘机纸 后二年内,若发生任何因制造 3 点击“注册产品”, 视情况更换零件或整个产品。...
  • Page 30 - 此证须联同发票正本使用方 - 飞利浦提供2年全球联保服 为有效。 务,在产品由飞利浦正式销 - 以下情况将不能获得免费 售的所有国家中,都提供保 服务。 修和保修期满的维修服务。 1 使用不当引起的人为损坏, 要求保修时,您需提供发票 例如接入不适当电源、使用 正本,且请求保修的日期还 不适当配件、不适当之安 在保修期限之内。 装、不依说明书使用、错误 使用或疏忽而造成损坏等。 服务须知 因运输及其他意外而造成之 需要此产品的售后服务,拨打 服务热线:4008 800 008 损坏。非经本公司认可之维 修和改装。其他因不可抗力 在维修服务过程中有任何意 (如自然灾害、电压异常 见,欢迎致函飞利浦(中国) 等)造成的损坏。 投资有限公司解决疑难。 2 一般家庭以外使用(如工业、 商业用)而造成的损坏。 飞利浦(中国)投资有限公 3 正常使用引起的产品老化、 司上海市静安区灵石路718 磨损等,但不影响产品的正...
  • Page 31 飞利浦空气净化器 AC1758 产品 KJ300F-A11 型号 220V~ 额定电压 50Hz 额定频率 额定输入功率 生产日期 请见产品本体 产地 中国江苏苏州 飞利浦(中国)投资有限公司 上海市静安区灵石路 718 号 A1 幢 全国顾客服务热线:4008 800 008 本产品根据国标 GB4706.1-2005, GB4706.45-2008 制造 产品性能指标 目标污染物 目标污染物 洁净空气量(CADR) 累积净化量(CCM) 净化能效等级 315 m 315 m 颗粒物 颗粒物 高效级...
  • Page 32 产品中有害物质的名称及含量 有毒有害物质或元素 部件名称 六价铬 多溴联苯 多溴二苯醚 铅 b) 汞(Hg) 镉(Cd) (parts name) (Cr+6) (PBB) (PBDE) 主电路组件 × ○ ○ ○ ○ ○ × ○ ○ ○ ○ ○ 电源电路板组件 传感器板组件 × ○ ○ ○ ○ ○ × ○ ○ ○ ○...
  • Page 36 © 2020 Koninklijke Philips N.V. 保留所有权利 3000 048 50033...
