User Manual

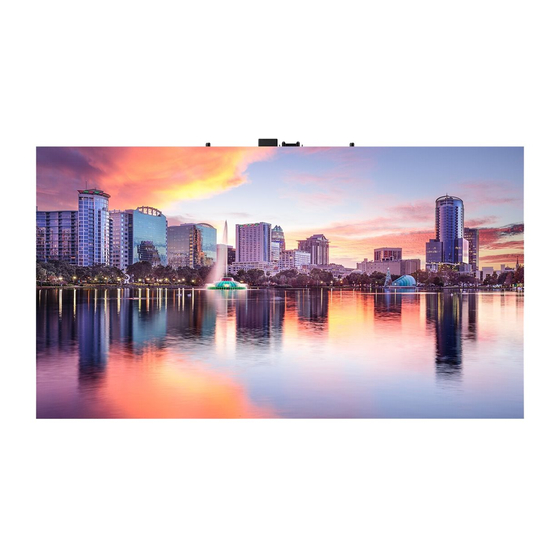

IWA (IW008A IW012A IW016A)
IWA-V (IW008A-V IW012A-V IW016A-V)
IWA-R (IW008A-R IW012A-R IW016A-R)
The color and the appearance may differ depending on the product, and the content in the
manual is subject to change without prior notice to improve the performance.
© Samsung
Samsung owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited. Trademarks other than Samsung are property of their respective owners.
Advertisement
Table of Contents
Related Manuals for Samsung IWA
Summary of Contents for Samsung IWA
- Page 1 © Samsung Samsung owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited. Trademarks other than Samsung are property of their respective owners.
-
Page 2: Table Of Contents
License Arranging the upper docking port at the top of the cabinet Preparations Connecting to cabinets Supported resolutions per installation Ports Connecting the Power Cable IWA (IW008A IW012A IW016A) IWA-V (IW008A-V IW012A-V IW016A-V) IWA-R (IW008A-R IW012A-R IW016A-R) Specifications General... -
Page 3: Before Using The Product
Chapter 01 Before Using the Product Safety Precautions The following safety instructions are to ensure your personal safety and prevent property CAUTION damage. Please read the following to ensure the proper use of the product. RISK OF ELECTRIC SHOCK. DO NOT OPEN. Safety symbols CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 4: Electricity And Safety
Warning The product may become damaged by an electric shock. Only use the power cord provided with your product by Samsung. Do not use the power Do not use a damaged power cord or plug, or a loose power socket. -
Page 5: Installation
Have a technician install the wall-mount hanger. seriously affect its performance. • Installation by an unqualified person can result in an injury. Be sure to consult Samsung Customer Service Center if you want to install the • Only use approved cabinets. product at such a place. -
Page 6: Operation
Be sure to power off the product and disconnect the power cord when water Warning or other foreign substances have entered the product. Then contact Samsung Customer Service Center. There is a high voltage inside the product. Never disassemble, repair or modify the •... -
Page 7: Cleaning
There is a risk that the LED element may fall or become damaged. • Keep at least the recommended viewing distance (pixel pitch x 3.5 m) from the To clean the exterior, refer to the installation manual provided by Samsung. screen. (The installation manual is available for download at www.samsung.com/displaysolutions.) For example) For IW008A / IW008A-V / IW008A-R: 0.84 x 3.5 m = a distance of at... -
Page 8: Preparations
Chapter 02 Preparations Ports " The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. IWA (IW008A IW012A IW016A) Parts Description IWA-V (IW008A-V IW012A-V IW016A-V) SERVICE Dedicated to service technicians. -
Page 9: Iwa-R (Iw008A-R Iw012A-R Iw016A-R)
IWA-R (IW008A-R IW012A-R IW016A-R) Parts Description SERVICE Dedicated to service technicians. Connects to the port on the next cabinet. DATA DATA Enters factory mode (press and hold for 5 seconds) or factory reset SWITCH mode (press and hold for 10 seconds). -
Page 10: Connecting Devices
Chapter 03 Connecting Devices Precautions when handling the cabinets [Caution to prevent external shock and dropping of the [Caution to prevent damage to the LED] product] After removing the protective brackets, do not place After removing the protective brackets, be careful not the product on the floor with the LED facing down. -
Page 11: Installing The Cabinets Mounting The Spacer-Eva
For more information about how to install the frame kit, refer to the user manual that comes with it. • Samsung shall not be liable for any damage to the product and any injury to the users or others that may be incurred while the users install the product by themselves. -
Page 12: Removing The Protective Brackets
Lowering the protective cap before connection of the power cable Remove the safety bracket before proceeding to installation. IWA (IW008A IW012A IW016A) IWA-V (IW008A-V IW012A-V IW016A-V) Be sure to lower the protective cap before installation of the cabinet, in order to connect the power cable. -
Page 13: Arranging The Upper Docking Port At The Top Of The Cabinet
Arranging the upper docking port at the top of the IWA-R (IW008A-R IW012A-R IW016A-R) cabinet main frame For detailed information, visit the install guide. IWA (IW008A IW012A IW016A) module frame IWA-V (IW008A-V IW012A-V IW016A-V) Place the product on the packaging cushion and then remove the module frame from the main frame. -
Page 14: Connecting To Cabinets
Connecting to cabinets Connect the S-Box (SNOW-AAE) and the cabinet to the installed cabinet for video signal transmission. " Connect the S-Box to the external device before connecting the S-Box to the cabinet. " Before connecting power to the cabinets, connect the I/G card to the cabinets first. "... -
Page 15: Supported Resolutions Per Installation
Supported resolutions per installation Resolution 480 x 270 640 x 360 960 x 540 1920 x 1080 3840 x 2160 7680 x 4320 (8K) IW008A / IW008A-V / IW008A-R 2 x 2 4 x 4 8 x 8 IW012A / IW012A-V / IW012A-R 3 x 3 6 x 6 12 x 12... -
Page 16: Connecting The Power Cable
Make sure that the Do not use number of connected devices does not exceed the recommended maximum number. " Samsung is not liable for any problems incurred by connecting devices that exceed the recommended maximum number. AC/DC rectifier... -
Page 17: Specifications
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. • For detailed device specifications, visit the Samsung website. -
Page 18: Appendix
External impact or drop. " When the service is requested, in spite of in warranty, we may charge you for a visit from a • Use of supplies or separately sold product unspecified by Samsung. service technician in the following cases. •... -
Page 19: License
If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution may be charged. You may find a copy of the source at following website. http://opensource.samsung.com http://software-dl.ti.com/processor-sdk-linux/esd/AM335X/latest/exports/software_ manifest.htm...
