Sealey SA92.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
F ollow all workshop safety rules, regulations, and conditions when using the buffing kit.
9
WARNING! Disconnect from air supply before changing accessories or servicing.
‰
Maintain the buffing kit in good condition and replace any damaged or worn parts. Use genuine parts only. Unauthorised parts may be
9
dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
‰
Keep air hose away from heat, oil and sharp edges.
9
Check air hose for wear before each use and ensure that all connections are secure.
9
Wear approved safety eye/face shield, ear defenders, and hand protection.
9
WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we
‰
recommend you wear suitable respiratory protection.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and non essential persons away from the working area.
9
DO NOT use the buffing kit for a task it is not designed to perform.
8
WARNING! DO NOT use buffing kit if damaged or thought to be faulty. (Contact Service Agent).
‰
DO NOT use buffing kit unless you have been instructed in its use by a qualified person.
8
DO NOT carry the buffing kit by the air hose, or yank the hose from the air supply.
8
DO NOT operate buffing kit if you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT carry buffing kit with your hand on the power trigger in order to avoid unintentional starting.
8
DO NOT direct air from the air hose at yourself or others.
8
When not in use disconnect from air supply and store in a safe, dry, childproof location.
9
2. INTRODUCTION

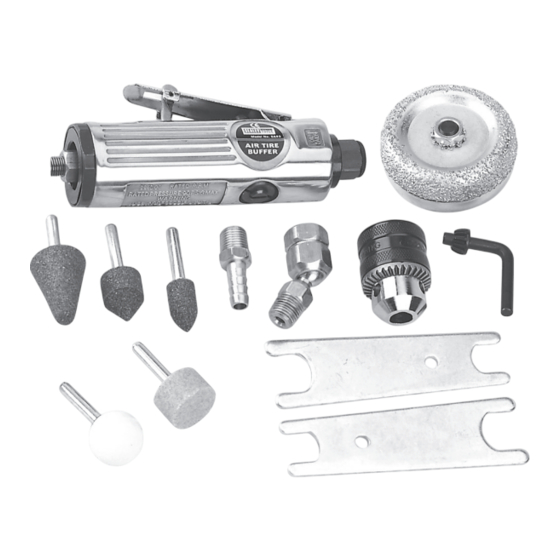

Aluminium cased air motor with selection of Ø6mm shanked grinding points, Ø10mm chuck and tyre buffing cone. Kit also includes spanners,
chuck key and air hose adaptors.
3. SPECIFICATION
Model No: . ................................................................ SA92.V3
Air Consumption:............................................................ 5cfm
Chuck Size: . .............................................................. Ø10mm
Consumable Parts: . .......................... SA651/C - Buffing Cone
Free Speed: ........................................................... 22000rpm
Inlet Size: ..................................................................1/4"BSP
Noise Power/Pressure: ...................................... 101/90dB(A)
Operating Pressure: ...................................................... 90psi
Vibration/Uncertainty: . ........................................ 1.5/0.64m/s²
© Jack Sealey Limited
AIR TYRE BUFFING KIT
MODEL NO:
Wear a face Wear protective
Wear ear
mask
protection
Original Language Version
SA92.V3
gloves
SA92.V3 Issue 2 (H,F) 23/03/23
