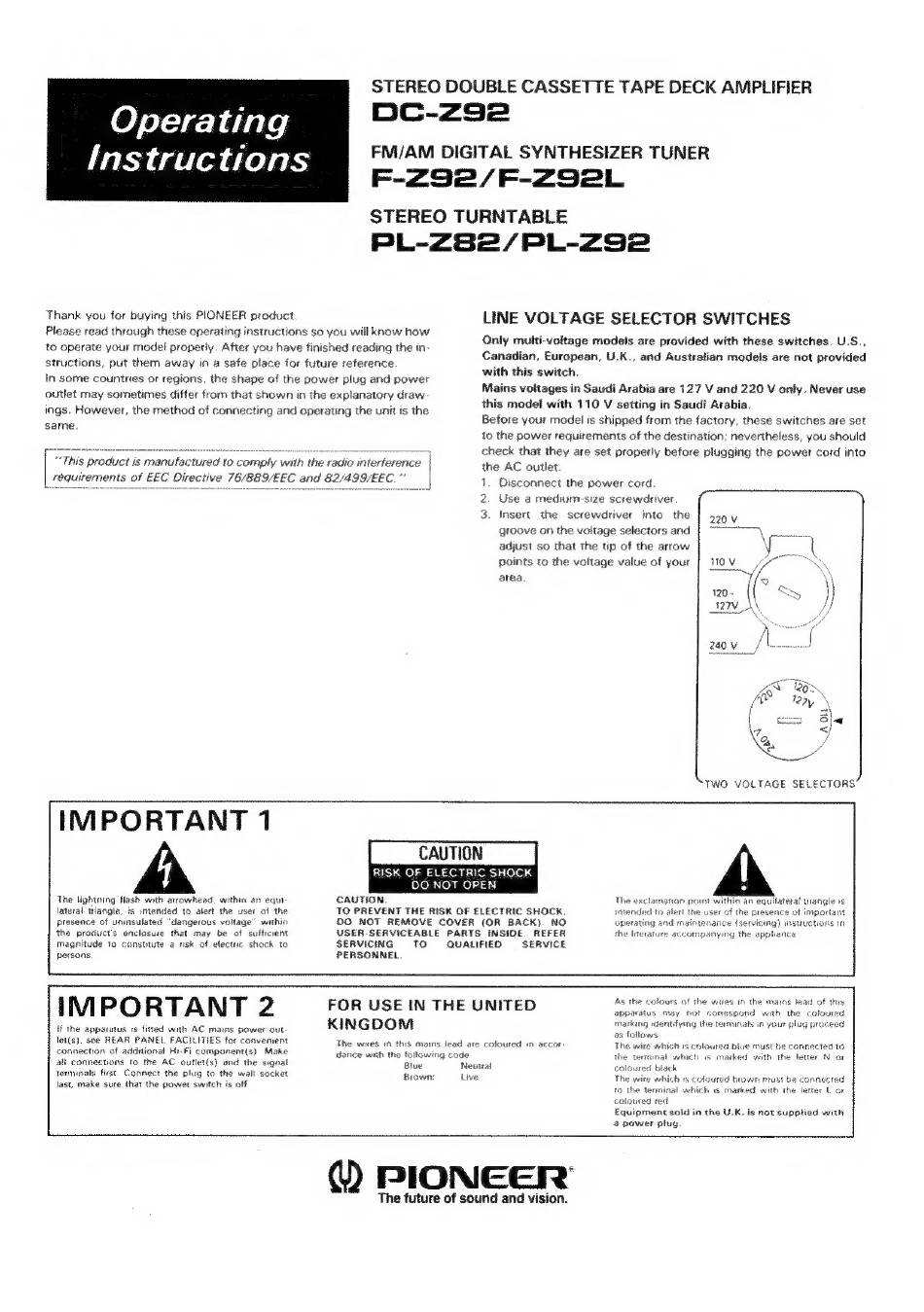

Operating
Instructions
STEREO DOUBLE CASSETTE TAPE DECK AMPLIFIER
DC-zZ92
FM/AM DIGITAL SYNTHESIZER TUNER
F-Z92/F-Z292L
STEREO TURNTABLE
PL-2S2/PL-292
Thank you for buying this PIONEER product.
Please read through these operating instructions so you will know how
to operate your model properly. After you have finished reading the in
structions, put them away in a safe place for future reference
In some countries or regions, the shape of the power plug and power
outlet may sometimes differ from that shown in the explanatory draw
ings. However, the method of connecting and operating the unit is the
same,
"This product is manufactured to comply with the radio interference
requirements of EEC Directive 76/889/EEC and
82/499/EEC.
LINE VOLTAGE SELECTOR SWITCHES
Only multi-voltage models are provided with these switches. U.S.,
Canadian, European, U.K., and Australian models are not provided
with this switch.
Mains voltages in Saudi Arabia are
127 V and 220 V only. Never use
this model with 110 V setting in Saudi Arabia.
Before your model is shipped from the factory, these switches are set
to the power requirements of the destination; nevertheless, you should
check that they are set properly before plugging the power cord into
the AC outlet.
1. Disconnect the power cord
2. Use a medium-size screwdriver
3.
Insert
the
screwdriver
into
the
groove on the voltage selectors and
adjust so that the tip of the arrow
points to the voltage value of your
area
TWO
VOLTAGE
SELECTORS
IMPORTANT
1
The lighting flash with arrowhead, withia an equi
CAUTION
lateral triangle, is intended to alert the user of the
presence of uninsulated
"dangerous voltage" within
the product's enclasure that may be of sufficient
magnitude to constute a usk of electric shock to
SERVICING
TO
persons
PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO PREVENT THE RISK OF ELECTRIC SHOCK
DO
NOT
REMOVE
COVER
(OR
BACK).
NO
USER-SERVICEABLE
PARTS
INSIDE.
REFER
QUALIFIED
= SERVICE
The exclamation point within an equilateral trangle 1s
intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appkance
IMPORTANT 2
ff the apparatus 1s fitted with AC mains power out
let(s), see REAR PANEL FACILITIES for converient
connection af addnional Hi-Fi component(s} Make
all connections to the AC gutlet(s) and the signat
terminals first. Connect the plug to the wall socket
last, make sute that the power switch is off
FOR USE IN THE UNITED
KINGDOM
The wites m this mains fead are coloured «n accor
dance with the following code
Blue
Neutral
Brown:
Live
AS
the colours
of the
wires
in the
marms
bead
of this
apparatus may not correspond wah the coloured
marking identifying the terminals in your plug proceed
as follows
The wire which
is coloured
blue must
be connected
to
the terminal which is marked with the letter Nor
cotcured
black
The wire whic!
10 the terminal wh
coloured
red
Equipment sold in the U.K. is not supptied with
@ power plug.
s coloured brown mist be connected
ch as marked with the letter L or
PIONEER
The future of sound and vision.
