Creda OTRC300 Technical Specification

Outline

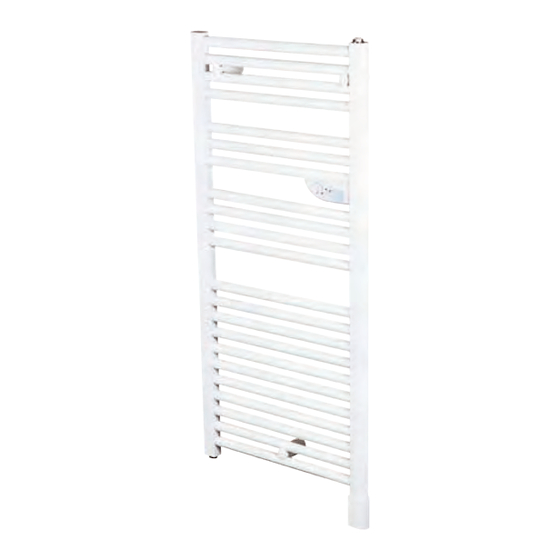

Thermostatic integral control towel rails
"
Outline heated towel rails
are of the popular ladder
style and, with outputs of
up to 750W, they provide
background heating as well
as warm dry towels.
Key features
• 300W, 500W and 750W output rails
• High quality white or chrome finish
• Integral controls (Controls must be positioned
outside of zones 0, 1 & 2)
• Digital electronic thermostat with range restriction
and lock facility
• Pilot wire control compatible
• IP24 rated (splashproof)
Integral control features
• Push button - On/off with neon indicator
• Rotary - Thermostat with frost protection setting
• Rotary - Variable boost - time set 15 minutes,
30 minutes,1 hour or 2 hours
Product Selector
Model
OTRC300
OTRC500
OTRW500
OTRW750
PW E4ZC
"
Control options
Outline towel rails can be pilot wire linked
to a flash controller as part of a complete
heating system.
Reference Product Description
75 772710 Outline 30 (chrome)
75 772711 Outline 50 (chrome)
75 772701 Outline 50 (white)
75 772702 Outline 75 (white)
75 770916 4 zone pilot wire central controller
+44 (0) 1733 456789
Towel rails &
bathroom warmers
Technical Specification
• Element - cartridge type
• Control - digital electronic thermostat
with boost facility
• Protection - thermal cut-out
• Supply - 230/240V AC single phase
Dimensions
Rating Height A
300W 855mm
500W 1,300mm
500W 815mm
750W 1,225mm
www.creda-heating.co.uk
Width B Depth C
550mm 85mm
550mm 85mm
550mm 85mm
550mm 85mm
27
