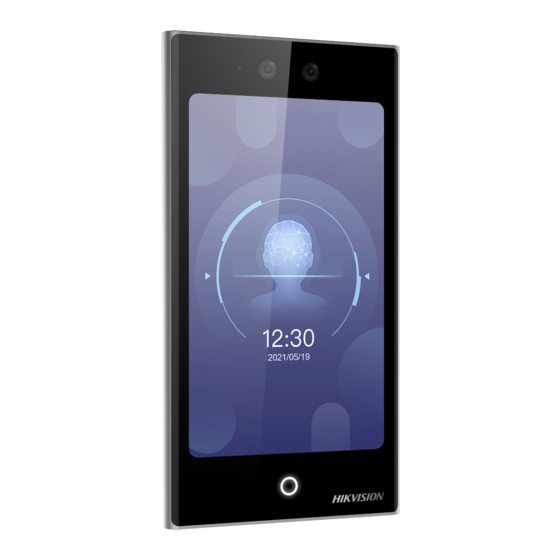

DS-K1T673 Series Face Recognition Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T673 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K1T673 Series

Summary of Contents for HIKVISION DS-K1T673 Series

  • Page 1 DS-K1T673 Series Face Recognition Terminal User Manual...
  • Page 2 ● Products described in this Document, which may include licenses obtained from third parties. Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part ● of this Document may be excerpted, copied, translated, or modified in whole or in part by any means without written permission.
  • Page 3 LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY ●...
  • Page 4 DS-K1T673 Series Face Recognition Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T673 Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T673 Series Face Recognition Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T673 Series Face Recognition Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T673 Series Face Recognition Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K1T673 Series Face Recognition Terminal User Manual Available Models Product Name Model Face Recognition Terminal DS-K1T673DX DS-K1T673DWX DS-K1T673TDX DS-K1T673TDWX DS-K1T673TDGX DS-K1T673M DS-K1T673MW DS-K1T673MG DS-K1T673TMW DS-K1T673TMG Use only power supplies listed in the user instructions: Model Manufacturer Standard C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd.

  • Page 10: Table Of Contents

    DS-K1T673 Series Face Recognition Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 1.2.1 Features (Normal Series) ....................1 1.2.2 Features (T Series) ......................2 Chapter 2 Appearance ........................ 4 Chapter 3 Installation ......................... 6 3.1 Installation Environment ......................
  • Page 11 DS-K1T673 Series Face Recognition Terminal User Manual 6.1 Select Language ........................34 6.2 Set Password Change Type ....................35 6.3 Set Network Parameters ...................... 37 6.4 Access to Platform ....................... 39 6.5 Privacy Settings ........................41 6.6 Set Administrator ......................... 41 Chapter 7 Basic Operation ......................
  • Page 12 DS-K1T673 Series Face Recognition Terminal User Manual 7.4 Data Management ....................... 66 7.4.1 Delete Data ......................... 67 7.4.2 Import Data ......................... 67 7.4.3 Export Data ......................... 67 7.5 Identity Authentication ......................68 7.5.1 Authenticate via Single Credential ................68 7.5.2 Authenticate via Multiple Credential ................69 7.6 Basic Settings ........................
  • Page 13 DS-K1T673 Series Face Recognition Terminal User Manual 8.5 No. and System Network ..................... 90 Chapter 9 Operation via Web Browser ..................91 9.1 Login ............................ 91 9.2 Live View ..........................91 9.3 Person Management ......................92 9.4 Search Event ........................94 9.5 Configuration ........................
  • Page 14 DS-K1T673 Series Face Recognition Terminal User Manual 9.5.22 Security Mode Settings ................... 124 9.5.23 Certificate Management ..................124 Chapter 10 Other Platforms to Configure ................126 Appendix A. Tips for Scanning Fingerprint ................127 Appendix B. Tips When Collecting/Comparing Face Picture ............ 129 Appendix C.

  • Page 15: Chapter 1 Overview

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 1 Overview 1.1 Overview Face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.

  • Page 16: Features (T Series)

    DS-K1T673 Series Face Recognition Terminal User Manual Support tamper alarm, door opening alarm by external force, duress card and duress password ● alarm Support multiple display modes, including normal mode, advertisement mode, and simple mode ● Audio prompt ● Support authentication result display ●...
  • Page 17 DS-K1T673 Series Face Recognition Terminal User Manual Support multiple people recognition (up to 5 people) ● Support mask wearing detection ● Supports tamper alarm, door opening alarm by external force, duress card and duress password ● alarm Support multiple display modes, including normal mode, advertisement mode, and simple ●...

  • Page 18: Chapter 2 Appearance

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the face recognition terminal: Figure 2-1 Face Recognition Terminal Diagram Table 2-1 Description of Face Recognition Terminal Name IR Light Type-C USB Interface Note For connecting to the peripheral module.
  • Page 19 DS-K1T673 Series Face Recognition Terminal User Manual Name Loudspeaker Wiring Terminal Temperature Module Interface Debugging Port (For debugging only) Network Interface Audio Output Note If the audio plug diameter is greater than 8 mm, an external adapter is required. Tamper...

  • Page 20: Chapter 3 Installation

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Avoid backlight, direct sunlight, and indirect sunlight. ● For better recognition, there should be light source in or near the installation environment. ● If you have to install the device outdoors, you should install a protective shield (optional) for the ●...
  • Page 21 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-1 Install Gang Box 2. Secure the mounting plate on the gang box with 2 supplied screws (SC-K1A4X24_5).
  • Page 22 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-2 Install Mounting Plate 3. Route the cable through the cable hole, wire the cables and insert the cables in the gang box.
  • Page 23 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-3 Secure Device Note Apply Silicone sealant among the cable wiring area to keep the raindrop from entering. 4. Align the device with the mounting plate, and secure the device on the mounting plate with 1...

  • Page 24: Surface Mounting

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-4 Secure Device 5. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.3 Surface Mounting Steps Note The additional force shall be equal to three times the weight of the equipment. The equipment ad its associated mounting means shall remain secure during the installation.
  • Page 25 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-5 Mounting Template 2. Drill holes on the wall or other surface according to the Hole 1 on the mounting template. 3. Remove the cable hole on the mounting plate with tools.
  • Page 26 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-6 Install Mounting Plate 5. Route the cable through the cable hole of the mounting plate, and connect to corresponding peripherals cables. Note If the device is installed outdoor, you should apply silicone sealant to the wiring exit to avoid...
  • Page 27 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-7 Apply Silicone Sealant 6. Align the device with the mounting plate and hang the device on the mounting plate. Figure 3-8 Hang Device 7. Use 1 supplied screw (KM3×6) to secure the device and the mounting plate.

  • Page 28: Mount With Bracket

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-9 Secure Device 8. Optional: Connect the peripheral module according to your actual needs. 9. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.
  • Page 29 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-10 Drill Holes on Turnstile 2. If the installation angle needs to be 180° perpendicular to the body of the turnstile, the following operations are required. 1) Take off the 3 screws shown in the following figure.

  • Page 30: Mount Bracket

    DS-K1T673 Series Face Recognition Terminal User Manual 3.4.2 Mount Bracket Steps 1. Pass the bracket bottom through the turnstile, and fix it into the turnstile with self-contained nut. Adjust the bracket to the suitable angle, and fix the nut tightly by the wrench.
  • Page 31 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-14 Fix Mounting Plate 3. Pass face recognition terminal cables through the cable hole, and insert them into the inner turnstile. Fix the face recognition terminal into the mounting plate with KM3×6-H2-SUS screws.
  • Page 32 DS-K1T673 Series Face Recognition Terminal User Manual Figure 3-15 Fix Face Recognition Terminal 4. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen.

  • Page 33: Chapter 4 Wiring

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 4 Wiring The device supports connecting to the RS-485 terminal, the door lock, the exit button, the alarm output/input devices, the Wiegand card reader, the access controller, and the power supply. You can wire the peripherals according to the descriptions below.
  • Page 34 DS-K1T673 Series Face Recognition Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows:...

  • Page 35: Wire Normal Device

    DS-K1T673 Series Face Recognition Terminal User Manual Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground Group B Alarm Input Yellow/Blue Alarm Input 1 Black Ground Yellow/Orange IN2...

  • Page 36: Wire Secure Door Control Unit

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 4-2 Device Wiring Note You should set the face recognition terminal's Wiegand direction as Input to connect to a ● Wiegand card reader. If connects to an access controller, you should set the Wiegand direction as Output to transmit authentication information to the access controller.

  • Page 37: Wire Fire Module

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 4-3 Secure Door Control Unit Wiring Note The secure door control unit should connect to an external power supply separately. The suggested external power supply is 12V, 0.5A. 4.4 Wire Fire Module 4.4.1 Wiring Diagram of Door Open When Powering Off...
  • Page 38 DS-K1T673 Series Face Recognition Terminal User Manual Figure 4-4 Wire Device Figure 4-5 Wire Secure Door Control Unit Type 2 Note The fire system (NO and COM, normally open when powering off) is connected with the lock and the power supply in series. When an fire alarm is triggered, the door remains open. In normal...

  • Page 39: Wiring Diagram Of Door Locked When Powering Off

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 4-6 Wiring Device Figure 4-7 Wiring Secure Door Control Unit 4.4.2 Wiring Diagram of Door Locked When Powering Off Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC) Security Type: Door Locked When Powering Off...
  • Page 40 DS-K1T673 Series Face Recognition Terminal User Manual Scenario: Installed in Entrance/Exit with Fire Linkage Note The Uninterpretable Power Supply (UPS) is required. ● The fire system (NC and COM, normally closed when powering off) is connected with the lock ●...
  • Page 41 DS-K1T673 Series Face Recognition Terminal User Manual Figure 4-9 Wiring Diagram...

  • Page 42: Chapter 5 Activation

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 43 DS-K1T673 Series Face Recognition Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least...

  • Page 44: Activate Via Web Browser

    DS-K1T673 Series Face Recognition Terminal User Manual characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 45: Activate Via Sadp

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 46: Activate Device Via Ivms-4200 Client Software

    DS-K1T673 Series Face Recognition Terminal User Manual Status of the device becomes Active after successful activation. 5. Modify IP address of the device. 1) Select the device. 2) Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking Enable DHCP.
  • Page 47 DS-K1T673 Series Face Recognition Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 48: Chapter 6 Quick Operation

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 6 Quick Operation 6.1 Select Language You can select a language for the device system. After the device activation, you can select a language for the device system.

  • Page 49: Set Password Change Type

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 6-1 Select System Language By default, the system language is English. 6.2 Set Password Change Type You can set the password change type as reserved email address or security questions. Once you...
  • Page 50 DS-K1T673 Series Face Recognition Terminal User Manual Change Password via Email Address If you need to change password via reserved email, you can enter an email address, and tap Next. Figure 6-2 Password Change Page Change via Security Questions If you need to change password via security questions, you can tap Change to Security Questions...

  • Page 51: Set Network Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual Note You can only select one type to change password. If you need, you can enter the web page to set both of the changing types. 6.3 Set Network Parameters You can set the network for the device.
  • Page 52 DS-K1T673 Series Face Recognition Terminal User Manual Figure 6-3 Select Network Note Disconnect the wired network before connecting a Wi-Fi. 2. Tap Next. Wired Network Note Make sure the device has connected to a network.

  • Page 53: Access To Platform

    DS-K1T673 Series Face Recognition Terminal User Manual If enable DHCP, the system will assign the IP address and other parameters automatically. If disable DHCP, you should set the IP address, the subnet mask, and the gateway. Wi-Fi Select a Wi-Fi and enter the Wi-Fi's password to get connected.
  • Page 54 DS-K1T673 Series Face Recognition Terminal User Manual Figure 6-4 Access to Hik-Connect 2. Tap Next. 3. Optional: Tap Skip to skip the step. 4. Optional: Tap Previous to go to the previous page.

  • Page 55: Privacy Settings

    DS-K1T673 Series Face Recognition Terminal User Manual Note If you tap Previous to return to the Wi-Fi configuration page, you need to tap the connected Wi- Fi or connect another Wi-Fi to enter the platform page again. 6.5 Privacy Settings After activation, selecting application mode, and selecting network, you should set the privacy parameters, including the picture uploading and storage.
  • Page 56 DS-K1T673 Series Face Recognition Terminal User Manual Figure 6-5 Add Administrator Page 3. Select a credential to add. Note Up to one credential should be added. : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm.
  • Page 57 DS-K1T673 Series Face Recognition Terminal User Manual Hik-Connect is enabled/disabled. The device wired network is connected/not connected/connecting failed. The device' Wi-Fi is enabled and connected/not connected/enabled but not connected. Shortcut Keys Description Note You can configure those shortcut keys displayed on the screen. For details, see Basic Settings .

  • Page 58: Chapter 7 Basic Operation

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.
  • Page 59 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-1 Admin Login 2. Authenticate the administrator's face, fingerprint or card to enter the home page.
  • Page 60 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3. Optional: Tap and you can enter the device activation password for login.

  • Page 61: Login By Activation Password

    DS-K1T673 Series Face Recognition Terminal User Manual 7.1.2 Login by Activation Password You should login the system before other device operations. If you do not configure an administrator, you should follow the instructions below to login. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture to enter password entering page.

  • Page 62: Forgot Password

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-3 Home Page 7.1.3 Forgot Password If you forget the password during authentication, you can change the password.

  • Page 63: Change Device Password

    DS-K1T673 Series Face Recognition Terminal User Manual Steps 1. Hold the initial page for 3 s and slide to the left/right by following the gesture and log in the page. 2. Optional: If you have set an administrator, tap in the pop-up admin authentication page.

  • Page 64: Communication Settings

    DS-K1T673 Series Face Recognition Terminal User Manual Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 65 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-4 Wired Network Settings 3. Set IPv4/IPv6 IP Address, Subnet Mask, and Gateway. - Enable DHCP, and the system will assign IP address, subnet mask, and gateway automatically. - Disable DHCP, and you should set the IP address, subnet mask, and gateway manually.

  • Page 66: Set Wi-Fi Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual Note The device's IP address and the computer IP address should be in the same IP segment. 4. Set the DNS parameters. You can enable Auto Obtain DNS, set the preferred DNS server and the alternate DNS server.
  • Page 67 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-5 Wi-Fi Settings 3. Enable the Wi-Fi function. 4. Configure the Wi-Fi parameters. - Select a Wi-Fi from the list, and enter the Wi-Fi's password. Tap OK. - If the target Wi-Fi is not in the list,tap Add Wi-Fi. Enter the Wi-Fi's name and password. And...

  • Page 68: Set Rs-485 Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual Note Only digits, letters, and special characters are allowed in the password. 5. Set the Wi-Fi's parameters. - By default, DHCP is enable. The system will allocate the IP address, the subnet mask, and the gateway automatically.

  • Page 69: Set Wiegand Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual 7.2.4 Set Wiegand Parameters You can set the Wiegand transmission direction. Steps 1. Tap System → Comm. (Communication Settings) on the Home page to enter the Communication Settings page. 2. On the Communication Settings page, tap Wiegand to enter the Wiegand tab.
  • Page 70 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-7 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters. ISUP Version Set the ISUP version according to your actual needs. Central Group Enable central group and the data will be uploaded to the center group.

  • Page 71: Platform Access

    DS-K1T673 Series Face Recognition Terminal User Manual IP Address Set the ISUP server's IP address. Port No. Set the ISUP server's port No. Note Port No. Range: 0 to 65535. Device ID Set device serial no. Password If you choose V5.0, you should create an account and ISUP key. If you choose other version, you should create an ISUP account only.

  • Page 72: Add Administrator

    DS-K1T673 Series Face Recognition Terminal User Manual 7.3.1 Add Administrator The administrator can log in the device backend and configure the device parameters. Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and enter the device backend.

  • Page 73: Add Face Picture

    DS-K1T673 Series Face Recognition Terminal User Manual 3. Edit the employee ID. Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated.
  • Page 74 DS-K1T673 Series Face Recognition Terminal User Manual Note The employee ID should be less than 32 characters. And it can be a combination of lower ● letters, upper letters, and numbers. The employee ID should not be duplicated. ● 4. Tap the Name field and input the user name on the soft keyboard.
  • Page 75 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-8 Add Face Picture 6. Look at the camera. Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate.

  • Page 76: Add Card

    DS-K1T673 Series Face Recognition Terminal User Manual 7. Tap Save to save the face picture. 8. Optional: Tap Try Again and adjust your face position to add the face picture again. 9. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission.

  • Page 77: Add Fingerprint

    DS-K1T673 Series Face Recognition Terminal User Manual 8. Configure the card type. 9. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission.

  • Page 78: Add Keyfob

    DS-K1T673 Series Face Recognition Terminal User Manual For details about the instructions of scanning fingerprints, see Tips for Scanning Fingerprint . 7. Set the user role. Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission.

  • Page 79: View Pin Code

    DS-K1T673 Series Face Recognition Terminal User Manual Administrator The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page.

  • Page 80: Set Authentication Mode

    DS-K1T673 Series Face Recognition Terminal User Manual 7.3.7 Set Authentication Mode After adding the user's face picture, password, or other credentials, you should set the authentication mode and the user can authenticate his/her identity via the configured authentication mode. Steps 1.

  • Page 81: Delete Data

    DS-K1T673 Series Face Recognition Terminal User Manual 7.4.1 Delete Data Delete user data. On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be deleted. 7.4.2 Import Data Steps 1.

  • Page 82: Identity Authentication

    DS-K1T673 Series Face Recognition Terminal User Manual 3. Tap Face Data, Event Data, User Data, or Access Control Parameters. Note The exported access control parameters are configuration files of the device. 4. Optional: Create a password for exporting. When you import those data to another device, you should enter the password.

  • Page 83: Authenticate Via Multiple Credential

    DS-K1T673 Series Face Recognition Terminal User Manual Enter the password to authenticate via password. Keyfob Press door-open button to authenticate. If authentication completed, a prompt "Authenticated" will pop up. 7.5.2 Authenticate via Multiple Credential Before You Start Set the user authentication type before authentication. For details, see Set Authentication Mode .
  • Page 84 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-9 Basic Settings Page Sound Settings You can enable/disable the voice prompt function and adjust the voice volume. Note You can set the voice volume between 0 and 10. Time Settings...
  • Page 85 DS-K1T673 Series Face Recognition Terminal User Manual Set the time zone, the device time and the DST. Sleeping (s) Set the device sleeping waiting time (minute). When you are on the initial page and if you set the sleeping time to 30 min, the device will sleep after 30 min without any operation.

  • Page 86: Set Biometric Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual Upload the pictures captured when authenticating to the platform automatically. Authentication Indicator White Indicator The white indicator is disabled by default. If white indicator is enabled , the indicators of other colors will eventually cut to the white indicator; If white indicator is disabled, the indicators of other colors will eventually go out.
  • Page 87 DS-K1T673 Series Face Recognition Terminal User Manual Parameter Description Face Recognition Set the valid distance between the user and the camera when Distance authenticating. Face Recognition The time interval between two continuous face recognitions when Interval authenticating. Note You can input the number from 1 to 10.

  • Page 88: Access Control Settings

    DS-K1T673 Series Face Recognition Terminal User Manual Parameter Description Reminder of Wearing If the person do not wear a face mask when authenticating, the device prompts a notification and the door will open. Must Wear If the person do not wear a face mask when authenticating, the device prompts a notification and the door keeps closed.
  • Page 89 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-11 Access Control Settings The available parameters descriptions are as follows: Table 7-2 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the face recognition terminal's authentication mode. You Authentication Mode)

  • Page 90: Platform Attendance

    DS-K1T673 Series Face Recognition Terminal User Manual Parameter Description Note Only the device with the fingerprint module supports the ● fingerprint related function. Biometric recognition products are not completely applicable ● to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.

  • Page 91: Disable Attendance Mode Via Device

    DS-K1T673 Series Face Recognition Terminal User Manual Note The function should be used cooperatively with time and attendance function on the client software. 7.9.1 Disable Attendance Mode via Device Disable the attendance mode and the system will not display the attendance status on the initial page.

  • Page 92: Set Auto Attendance Via Device

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-13 Manual Attendance Mode 3. Enable the Attendance Status Required. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required.
  • Page 93 DS-K1T673 Series Face Recognition Terminal User Manual Steps 1. Tap Platform Attendance to enter the T&A Status page. 2. Set the Attendance Mode as Auto. Figure 7-14 Auto Attendance Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status.

  • Page 94: Set Manual And Auto Attendance Via Device

    DS-K1T673 Series Face Recognition Terminal User Manual Example If set the Break Out as Monday 11:00, and Break In as Monday 12:00, the valid user's authentication from Monday 11:00 to 12:00 will be marked as break. 7.9.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule.

  • Page 95: Preference Settings

    DS-K1T673 Series Face Recognition Terminal User Manual 6. Set the status' schedule. 1) Tap Attendance Schedule. 2) Select Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, or Sunday. 3) Set the selected attendance status's start time of the day. 4) Tap OK.
  • Page 96 DS-K1T673 Series Face Recognition Terminal User Manual Figure 7-16 Preference Settings Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code function, the call function, call type, and the password entering function. Note You can select call type from Call Room, Call Center, Call Specified Room No. and Call APP.

  • Page 97: System Maintenance

    DS-K1T673 Series Face Recognition Terminal User Manual Call Room When you tap the call button on the authentication page, you should dial a room No. to call. Call Center When you tap the call button on the authentication page, you can call the center directly.
  • Page 98 DS-K1T673 Series Face Recognition Terminal User Manual You can view the device model, serial No., versions, address, production data, QR code, and open source code license. Note The page may vary according to different device models. Refers to the actual page for details.

  • Page 99: Video Intercom

    DS-K1T673 Series Face Recognition Terminal User Manual After enabling this function, the device will lock automatically when anti-spoofing detection failed. Lock Duration The lock duration after enabling Lock Face for Anti-Spoofing Protection when anti- spoofing detection failed. Version Information You can view the device information.

  • Page 100: Call Center From Device

    DS-K1T673 Series Face Recognition Terminal User Manual 7.12.2 Call Center from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts. 2. Run the client software and the control panel of the software pops up.

  • Page 101: Call Room From Device

    DS-K1T673 Series Face Recognition Terminal User Manual 7. Click Start Two-Way Audio to start two-way audio between the device and the client software. 7.12.4 Call Room from Device Steps 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts.

  • Page 102: Chapter 8 Quick Operation Via Web Browser

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 8 Quick Operation via Web Browser 8.1 Select Language You can select a language for the device system. Click in the top right of the web page to enter the Device Language Settings page. You can select a language for the device system from the drop-down list.

  • Page 103: Administrator Settings

    DS-K1T673 Series Face Recognition Terminal User Manual Picture Uploading and Storage Save Picture When Authenticating Save picture when authenticating automatically. Upload Picture When Authenticating Upload the pictures when authenticating to the platform automatically. Save Registered Picture The registered face picture will be saved to the system if you enable the function.

  • Page 104: And System Network

    DS-K1T673 Series Face Recognition Terminal User Manual 8.5 No. and System Network Steps 1. Click in the top right of the web page to enter the wizard page. After previous settings, you can click Next to enter the No. and System Network settings page.

  • Page 105: Chapter 9 Operation Via Web Browser

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 9 Operation via Web Browser 9.1 Login You can login via the web browser or the remote configuration of the client software. Note Make sure the device is activated. For detailed information about activation, see Activation .

  • Page 106: Person Management

    DS-K1T673 Series Face Recognition Terminal User Manual Full screen view. The door status is open/closed/remaining open/remaining closed. Controlled Status You can select open/closed/remaining open/remaining closed status according to your actual needs. Real-Time Event You can view the event Employee ID, Name, Card No., Event Type, Time, and Operation. You can also click View More to enter the search conditions, including the event type, employee ID, the name, the card No., door, the start time, and the end time, and click Search.
  • Page 107 DS-K1T673 Series Face Recognition Terminal User Manual Set Device No. Click Person Management → Add Person → Add to enter the Add Person page. Click the textbox of Floor No. and Room No. and enter a numeric between 1 and 999 to set the floor No.

  • Page 108: Search Event

    DS-K1T673 Series Face Recognition Terminal User Manual 9.4 Search Event Click Event Search to enter the Search page. Enter the search conditions, including the event type, the employee ID, the name, the card No., the start time, and the end time, and click Search.

  • Page 109: Set Time

    DS-K1T673 Series Face Recognition Terminal User Manual 9.5.3 Set Time Set the device's time, time zone, synchronization mode, server address, NTP port, and interval. Click Configuration → System → System Settings → Time Settings . Figure 9-1 Time Settings Click Save to save the settings after the configuration.

  • Page 110: Change Administrator's Password

    DS-K1T673 Series Face Recognition Terminal User Manual Figure 9-2 DST Page 2. Enable DST. 3. Set the DST start time, end time and bias time. 4. Click Save to save the settings. 9.5.5 Change Administrator's Password Steps 1. Click Configuration → System → User Management .

  • Page 111: Network Settings

    DS-K1T673 Series Face Recognition Terminal User Manual 9.5.7 Network Settings Set TCP/IP, port, Wi-Fi parameters, ISUP, and platform access. Note Some device models do not support Wi-Fi or mobile data settings. Refer to the actual products when configuration. Set Basic Network Parameters Click Configuration →...
  • Page 112 DS-K1T673 Series Face Recognition Terminal User Manual If uncheck the function, you should set the IPv4 address, IPv4 subnet mask, IPv4 default gateway, IPv6 mode, IPv6 address, IPv6 subnet prefix length, IPv6 default gateway, Mac address, and MTU. If you check the function, the system will allocate the IPv4 address, IPv4 subnet mask, the IPv4 default gateway, IPv6 mode, IPv6 address, IPv6 subnet prefix length, and IPv6 default gateway automatically.
  • Page 113 DS-K1T673 Series Face Recognition Terminal User Manual 1) Set the IP address, subnet mask, and default gateway. Or enable DHCP and the system will allocate the IP address, subnet mask, and default gateway automatically. 5. Set the DNS server. Set the preferred DNS server and alternate DNS server. Or enable DHCP and the system will allocate the preferred DNS server and alternate DNS server automatically.
  • Page 114 DS-K1T673 Series Face Recognition Terminal User Manual Note Hik-Connect is an application for mobile devices. With the App, you can view live image of the device, receive alarm notification and so on. 2. Check Enable to enable the function. 3. Optional: Check the checkbox of Custom, and you can set the server address by yourself.

  • Page 115: Set Video And Audio Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual 5. Set the ISUP listening parameters, including ISUP alarm center IP address/domain name, ISUP alarm center URL, and ISUP alarm center port. 6. Click Save. Set OTAP Connect the device to the platform through the OTAP protocol to obtain device information, upload operation status and alarm information, restart and upgrade the device.

  • Page 116: Set Image Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual 9.5.9 Set Image Parameters You can adjust the image parameters, video parameters, supplement parameters, beauty, image fusion and capture interval. Steps 1. Click Configuration → Image . 2. Configure the parameters to adjust the image.

  • Page 117: Osd Settings

    DS-K1T673 Series Face Recognition Terminal User Manual 9.5.10 OSD Settings You can customize the camera name, time/date format, display mode, and OSD size displayed on the live view. Steps 1. Click Configuration → Image → OSD Configuration to enter the settings page.
  • Page 118 DS-K1T673 Series Face Recognition Terminal User Manual Figure 9-5 Set Authentication Parameters Click Save to save the settings after the configuration. Terminal/Terminal Type/Terminal Model Select terminal and get the terminal description. They are read-only. Enable Authentication Device Enable the authentication function.
  • Page 119 DS-K1T673 Series Face Recognition Terminal User Manual Set Door Parameters Click Configuration → Access Control → Door Parameters . Click Save to save the settings after the configuration. Door No. Select the device corresponded door No. Online Status You can check the online status.
  • Page 120 DS-K1T673 Series Face Recognition Terminal User Manual Note The duress code and the super code should be different. Elevator Control Steps 1. Click Configuration → Access Control → Elevator Control Parameters . 2. Enable Elevator Control. 3. Set the elevator parameters.
  • Page 121 DS-K1T673 Series Face Recognition Terminal User Manual RS-485 Address Set the RS-485 Address according to your actual needs. Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.
  • Page 122 DS-K1T673 Series Face Recognition Terminal User Manual The device can connect a Wiegand card reader. Output The can connect an external access controller. And the two devices will transmit the card No. via Wiegand 26 or 34. 4. Click Save to save the settings.

  • Page 123: Video Intercom Settings

    DS-K1T673 Series Face Recognition Terminal User Manual 9.5.13 Video Intercom Settings Set Video Intercom Parameters The device can be used as a door station, outer door station, or access control device. You should set the device No. before usage. Click Configuration → Intercom → Device No. .
  • Page 124 DS-K1T673 Series Face Recognition Terminal User Manual Door Station No. Set the device installed floor No. Note If you change the No., you should reboot the device. ● The main door station No. is 0, and the sub door station No. ranges from 1 to 16.

  • Page 125: Card Settings

    DS-K1T673 Series Face Recognition Terminal User Manual 3. Click Save to enable the settings. Press Button to Call Steps 1. Click Configuration → Intercom → Press Button to Call to enter the settings page. 2. Check Call Indoor Station, Call Specified Indoor Station, Call Management Center or APP at your needs.

  • Page 126: Set Privacy Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual The device can read the data from FeliCa card when enabling the FeliCa card function. Set Card No. Authentication Parameters Set the card reading content when authenticate via card on the device. Go to Configuration → Card Settings → Card No. Authentication Settings .

  • Page 127: Time And Attendance Settings

    DS-K1T673 Series Face Recognition Terminal User Manual Authentication Result Display Duration You can set authentication result display duration. Picture Uploading and Storage Save Picture When Authenticating Save picture when authenticating automatically. Upload Picture When Authenticating Upload the pictures when authenticating to the platform automatically.
  • Page 128 DS-K1T673 Series Face Recognition Terminal User Manual Steps 1. Click Configuration → Platform Attendance to enter the settings page. 2. Disable the Time and Attendance. Result You will not view or configure the attendance status on the initial page. And the system will follow the attendance rule that configured on the platform.
  • Page 129 DS-K1T673 Series Face Recognition Terminal User Manual Note If you do not select a status, the authentication will be failed and it will not be marked as a valid attendance. Set Auto Attendance via Web Set the attendance mode as auto, and you can set the attendance status and its available schedule.

  • Page 130: Set Biometric Parameters

    DS-K1T673 Series Face Recognition Terminal User Manual Result On the initial page and authenticate. The authentication will be marked as the configured attendance status according to the schedule. If you tap the edit icon on the result tab, you can select a status to take attendance manually, the authentication will be marked as the edited attendance status.
  • Page 131 DS-K1T673 Series Face Recognition Terminal User Manual 1:1 Matching Threshold Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. Note You are recommended to retain the default value. The adjustment will affect the face misidentification rate and rejection rate.
  • Page 132 DS-K1T673 Series Face Recognition Terminal User Manual Note After enabling Face with Mask Detection function, recognition effect of people without mask will be influenced. None The function is disabled. The device will not detect whether a person is wearing a face mask or not.

  • Page 133: Preference Settings

    DS-K1T673 Series Face Recognition Terminal User Manual Fingerprint Security Level Select the fingerprint security level. The higher is the security level, the lower is the false acceptance rate (FAR). The higher is the security level, the higher is the false rejection rate (FRR).
  • Page 134 DS-K1T673 Series Face Recognition Terminal User Manual Click Upload, and click + to upload the picture or video from the local PC. Note By now, there is only one theme can be added. Add Program You can set the program name and select program type.
  • Page 135 DS-K1T673 Series Face Recognition Terminal User Manual 5) Optional: Click to delete the configured time duration. 6. Set the time duration when authentication failed. 1) Click Add Time Duration. 2) Set the time duration. Note If authentication is failed in the configured time duration, the device will broadcast the configured content.

  • Page 136: Upgrade And Maintenance

    DS-K1T673 Series Face Recognition Terminal User Manual If you enable Red and Green Indicator, when the authentication is successful, the green indicator will continue to light for 2 seconds; When authentication fails, the red indicator flashes 3 times. When authentication continues, the green indicator continues to flash until the authentication ends.

  • Page 137: Device Debugging

    DS-K1T673 Series Face Recognition Terminal User Manual Note You can import the exported device parameters to another device. Import Click and select the file to import. Click Import to start import configuration file. Click Advanced Settings, and enter the admin password.

  • Page 138: Log Query

    DS-K1T673 Series Face Recognition Terminal User Manual You can click Export to export log. Capture Network Packet You can set the Capture Packet Duration, Capture Packet Size, and click Start to capture. 9.5.21 Log Query You can search and view the device logs.
  • Page 139 DS-K1T673 Series Face Recognition Terminal User Manual 4. Input certificate information. 5. Click OK to save and install the certificate. The created certificate is displayed in the Certificate Details area. The certificate will be saved automatically. 6. Download the certificate and save it to an asking file in the local computer.

  • Page 140: Chapter 10 Other Platforms To Configure

    DS-K1T673 Series Face Recognition Terminal User Manual Chapter 10 Other Platforms to Configure You can also configure the device via iVMS-4200 Client Software or HikCentral Access Control. For details, see the platforms' user manual. iVMS-4200 Client Software Click/tap the link to view the client software's user manual.

  • Page 141: Appendix A. Tips For Scanning Fingerprint

    DS-K1T673 Series Face Recognition Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 142 DS-K1T673 Series Face Recognition Terminal User Manual Environment The scanner should avoid direct sun light, high temperature, humid conditions and rain. When it is dry, the scanner may not recognize your fingerprint successfully. You can blow your finger and scan again.

  • Page 143: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T673 Series Face Recognition Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.3 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 144 DS-K1T673 Series Face Recognition Terminal User Manual Size Make sure your face is in the middle of the collecting window.

  • Page 145: Appendix C. Tips For Installation Environment

    DS-K1T673 Series Face Recognition Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Avoid backlight, direct and indirect sunlight...

  • Page 146: Appendix D. Dimension

    DS-K1T673 Series Face Recognition Terminal User Manual Appendix D. Dimension Figure D-1 Dimension...
  • Page 147 UD24657B-F...

This manual is also suitable for:

Ds-k1t673dxDs-k1t673dwxDs-k1t673tdxDs-k1t673tdwxDs-k1t673tdgxDs-k1t673m ... Show all

Table of Contents

Save PDF
