- Page 1 KATASYMBOL *Scan the QR Code for multi-language guide and support.
- Page 2 Checklist 1 Cable 1 Printer (accessories are optional) 1 Label Tape...
- Page 3 Install the Label Tape Do not remove this white sticker This side down Do not tear up *After install, please pull the front end of the label out from the paper exit...
- Page 4 The Printer Power Button hold: on / o single-click: repeat last printing / adjust tape position double-click: retract label tape (to avoid wasting)
- Page 5 Connect to Printer via App Download “Katasymbol” Katasymbol from App store ( iOS & Android). 1. Hold the power button for 2 seconds to turn on the printer with Bluetooth on. 2. Turn on the Bluetooth on your phone. 3. Download and open the App on your smartphone.* 4.
- Page 6 Use Templates or Customize with App Katasymbol Edit Label Maker Available in various designs Double click to edit Instruction Add Printer Support Hot Templates White 25 * 15 mm Templates Text Frame Icon Sketch Lifestyle Business Shape QR code Excel Picture Delete Preview &...
-
Page 7: Print & Cut
Print & Cut After inserting or replacing a new roll of label, click the printer’s power button to print a blank label to let the print head identify the label position. *You may double-click the power button to retract the blank label paper. - Page 8 1. Printer not connecting? (1) Please ensure that the printer is turned on and the Bluetooth of the smartphone is turned on. (2) Check if the location function is enabled on the smartphone (Android only). In the Android system, location permission must be enabled when the App is being used.
- Page 9 4. The texts on the printouts are not centered, in the wrong position, o set, or skip paper? (1) When inserting or replacing a roll of label paper for the first time, a blank label should be printed by clicking the power button.
- Page 10 8. How do I clean the print head properly? (1) Use ethanol and cotton swabs. (2) Turn off the printer and let it cool for a few seconds. (3) Take the paper roll out and put it aside. (4) Use a clean small cotton swab (the print head space is narrow) to dip a little ethanol to wipe the dirt on the surface of the print head gently (do not scrape the print head with hard objects, otherwise the thermal-sensitive tablet will be...
-
Page 11: Safety Information
- This printer has a cutter, please be careful when using it to avoid injuries. - Please use SUPVAN’s original label paper and do not remove the sticker on the label paper, otherwise, the device cannot identify the type of the label paper and cannot print it. - Page 12 - Do not touch the print head with your hands. It may cause skin burns when the device is finishing working. - Do not put heavy-weight items on the printer. - Keep the printer away from electromagnetic interference sources that generate magnetic fields. - When using the device, do not block the label paper exit.
-
Page 13: Warranty
- For consumables, we do not provide a warranty. If there is a quality problem, the products can be replaced free of charge. Disclaimer - The use of non–SUPVAN factory products. - Dismantling, repairing, or refitting a product without the authorization of the manufacturer. -
Page 14: Product Specifications
Product Specifications Printing Method Thermal printing Printing Speed 20-40 mm/s Printing Resolution 203 dpi Print Width 12 mm Label Width 12-15 mm Type of Label Paper Thermal paper Connection Bluetooth Battery Capacity 1200 mAh App Languages English, Čeština, Deutsch, Español, Français, Italiano, Nederlands, Português, Pусский, 日本語, 한국어, , Tiếng Việt,... - Page 15 Available Labels White Transparent Transparent Continuous Continuous Fixed Size Cosmetics Blue Yellow Continuous Continuous Fixed Size *Find more label tapes on katasymbol.com or search on Amazon...
- Page 16 Support Scan to download App Scan for user guide and support Katasymbol ( iOS & Android) in other languages Instruction Support Find more instructions and Customer Support inside the App. katasymbol.com...
Need help?
Do you have a question about the KATASYMBOL E10 and is the answer not in the manual?
Questions and answers
how do you connect E10 Katasymbol to work qith laptop

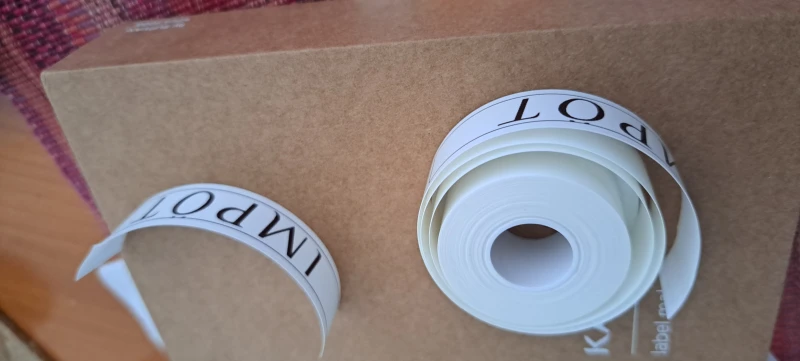

J'ai des problèmes avec mon imprimante, lorsque j'imprime une étiquette elle l'imprime en double aussi à chaque fois que je la ferme elle imprime le dernier étiquette j'ai dû enlever le rouleau pour la fermer sans imprimer à l'infini. Merci
I have changed the tape in my printer and it tells me no tape every time I try to print something. And I can't get the green light to quit blinking.
If your Supvan KATASYMBOL E10 printer shows a "no tape" error and the green light keeps blinking after changing the tape, check if the RFID sticker on the side of the label paper is correctly placed. The printer needs this RFID sticker to identify the label type. Make sure the label paper is installed properly with the RFID sticker in the correct position.
This answer is automatically generated

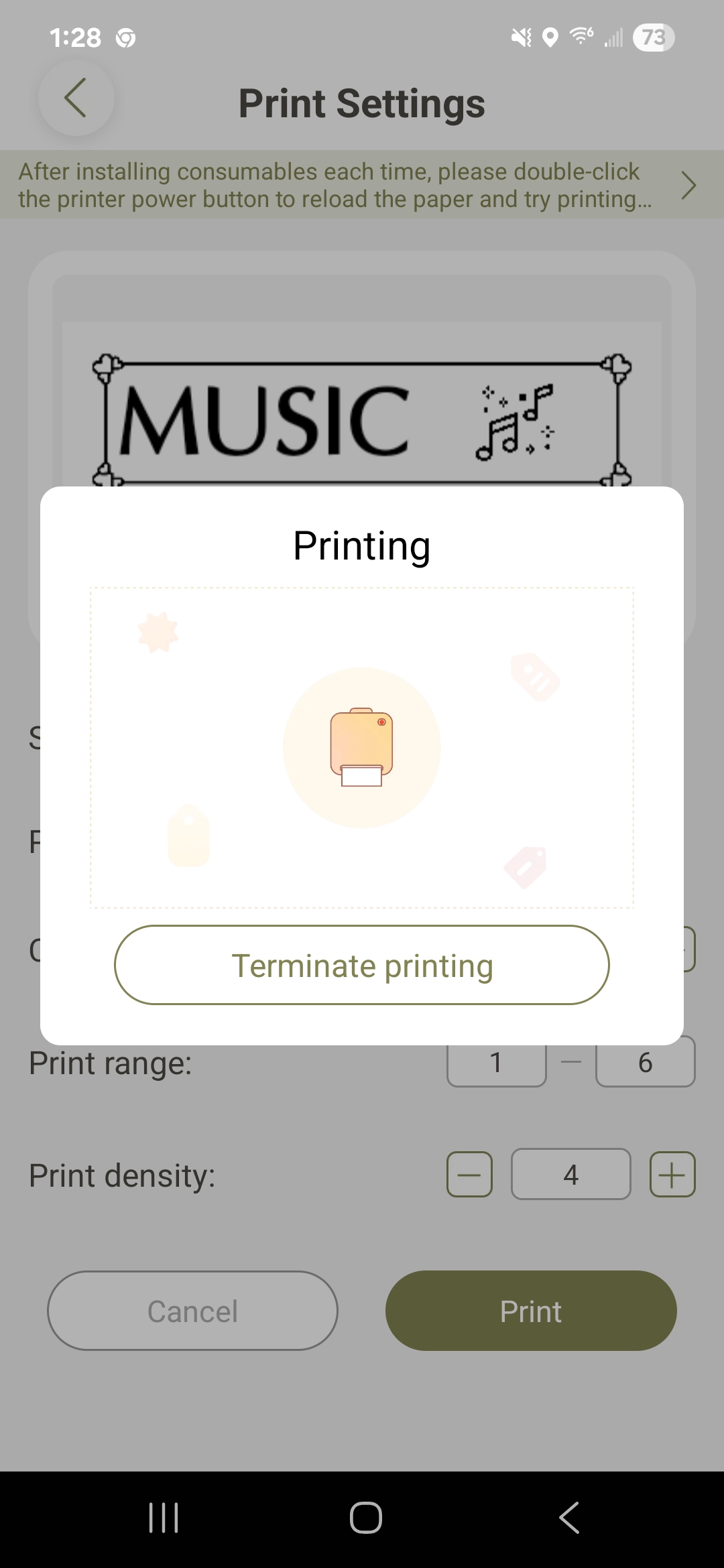

when I try to print is says "printing terminated" Why
