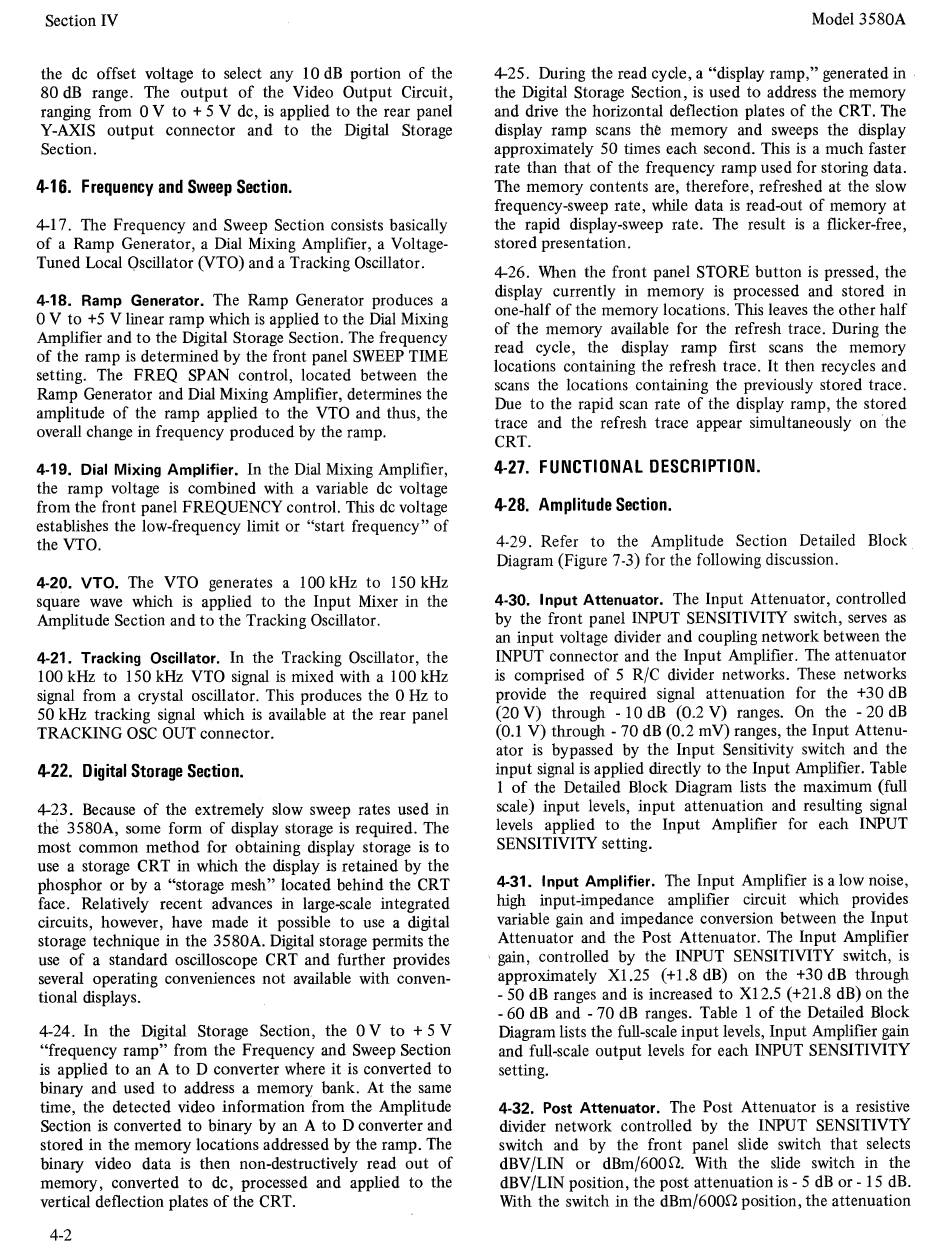

Section IV
the de offset voltage to select any I 0 dB portion of the
80 dB range. The output of the Video Output Circuit,
ranging from 0 V to + 5 V de, is applied to the rear panel
Y-AXIS output connector and to the Digital Storage
Section.
4-16. Frequency and Sweep Section.
4-17. The Frequency and Sweep Section consists basically
of a Ramp Generator, a Dial Mixing Amplifier, a Voltage-
Tuned Local Oscillator (VTO) and a Tracking Oscillator.
4-18. Ramp Generator.
The Ramp Generator produces a
0 V to +5 V linear ramp which is applied to the Dial Mixing
Amplifier and to the Digital Storage Section. The frequency
of the ramp is determined by the front panel SWEEP TIME
setting. The FREQ SPAN control, located between the
Ramp Generator and Dial Mixing Amplifier, determines the
amplitude of the ramp applied to the VTO and thus, the
overall change in frequency produced by the ramp.
4-19. Dial Mixing Amplifier.
In the Dial Mixing Amplifier,
the ramp voltage is combined with a variable de voltage
from the front panel FREQUENCY control. This de voltage
establishes the low-frequency limit or "start frequency" of
the VTO.
4-20. VTO.
The VTO generates a
I
00 kHz to 150 kHz
square wave which is applied to the Input Mixer in the
Amplitude Section and to the Tracking Oscillator.
4-21. Tracking Oscillator.
In the Tracking Oscillator, the
100 kHz to 150 kHz VTO signal is mixed with a
I
00 kHz
signal from a crystal oscillator. This produces the 0 Hz to
50 kHz tracking signal which is available at the rear panel
TRACKING OSC OUT connector.
4-22. Digital Storage Section.
4-23. Because of the extremely slow sweep rates used in
the 3580A, some form of display storage is required. The
most common method for obtaining display storage is to
use a storage CRT in which the display is retained by the
phosphor or by a "storage mesh" located behind the CRT
face. Relatively recent advances in large-scale integrated
circuits, however, have made it possible to use a digital
storage technique
in
the 3580A. Digital storage permits the
use of a standard oscilloscope CRT and further provides
several operating conveniences not available with conven-
tional displays.
4-24. In the Digital Storage Section, the 0 V to + 5 V
"frequency ramp" from the Frequency and Sweep Section
is applied to an A to D converter where it is converted to
binary and used to address a memory bank. At the same
time, the detected video information from the Amplitude
Section is converted to binary by an A to D converter and
stored in the memory locations addressed by the ramp. The
binary video data is then non-destructively read out of
memory, converted to de, processed and applied to the
vertical deflection plates of the CRT.
4-2
Model 3580A
4-25. During the read cycle, a "display ramp," generated in
the Digital Storage Section, is used to address the memory
and drive the horizontal deflection plates of the CRT. The
display ramp scans the memory and sweeps the display
approximately 50 times each second. This
is
a much faster
rate than that of the frequency ramp used for storing data.
The memory contents are, therefore, refreshed at the slow
frequency-sweep rate, while data is read-out of memory at
the rapid display-sweep rate. The result is a flicker-free,
stored presentation.
4-26. When the front panel STORE button is pressed, the
display currently in memory is processed and stored in
one-half of the memory locations. This leaves the other half
of the memory available for the refresh trace. During the
read cycle, the display ramp first scans the memory
locations containing the refresh trace. It then recycles and
scans the locations containing the previously stored trace.
Due to the rapid scan rate of the display ramp, the stored
trace and the refresh trace appear simultaneously on ·the
CRT.
4-27. FUNCTIONAL DESCRIPTION.
4-28. Amplitude Section.
4-29. Refer to the Amplitude Section Detailed Block
Diagram (Figure 7-3) for the following discussion.
4-30. Input Attenuator.
The Input Attenuator, controlled
by the front panel INPUT SENSITIVITY switch, serves as
an input voltage divider and coupling network between the
INPUT connector and the Input Amplifier. The attenuator
is comprised of 5 R/C divider networks. These networks
provide the required signal attenuation for the +30 dB
(20 V) through - 10 dB (0.2 V) ranges. On the - 20 dB
(0.1 V) through - 70 dB (0.2 mV) ranges, the Input Attenu-
ator is bypassed by the Input Sensitivity switch and the
input signal is applied directly to the Input Amplifier. Table
1
of the Detailed Block Diagram lists the maximum (full
scale) input levels, input attenuation and resulting signal
levels applied to the Input Amplifier for each INPUT
SENSITIVITY setting.
4-31. Input Amplifier.
The Input Amplifier is a low noise,
high input-impedance amplifier circuit which provides
variable gain and impedance conversion between the Input
Attenuator and the Post Attenuator. The Input Amplifier
gain, controlled by the INPUT SENSITIVITY switch, is
approximately Xl.25 ( + 1.8 dB) on the + 30 dB through
- 50 dB ranges and is increased to Xl 2.5 (+21.8 dB) on the
- 60 dB and - 70 dB ranges. Table 1 of the Detailed Block
Diagram lists the full-scale input levels, Input Amplifier gain
and full-scale output levels for each INPUT SENSITIVITY
setting.
4-32. Post Attenuator.
The Post Attenuator is a resistive
divider network controlled by the INPUT SENSITIVTY
switch and by the front panel slide switch that selects
dBV/LIN or dBm/600rl. With the slide switch in the
dBV/LIN position, the post attenuation is - 5 dB or - 15 dB.
With the switch in the dBm/600rl position, the attenuation
