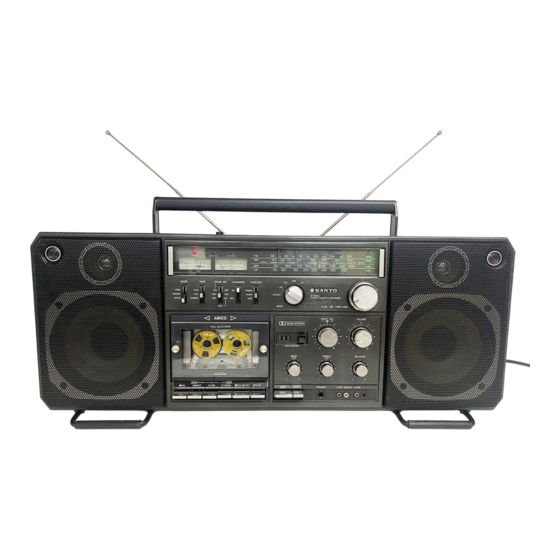

Sanyo M9998LU Service Manual

SERVICE MANUAL
(METAL TAPE)
i
{ H
i
t
i
i
|
{
i
|
SPECIFICATIONS
recording system AC bias, 4-track stereo
Erasing system AC erase, 2-track
Tape speed 4.75 cm/sec (1-7/8 i. p.s.)
Rewind and fast forward time Rewind: 7 min. 35 sec. (C—60)
Fast forward: 1 min. 50 sec. (C—60)
Frequency range FM: 67.5 —- 108MHz
SW: 5.95 - 18MHz
MW: 5265 — 1,605KHz
LW: 150 — 285KHz
Terminal impedance MIC: 16 kohms (0.3mV)
PHONG: 50 kohms (8mV}
REC/PB: (input) 10 kohms (1mV)
(output) 2.7kohms (0.5V)
EXT SP: 4 — 8 ohms
PHONES: 8 onms
Signal to noise ratio 59 dB (Dolby NR ON)
50 dB (Dolby NR OFF)
Output power
12W x 2 maximum (music power)
Power source
DC:
15V "DD" (UM—1)
x 10
12--15V Car battery adaptor
AC: 115/230V, 50/60Hz
Dimensions 664(W) x 175(D) x 267(H) mm
(26-3/16" x 6-15/16" x 10-9/16')
Weight
Approx. 9 kg (19 lbs. 14 ozs.) including batteries
