Invision MX450 Instruction Manual

www.InvisionTechnology.co.uk
Parts List:
5
1
2
6
3
4
A B C
4X 4X 4X
M4 x 12mm M5 x 12mm M6 x 12mm
D E F G
3mm
M8 x 38mm
Butterfly nut
4mm
Locking plate
16 x 8.2 x 1.5mm
120mm
threaded bolt
5mm
Severe personal injury and property damage can result from improper installation or assembly. Please read the following warning carefully before beginning.
• If you do not understand the instructions or have any concerns or questions please contact us or a competent installer.
• Do not install or assemble if the product or hardware is damaged or missing. If you require replacement parts, please contact us at Invision for assistance.
• This product fits most VESA compliant 24"-49" (Curved 49" does 3000R & above) LCD/monitors to a maximum weight of 15kg (33lb).
• For safe installation, the desk you are mounting it to must support minimum 3 times the weight of the total load (the mount, the monitor and all accessories weight).
• Do not use this product for other than the original design purpose.
• This product contains moving parts, please use with caution.
• When installing monitor take care not to damage electrical wiring or power source.
• Important - mains and data cables must be free from twisting and/or shearing.
• The manufacturer disclaims any liability for the modifications, improper installation or installation over the specified weight range. The manufacturer will not be liable for any damages arising from the use of, or
inability to use the product.
• This product is designed for indoor use only, use of this product outdoors could lead to product failure and severe personal injury.
• This product contains a high pressure gas piston This mechanism is not user serviceable and any interference could result in injury or damage. Please dispose of with caution
• In order to ensure the performance of the gas piston it is recommended to fully extend the arm several times per month.
Lets Get Started!
If you require assistance please contact us at: help@InvisionTechnology.co.uk
English

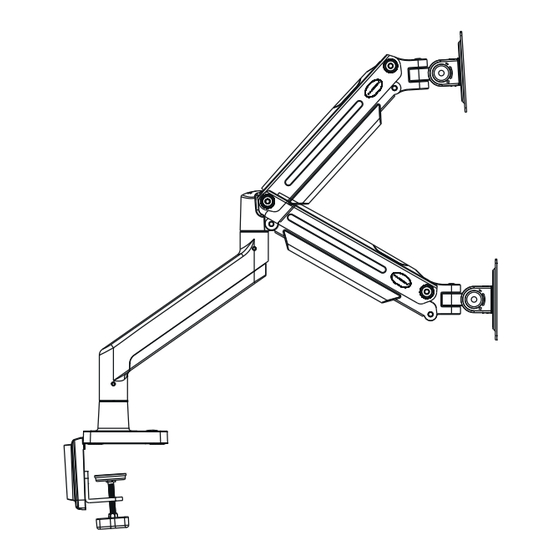

Invision MX450
Ergonomic Gas Assisted
Monitor Arm
Instruction Manual
VESA Compliance 75x75mm & 100x100mm
Recommended Screen Sizes 24" - 49"
Integrated Cable Management
Load Capacity 2 - 15kg (4.4 - 33lbs)
To receive large format PDF instructions please
email help@InvisionTechnology.co.uk
Tools List:
Important:
1. Check the box contains all the items in the Parts List. Make
sure to remove all internal packaging!
2. Check the screens VESA mounting measurements and
monitor weight.
3. Please read the instructions fully and plan how to mount
your monitor.
4. You may need additional tools: A drill will only be needed
if you are bolting it through a desk, the screwdriver is used
for attaching the monitor screen to the monitor arm.
PRO TIP: The gas spring in the arm is manufactured pre set
to a mid tension setting and is only meant to be adjusted once
fitted to the desk.
WARNING!
1
1a - Clamp Base Installation
1. Remove the clamping plate assembly (5) from the box - see Diagram 'A'.
2. Remove the screws from the rear of the clamp plate 5-1 with 5mm Allen key and put the clamp
section 5-2 and screws to one side - see Diagram 'B'.
3. Add the clamp assembly (5) to the monitor arm base (3) replacing the 2x screws from step 1 and
using 2x M6 bolts (C) and 4mm Allen key - see Diagram 'C'.
Diagram 'A'
5
Drill only
needed for
Through Desk
install
4. To set the clamp to the correct height for your desktop/work-surface add the monitor base assembly to the
edge of your desk (use the front of your desk for now if it makes it easier) - see Diagram 'D'. Take the clamp
section and wind out the knob fully. Position the clamp section (as in Diagram 'D') to the clamp plate and align
the holes. Once happy replace the screws from step '2' with 5mm Allen key and tighten.
5. Add monitor base assembly to rear of desk and wind knob and fully tighten to the desktop/work-surface
- see Diagram 'E'.
Please note: If you are mounting heavy screens on this monitor arm please evaluate what
desktop/work-surface you are mounting it to. (Example: Wooden surfaces like chipboard or MDF are
compressed high density boards and are less likely to cause marks or indentations. Natural wooden
surfaces are softer (not compressed) so you may consider adding protection.
Diagram 'D'
10 - 90mm
E (5mm)
v20231218
Letters and numbers in ( ) are referred to in the Parts List
Diagram 'B'
Clamp
plate E (5mm)
(5-1)
Clamp
section
(5-2)
2
Diagram 'C'
E (4mm)
C
Diagram 'E'
