Bosch TS1015 Manual

tool. Always secure table saw to a sturdy plat-
form or stand to avoid saw and workpiece from
tipping over when pushing long workpieces past
the table.
past the outfeed support.
When ripping LONG BOARDS or LARGE PANELS,
always use a work support. The Bosch table saw
Rear Outfeed Support TS1015 is an ideal acces-
sory to use for these applications.
Contents
Item Description
1 Support Bracket
2 M5x16mm Socket Head Bolt
3 Support Rod
4 Outfeed Support
5 Inner Washer
6 Outer Washer
7 Retaining Clip
8 Lock Knob
9 M5x12mm Socket Head Bolt
Assembly
(Fig. 1, Fig. 2, Fig. 3)
Tools Required: 5 mm hex wrench, pliers
1. Mount the Support Brackets 1, positioned as
shown, on the underside of the table on either
side, and secure each Support Bracket 1 by
threading two M5x16mm Socket Head Bolts 2
into the pre-threaded holes in the table and
tightening them finger-tight.
2. Place an Inner Washer 5 (with the larger hole)
over the Shoulder 10 of a Support Rod 3, and
position the Support Rod 3 with the Shoulder
10 in one of the holes on the Outfeed Support
4.
3. On other side of the Outfeed Support 4, place
an Outer Washer 6 (with the smaller hole)
on the Support Rod 3, and attach it with an
M5x12mm Socket Head Bolt 9, using a 5 mm
hex wrench to completely secure the bolt.
1609B08226_TS1015_Outfeed_Support_Assembly_OSI_20230404.indd 1 1609B08226_TS1015_Outfeed_Support_Assembly_OSI_20230404.indd 1

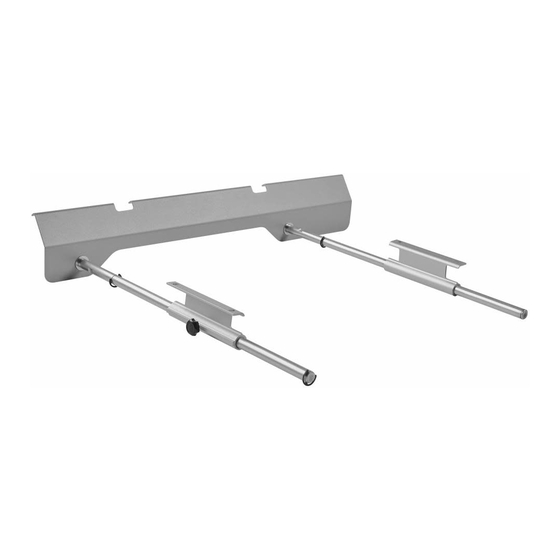

Rear Outfeed Support TS1015
for use with Bosch GTS15-10 Table Saw
Read the manual for the use
of this accessory with the
Table saw may tip if long
workpieces are unsupported
Qty.
SAVE THESE INSTRUCTIONS
4. Repeat steps 2 and 3 to attach the other Sup-
port Rod 3 to the other hole in the Outfeed
Support 4.
5. Insert the ends of the Support Rods 3 into the
Support Brackets 1.
6. Using pliers, attach two Retaining Clips 7 to
the Support Rods 3 near the Outfeed Support
4. These Retaining Clips 7 prevent the Outfeed
Support 4 from butting against the Table and
allow proper clearance for the Rip Fence.
7. Using pliers, attach two Retaining Clips 7 to
the ends of the Support Rods 3.
8. Screw the Lock Knob 8 into a Support Bracket
1.
9. Move the Outfeed Support 4 in and out a few
times. If needed, adjust the position of the
Support Brackets 1 to enable smooth move-
2
ment of the Support Rod 3.
4
10. Use a 5 mm hex wrench to completely tighten
the M5x16mm Socket Head Bolts 2.
2
1
Operation
2
The Outfeed Support 4 was designed to extend the
2
depth of the table's work surface to support longer
4
workpieces. The Outfeed Support 4 is adjustable.
1
Simply pull the center of the Outfeed Support 4,
2
slide it to the desired position, and lock it in place
by tightening the Lock Knob 8.
NOTE: When the Outfeed Support 4 is not in use,
slide it to its closed position. During transportation
and for storage, also tighten the Lock Knob 8.
-1-
