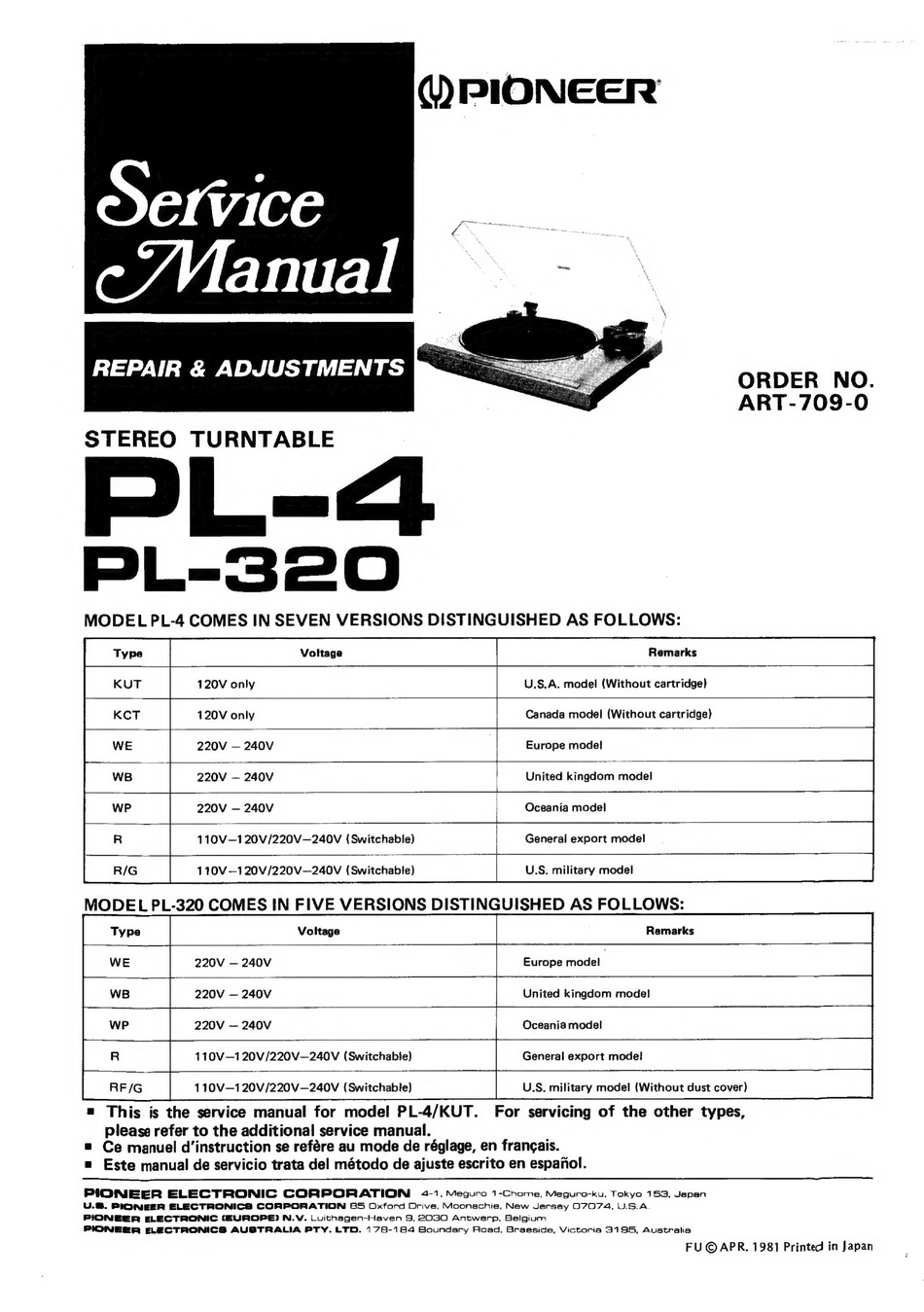

Pioneer PL-4 Service Manual

Service
PAL ETUIET
ART-709-0
STEREO TURNTABLE
L.—<}
PL-320
MODEL PL-4 COMES IN SEVEN VERSIONS DISTINGUISHED AS FOLLOWS:
Remarks
120V only U.S.A. model (Without cartridge)
120V only Canada model (Without cartridge)
220V — 240V Europe model
220V — 240V United kingdom model
220V — 240V Oceania model
110V—1 20V/220V—240V (Switchable) General export model
110V—120V/220V—240V (Switchable) U.S. military model
MODEL PL-320 COMES IN FIVE VERSIONS DISTINGUISHED AS FOLLOWS:
Voltage Remarks
220V — 240V Europe model
220V — 240V United kingdom mode!
220V — 240V Oceania model
110V—120V/220V—240V (Switchable) Generali export mode!
110V—1 20V/220V—240V (Switchable) U.S. military model (Without dust cover)
= This is the service manual for model PL-4/KUT. For servicing of the other types,
please refer to the additional service manual.
®= Ce manuel d'instruction se refére au mode de réglage, en frangais.
= Este manual de servicio trata del método de ajuste escrito en espajiol.
PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
U.S. PIONEER ELECTRONICS CORPORATION &5 Oxford Drive, Moonachie, New Jersey 07074, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Luithagen-Haven 9, 2030 Antwerp, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia
FU © APR. 1981 Printed in Japan
