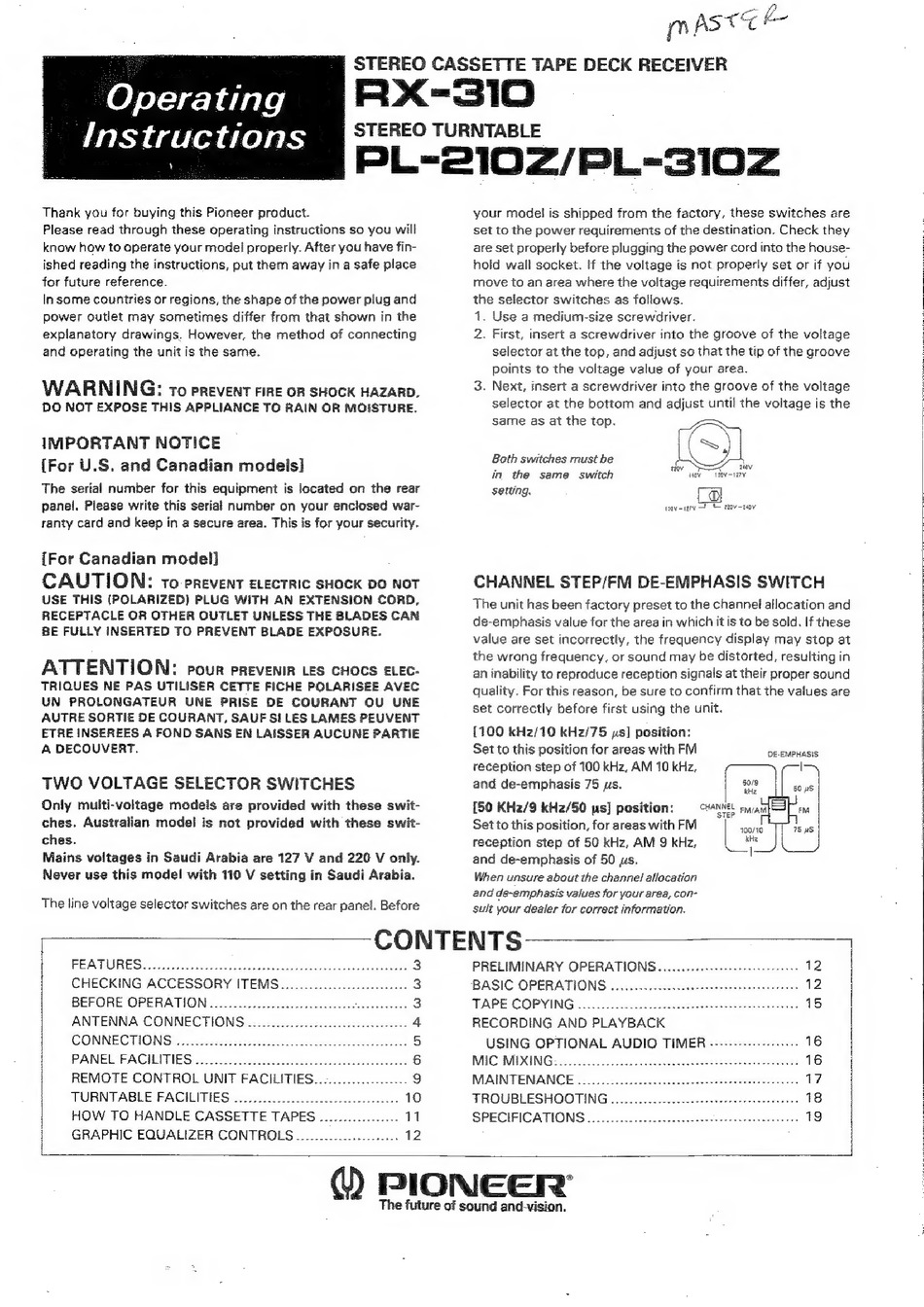

Operating
Instructions
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will
know how to operate your model properly. After you have fin-
ished reading the instructions, put them away in a safe place
for future reference.
In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting
and operating the unit is the same.
WARNING:
to prevent Fine OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT
NOTICE
{For U.S. and Canadian modeis]
The serial number for this equipment is jocated on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep in a secure area. This is for your security.
[For Canadian model]
CAUTION:
to prevent ELectRIC SHOCK DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
ATTENTION:
pour prevenin Les cHocs ELec-
TRIQUES NE PAS UTILISER CETTE FICHE POLARISEE AVEC
UN PROLONGATEUR UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT
ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE
A DECOUVERT.
TWO VOLTAGE SELECTOR SWITCHES
Only multi-voltage models are provided with these swit-
ches. Australian model is not provided with these swit-
ches.
Mains voltages in Saudi Arabia are 127 V and 220 V only.
Never use this model with 110 V setting in Saudi Arabia.
The line voltage selector switches are on the rear panel. Before
FEATURES
CHECKING ACCESSORY ITEMS
BEFORE OPERATION
ANTENNA CONNECTIONS
CONNECTIONS
|
PANEL FACILITIES ..
REMOTE CONTROL UNIT FACILITIES
TURNTABLE FACILITIES ..
HOW TO HANDLE CASSETTE TAPES ..
i
|
GRAPHIC EQUALIZER CONTROLS............0..--0005
CONTENTS
9
mAste b-
STEREO CASSETTE TAPE DECK RECEIVER
RX=-310
STEREO TURNTABLE
PL-2102/PL-310Z
your model is shipped from the factory, these switches are
set to the power requirements of the destination. Check they
are set properly before plugging the power cord into the house-
hold wall socket. if the voltage is not properly set or if you
move to an area where the voltage requirements differ, adjust
the selector switches as follows.
1. Use a medium-size screwdriver.
2. First, insert a screwdriver into the groove of the voltage
selector at the top, and adjust so that the tip of the groove
points to the voltage value of your area.
3. Next, insert a screwdriver into the groove of the voltage
selector at the bottom and adjust until the voltage is the
same as at the top.
S|
Both switches must be
*
5
:
ahv
nov
in
the
same
switch
hay
120v~ 127
setting.
ral
hroy-urw oF
rov-20v
CHANNEL STEP/FM DE-EMPHASIS SWITCH
The unit has been factory preset to the channel allocation and
de-emphasis value for the area in which it is to be sold. If these
value are set incorrectly, the frequency display may stop at
the wrong frequency, or sound may be distorted, resulting in
an inability to reproduce reception signals at their proper sound
quality. For this reason, be sure to confirm that the values are
set correctly before first using the unit.
{100 kHz/10 kHz/75 ys] position:
Set to this position for areas with FM
reception step of 100 kHz, AM 10 kHz,
and de-emphasis 75 ys.
[50 KHz/9 kHz/50 ps] position:
Set to this position, for areas with FM
reception step of 50 kHz, AM 9 kHz,
and de-emphasis of 50 ws.
When unsure about the channel alfocation
end de-emphasis values for your area, con-
sult your dealer for correct information.
DE-EMPHASIS
PRELIMINARY OPERATIONS..
BASIC OPERATIONS
Be
TAPE COPYING ..0.........cteccceesscecnene
ese eeasereesoner
RECORDING AND PLAYBACK
USING OPTIONAL AUDIO TIMER -
MIC MIXING...
MAINTENANCE .
TROUBLESHOOTING
SPECIFICATIONS ....
®) PIONEER'
The future of sound and-vision.
