Sony TA-F110 Service Manual

SERVICE MANUAL
Amplifier

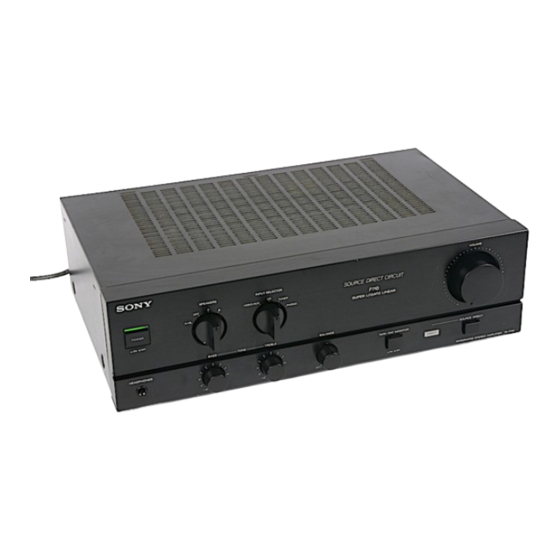

Photo: TA-F210
AEP Model
UK Model
TA-F110/F210
E Model
TA-F110
SPECIFICATIONS
Continuous RMS power output (both channels driven
simultaneously)
AEP model
DIN, 1 kHz
20 Hz — 20 kHz
THD 0.05%
UK, E model
8 ohms
Input
Input jack
DIN, 1 kHz, 8 ohms
20 Hz — 20 KHz THD 0.05%,
TA-F210
cow + 80W
STW + 570
40W + 40W | 70W + 70W
SOW + 30W | 50W + SOW
Jack type | Sensitivity
PHONO
_[ MM Phono
Impedance
TUNER, CD, VIDEO/AUX, TAPE/DAT; Phono
150 mV
S/N (weighting network, input level)
50 kilohms
50 kilohms
70 dB (A, 2 mV)
100 dB (150 mV)
Output
Jack type Voltage/impedance
Phono jacks | Voltage 150 mV
Impedance 1 kohms
AEP model:
Accepts speakers of
4-16 ohms.
SPEAKERS
UK, E model:
Accepts speakers of
8-16 ohms.
Stereo
phone jack |
HEAD-
PHONES
Accepts low and high
impedance headphones.
Tone controls
BASS +7 dB (100 Hz) 500 Hz
TREBLE +8 dB (15 kHz) 3 kHz)
Loudness (Attenuation 30 dB) (TA-F210 only)
+3 dB (100 Hz)
+3 dB (10 kHz)
— Continued on next page —
INTEGRATED STEREO AMPLIFIER
