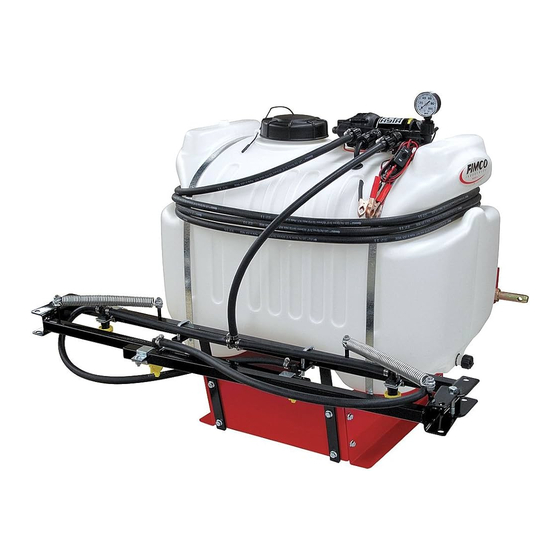

Fimco LG-40-4-3PT Owner's Manual

Model: LG-40-4-3PT (5302941)
(40 Gallon, 12 Volt, Bolt-Together, 3 Point Sprayer w/4-Nozzle Boom)
Category I
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
CAUTION: When fully filled with water,
this sprayer will weigh approx. 430 Lbs.
Always check the vehicle load rating
before using this sprayer. Do not
exceed the recommended rating.
Technical Specifications

40 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI

Deluxe Pistol Grip Handgun

25 Ft. Handgun Hose (3/8" I.D.)

25 Ft. Vertical throw, 35 Ft. Horizontal Throw

Pressure Gauge

Bypass (Recirculation) Line

Bolt-Together Frame

4-Nozzle Boom Assembly, 120" Spray Coverage

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI
Assembly Instructions

The sprayer is partially assembled.

Follow the steps on pages 2 & 3 to properly assemble
the sprayer.

After assembly is complete and before testing your
sprayer, make sure you connect the electrical hook-up to
the end of your pump and clip the clips to a fully charged
battery. The red wire must be connected to the positive
(+) and the black wire should be connected to the nega-
tive (-).

The drain plug assembly should already be attached to
the tank
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195133 (02/19)]
Page 1
