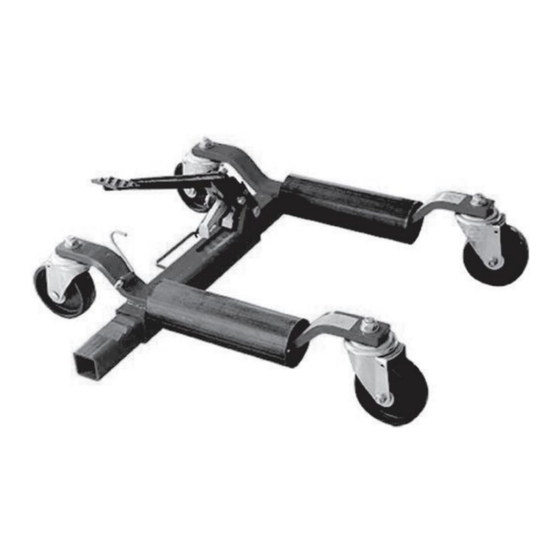

WHEEL DOLLY
MODEL: TL-9013C
We continue to be committed to provide you tools with competitive price. "Save Half", "Half
Price" or any other similar expressions used by us only represents an estimate of savings you
might benefit from buying certain tools with us compared to the major top brands and doses
not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when you are placing an order with us if you are actually saving half in
comparison with the top major brands.
Advertisement
Related Manuals for VEVOR TL-9013C
Summary of Contents for VEVOR TL-9013C
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support WHEEL DOLLY MODEL: TL-9013C We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safety And Warning
Safety & Warning Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property. While assembling and using this product, keep work area clean and ... -
Page 4: Specifications
Specifications Model Series TL-9013C Maximum Load Capacity (lb) 1500 Range of Tyre Width (inch) 0-13 Net Weight (kg) Gross Weight (kg) 19.5 - 4 -... - Page 5 Figure of the Product Figure 1 - 5 -...
- Page 6 Part Description Screw M8x16 Washer 8 Steel bowl Roller Swivel Caster A Outter tube Assembly Swivel Caster B Nut M6 O-Ring Nut M12 Pedal Lock Inter tube Assembly Rubber Pad Front Pawl Spring B Lever Riveting Plate Back Pawl Foot Pedal Lever Press Plate Screw M8X20...
- Page 7 Assembly Instructions A. Assemble on a flat, level, hard and smooth surface. B. Attach two Locking Swivel Casters to the side of the frame that has the foot pedal. C. Attach two Swivel Caters to the other side. Figure 2 D.
- Page 8 Operating Instructions A. Release the Foot Pedal by depressing it and disengaging the Pedal Lock. Push Lever down and unlock Locking Swivel Casters. B. Lifting Tire: a.With the Lever in the down position, roll Dolly in front of tire, spread Arms apart, then push Dolly forward so that Rollers are on either side of tire.
- Page 9 Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai...
- Page 10 Technical Support and E-Warranty Certificate www.vevor.com/support Made in China...
