Edition
11/2023
Equipment Manual
SIMATIC NET
Rugged multi service platforms
RUGGEDCOM RX5000
https://www.siemens.com/ruggedcom

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC NET RUGGEDCOM RX5000

Summary of Contents for Siemens SIMATIC NET RUGGEDCOM RX5000

  • Page 1 Edition 11/2023 Equipment Manual SIMATIC NET Rugged multi service platforms RUGGEDCOM RX5000 https://www.siemens.com/ruggedcom...
  • Page 2 Preface Introduction Installing the Device SIMATIC NET Communication ports Rugged multi service platforms RUGGEDCOM RX5000 Device Management Technical Specifications Equipment Manual Certification 11/2023 C79000-G8976-1058-15...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Table Of Contents

    SIMATIC NET glossary ......................vi Registered trademarks ......................vi Warranty ..........................vii Training ..........................vii Customer support ......................... viii Contacting Siemens ......................viii Introduction ........................... 1 Feature highlights ....................1 Description ......................2 Article number ...................... 4 Decommissioning and disposal ................8 Cabling Recommendations ..................
  • Page 5 Table of contents SFP transceivers ....................35 Device Management ......................37 Connecting to the Device ..................37 IP address assignment ..................38 Configuring the Device ..................39 Accessing the CompactFlash Card ................ 39 Technical Specifications ...................... 43 General specifications ..................43 Power Supply Specifications ................

  • Page 6: Preface

    Siemens' products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer's exposure to cyber threats.

  • Page 7: Supplementary Documentation

    SIMATIC NET glossary The SIMATIC NET glossary describes special terms that may be used in this document. The glossary is available online via Siemens Industry Online Support (SIOS) at: https://support.industry.siemens.com/cs/ww/en/view/50305045 Registered trademarks The following and possibly other names not identified by the registered trademark sign ®...

  • Page 8: Warranty

    Warranty Siemens warrants this product for a period of five (5) years from the date of purchase, conditional upon the return to factory for maintenance during the warranty term. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void.

  • Page 9: Customer Support

    Call a local hotline center to submit a Support Request (SR). To locate a local hotline center, visit https://w3.siemens.com/aspa_app/?lang=en. Mobile app Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to: •...

  • Page 10: Introduction

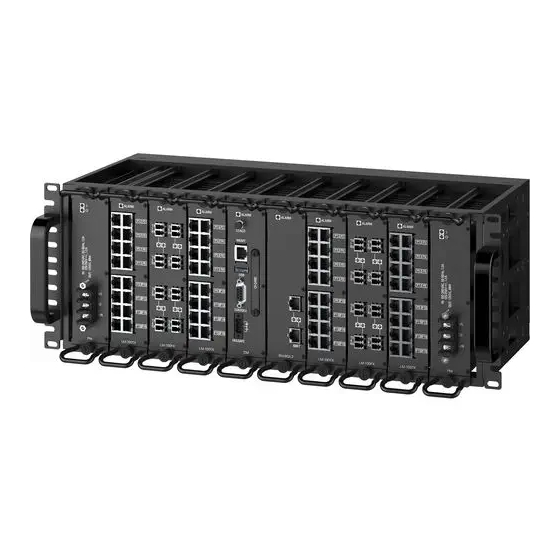

    Introduction The RUGGEDCOM RX5000 is a high-port density routing and switching platform, designed to operate in harsh environments.The RUGGEDCOM RX5000 can withstand high levels of electromagnetic interference, radio frequency interference, and a wide temperature range of -40 to 85 °C (-40 to 185 °F). The RUGGEDCOM RX5000 is designed to meet the challenging climatic and environmental demands found in utility, industrial, and military network applications.

  • Page 11: Description

    Introduction 1.2 Description • Load sharing of 45/55 percent during normal operation Reliability in harsh environments • Immunity to EMI and high voltage electrical transients • Zero-Packet-Loss Technology • -40 to 85 °C (-40 to 185 °F) operating temperature (no fans within chassis or modules) •...
  • Page 12 Introduction 1.2 Description When the RUGGEDCOM RX5000 is configured for rack front mounting, these ports, controls and LEDs are located on the front panel. Power Supply Module Indicator LEDs Alarm Indicator LEDs Utility USB Port Management Ethernet Port Lamp Test/Alarm Cut-Off (LT/ACO) Button RS232 Serial Console Port (DB9) Figure 1.2 Front Panel...

  • Page 13: Article Number

    Introduction 1.3 Article number Failsafe Alarm Relay Latches to default state when a power disruption or other alarm condition occurs. For more information, refer to: • "Connecting the Failsafe Alarm Relay" (Page 21) • "Failsafe Relay Specifications" (Page 43) Power Supply Terminal Block A pluggable terminal block.
  • Page 14 Introduction 1.3 Article number Power supply 2 and terminal block Option Description XX = blank module HI = 88-300 VDC or 86-264 VAC, screw terminal block Mounting options Option Description 00 = No mounting option PM = Panel mount kit RM = 19" rack mount kit Orientation options Option Description...
  • Page 15 Introduction 1.3 Article number Software options Option Description L2SE = Layer 2 Standard Edition L3SEL3HW = Layer 3 Standard Edition (with L3 HW) L3SEL2HW = Layer 3 Standard Edition (with L2 HW) L3SECL3HW = Layer 3 Security Edition (with L3 HW) L3SECL2HW = Layer 3 Security Edition (with L2 HW) Slot 1 options Option...
  • Page 16 Introduction 1.3 Article number Option Description 4CG01 = 4x 10/100/1000TX RJ45 require 88Gbps Switch module 4FG50 = 4x 1000LX SFP Blank (no transceivers) require 88Gbps Switch module S01 = 8x RS232/RS422/RS485 via DB9 8FX50 = 8x 100FX SFP PRP = 1x Pair (A/B) Gigabit PRP SFP Blank (no transceivers) require 88Gbps Switch module Slot 4 options Option...

  • Page 17: Decommissioning And Disposal

    WEEE directive 2012/19/EU for the disposal of electrical and electronic equipment. Do not dispose of devices at public disposal sites. For environmentally friendly recycling and the disposal of devices, contact a certified disposal company for electronic scrap or your Siemens contact. For more information, refer to https://support.industry.siemens.com/cs/ww/en/ view/109479891.

  • Page 18: Protection On Twisted-Pair Data Ports

    Siemens also does not recommend using copper Ethernet ports to interface with devices in the field across distances that could produce high levels of ground potential rise (i.e. greater than 2500 V), during line-to-ground fault conditions.

  • Page 19: Supported Fiber Optic Cables

    For the required wire gauge, refer to the power supply specifications in the "RUGGEDCOM RX5000 Modules Reference Manual"l [https:// support.industry.siemens.com/cs/ww/ en/ps/21322/man]. Mounting brackets For mounting the device to a standard 48 cm (19 in) rack. Two brackets are pre-installed on the device.

  • Page 20: Parts And Accessories

    For mounting the device to a panel. Parts and accessories Parts and accessories, including removable media, kits, cables, and other components, are available through the RUGGEDCOM Selector [https://ruggedcom- selector.automation.siemens.com]. Modules Available modules are listed in the RUGGEDCOM Modules Reference Manual [https:// support.industry.siemens.com/cs/ww/en/ps/21322/man].
  • Page 21 Introduction 1.7 Parts and accessories CompactFlash (CF) cards Component Description Article number RUGGEDCOM RX5000 An industrial-grade 4 GB 6GK6000-8HT01-0FB2 Replacement 4GB CF with ROX-II CompactFlash card with the latest version of RUGGEDCOM ROX installed. RUGGEDCOM RX5000 An industrial-grade 1 GB 6GK6000-8HT01-0FC2 Replacement 1GB CF with ROX-II CompactFlash card with the latest version of RUGGEDCOM...

  • Page 22: Installing The Device

    Installing the Device This chapter describes how to install the device, including mounting the device, installing/removing modules, connecting power, and connecting the device to the network. DANGER Electrocution hazard – risk of serious personal injury and/or damage to equipment Before performing any maintenance tasks, make sure all power to the device has been disconnected and wait approximately two minutes for any remaining energy to dissipate.

  • Page 23: General Procedure

    This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens Canada Ltd. could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment.

  • Page 24: Unpacking The Device

    Visually inspect each item in the package for any physical damage. Verify all items are included. Note If any item is missing or damaged, contact Siemens for assistance. Mounting the device The RUGGEDCOM RX5000 is designed for maximum mounting and display flexibility.

  • Page 25: Mounting The Device To A Rack

    Installing the Device 2.3.1 Mounting the device to a rack Forced airflow is not required. However, any increase in airflow will result in a reduction of ambient temperature and improve the long-term reliability of all equipment mounted in the rack space. Note For detailed dimensions of the device with mounting hardware installed, refer to "Dimension Drawings"...

  • Page 26: Mounting The Device To A Panel

    Installing the Device 2.3.2 Mounting the device to a panel Rear Front Mounting brackets Figure 2.1 Mounting brackets If required, install mounting brackets on the opposite side of the device to protect from vibrations. Insert the device into the rack. Secure the mounting brackets to the rack using the supplied hardware. 2.3.2 Mounting the device to a panel For panel installations, the RUGGEDCOM RX5000 can be equipped with adapters pre-...

  • Page 27: Installing The Chassis Ground Connection

    Installing the Device 2.4 Installing the Chassis Ground Connection Screw Adapter Figure 2.2 Panel Mounting Install the supplied screws to secure the adapters to the panel. Make sure the screws are torqued to 2 ± 0.1 N·m (18 ± 1 lbf-in) Installing the Chassis Ground Connection If the ground terminal on the power supply module(s) is not connected to safety Earth, a connection must be provided from the chassis ground terminal on the RUGGEDCOM MX5000 chassis.

  • Page 28: Grounding The Device

    Installing the Device 2.5 Grounding the device External Tooth Lock Washer #8-32×5/16" Pan Head Screw Grounding Cable Figure 2.3 Chassis Ground Cable Assembly Secure the grounding cable and external tooth lock washer to the RUGGEDCOM MX5000 with one pan head screw. Torque the screw to 3.4 N·m (30 lbf·in). Note The other end of the grounding cable will be connected to the inside of the enclosure in later steps.
  • Page 29 Installing the Device 2.5 Grounding the device NOTICE If the ground terminal on the power supply module(s) is connected to safety Earth, a connection from the chassis ground terminal is not required. Functional ground EMC disturbances are diverted to ground via the functional ground. This ensures the immunity of the data transmission.

  • Page 30: Connecting The Failsafe Alarm Relay

    Installing the Device 2.6 Connecting the Failsafe Alarm Relay M4x.7 (#8-32) screw M4 (#8) ring tongue Figure 2.4 Ground connection assembly Crimp an M4 (#8) ring tongue to the end of the ground wire. Using the M4x.7 (#8-32) screw , secure the M4 (#8) ring tongue of the ground wire to the chassis ground connection.

  • Page 31: Connecting Power

    Installing the Device 2.7 Connecting Power   Function Normally Closed Common Ground Normally Open Normally Open Common (Ground) Normally Closed Figure 2.5 Failsafe Alarm Relay Wiring Connecting Power The RUGGEDCOM RX5000 supports dual redundant AC and/or DC power modules that can be installed in any combination. The RUGGEDCOM RX5000 is equipped with a screw-type terminal block, which provides power to both power modules.

  • Page 32: Installing/Removing Power Supply Modules

    Installing the Device 2.7.1 Installing/removing power supply modules • For 125/250 VDC rated equipment, an appropriately rated DC circuit breaker must be installed. • It is recommended to provide a separate circuit breaker for each power module module. • Equipment must be installed according to applicable local wiring codes and standards.
  • Page 33 Installing the Device 2.7.1 Installing/removing power supply modules NOTICE Hot plugging power supply modules Power supply modules are hot pluggable. Hot plugging allows you to exchange power supply modules that have different voltage ratings while the device is powered by the redundant power supply module Wiring from the power source to the power supply module must be redesigned following any hot plug operation.
  • Page 34 Installing the Device 2.7.1 Installing/removing power supply modules Screws Power supply Chassis Figure 2.7 Removing a power supply module Slide the module out of the chassis. Install a new power supply module or a blank module to prevent the ingress of dust and dirt. Installing a power supply module There are four scenarios in which a power module can be installed.
  • Page 35 Installing the Device 2.7.1 Installing/removing power supply modules Figure 2.8 Installing a power supply module Using a Torx T10 screwdriver, hand-tighten the screws on the power supply module to secure it to the chassis. Check the I and O LEDs on the module. If both LEDs are green, the power supply module is receiving and distributing power.

  • Page 36: Connecting Ac Power

    Installing the Device 2.7.2 Connecting AC Power Using a Torx T10 screwdriver, hand-tighten the screws on the power supply module to secure it to the chassis. Connect an appropriate power source to the terminals on the associated power input terminal block. For more information, refer to either "Connecting AC Power"...

  • Page 37: Connecting Dc Power

    Installing the Device 2.7.3 Connecting DC Power Neutral Terminal Figure 2.10 AC Terminal Block Wiring Connect the negative wire from the power source to the neutral terminal on the terminal block. NOTICE If the ground terminals are not connected to safety Earth, the chassis ground connection must be connected.
  • Page 38 Installing the Device 2.7.3 Connecting DC Power NOTICE If the ground terminals are not connected to safety Earth, the chassis ground connection must be connected. For more information, refer to "Grounding the device" (Page 19). Using a braided wire or other appropriate grounding wire, connect the ground terminal to the chassis ground connection.
  • Page 39 Installing the Device 2.7.3 Connecting DC Power RUGGEDCOM RX5000 Equipment Manual, 11/2023, C79000-G8976-1058-15...

  • Page 40: Communication Ports

    The status of each communication port is indicated by the status LEDs on the module. Use RUGGEDCOM ROX to determine which ports are equipped on the device. For more information, refer to the associated "RUGGEDCOM ROX Configuration Manuals" [https://support.industry.siemens.com/cs/ww/en/ps/21322/man] associated with the installed software release. Figure 3.1 Slot designations...

  • Page 41: Media Modules

    Available modules A variety of modules are available for use with the RUGGEDCOM RX5000. For more information, refer to the "RUGGEDCOM RX5000 Modules Reference Manual" [https://support.industry.siemens.com/cs/ww/en/ps/21322/man]. Requirements/restrictions Note the following restrictions: Module type Maximum allowed Copper Ethernet modules...
  • Page 42 • The module was installed in an empty slot while the device is in operation For more information about hot swapping/hot plugging requirements, refer to the "RUGGEDCOM ROX Configuration Manuals" [https://support.industry.siemens.com/ cs/ww/en/ps/21322/man] associated with the installed software release. Required tools/hardware...
  • Page 43 Communication ports 3.1 Media modules Figure 3.2 Removing a media module Install a new media module or a blank module (to prevent the ingress of dust and dirt). [Optional] If necessary, install the device in the rack. For control and switch modules only, connect power to the device. Installing a media module To install a media module, do the following: For control (CM) and switch (SM) modules only, make sure power to the device...

  • Page 44: Sfp Transceivers

    "RUGGEDCOM SFP Transceivers Reference Manual" [https:// support.industry.siemens.com/cs/ww/en/ps/21322/man]. Note Only use SFP transceivers approved by Siemens for RUGGEDCOM products. Siemens accepts no liability as a result of performance issues related in whole or in part to third-party components. RUGGEDCOM RX5000...
  • Page 45 3.2 SFP transceivers Installation/removal For instructions on how to install and remove SFP transceivers, refer to the "RUGGEDCOM SFP Transceivers Reference Manual" [https:// support.industry.siemens.com/cs/ww/en/ps/21322/man]. NOTICE Replacement/exchange during operation ROX supports replacing and exchanging SFP transceivers while the device is in operation.

  • Page 46: Device Management

    Device Management This section describes how to connect to and manage the device. Connecting to the Device The following describes the various methods for accessing the RUGGEDCOM RX5000 console and Web interfaces on the device. For more detailed instructions, refer to the "RUGGEDCOM ROX II Configuration Manual"...

  • Page 47: Ip Address Assignment

    When the device is configured to retrieve an IP address from a DHCP server, an IP address is assigned automatically. For more information, refer to the "RUGGEDCOM ROX Configuration Manuals" [https://support.industry.siemens.com/cs/ww/en/ps/21322/man] associated with the installed software release. RUGGEDCOM RX5000 Equipment Manual, 11/2023, C79000-G8976-1058-15...

  • Page 48: Configuring The Device

    Use the SINEC PNI (Primary Network Initialization) tool to manually assign a static IP address to the device. Requires a Windows PC and Ethernet connection. For more information, refer to https://support.industry.siemens.com/cs/ww/en/ ps/26672. • Set a static IP address through a serial connection Connect a PC to the USB serial console port and establish a serial connection with a terminal emulator, such as PuTTy or Tera Term.
  • Page 49 The following will void the warranty and potentially result in configuration data corruption/loss: • Using a CF card not approved by Siemens for use with this device • Removing the CF card in any scenario other than those described in this section...
  • Page 50 Device Management 4.4 Accessing the CompactFlash Card Remove the CF card access panel. Ejector Button CompactFlash Card Access Panel Figure 4.4 Removing the CF Card Press the ejector button to the left of the CF card and then pull the card out. Secure the CF card access panel to the chassis.
  • Page 51 Device Management 4.4 Accessing the CompactFlash Card RUGGEDCOM RX5000 Equipment Manual, 11/2023, C79000-G8976-1058-15...

  • Page 52: Technical Specifications

    Technical Specifications This section provides important technical specifications related to the device and available modules. General specifications Insulation Class I Overvoltage category OVC II Power Supply Specifications Power Input Range Internal Max. Power Supply Type Fuse Rating Consumption HI (125/250 VDC) 88 VDC 300 VDC 6.3 A, 250 V(T)

  • Page 53: Mechanical Specifications

    Technical Specifications 5.5 Mechanical Specifications Ambient Operating -40 to 85 °C (-40 to 185 °F) Temperature Ambient Storage -40 to 85 °C (-40 to 185 °F) Temperature Ambient Relative 5% to 95% Humidity Maximum Altitude 2000 m (6562 ft) Measured from a 30 cm (12 in) radius surrounding the center of the enclosure. Operating temperature may vary based on the limitations of installed SFPs.
  • Page 54 Technical Specifications 5.6 Dimension Drawings 133.4 117.6 101.6 12.7 16.0 25.4 221.5 311.9 16.0 31.8 Figure 5.1 Overall Dimensions RUGGEDCOM RX5000 Equipment Manual, 11/2023, C79000-G8976-1058-15...
  • Page 55 Technical Specifications 5.6 Dimension Drawings RUGGEDCOM RX5000 Equipment Manual, 11/2023, C79000-G8976-1058-15...

  • Page 56: Certification

    Approvals This section details the standards to which the RUGGEDCOM RX5000 complies. Note All relevant certificates and test reports are available on Siemens Industry Online Support [https://support.industry.siemens.com/cs/ww/en/ps/16008/cert]. 6.1.1 UKCA This device is certified for use in Great Britain and bears the United Kingdom Certified Assessed (UKCA) marking.

  • Page 57: European Commission (Ec)

    Certification 6.1.3 European Commission (EC) 6.1.3 European Commission (EC) This device is declared by Siemens Canada Ltd. to comply with essential requirements and other relevant provisions of the following EC directives: • EN 62368-1 Information Technology Equipment – Safety – Part 1: General Requirements •...

  • Page 58: Ised

    Certification 6.1.6 ISED 6.1.6 ISED This device is declared by Siemens Canada Ltd. to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A) 6.1.7 This device was designed and manufactured using a certified ISO (International...

  • Page 59: Other Approvals

    China RoHS (relating to SJ/T 11364) Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products Declarations of conformity for each directive are available online via Siemens Industry Online Support [https://support.industry.siemens.com/]. 6.1.10 Other Approvals This device meets the requirements of the following additional standards: •...
  • Page 60 5 kV   AC Power ports 5 kV   Siemens-specified severity levels IEEE 1613 EMC Type Tests Note RUGGEDCOM products meet Class 1 requirements for copper Ethernet configurations and Class 2 for fiber Ethernet configurations. Class 1 allows for temporary communication loss, while Class 2 requires error-free and interrupted communications.
  • Page 61 Certification 6.2 EMC and Environmental Type Tests Description Test Levels Enclosure Air +/-4 kV, +/-8 kV, +/-15 kV Radiated RFI Enclosure ports 35 V/m Fast Transient Signal ports +/- 4 kV @ 2.5 kHz DC Power ports +/- 4 kV AC Power ports +/- 4 kV Earth ground ports +/- 4 kV...
  • Page 62 For more information Siemens RUGGEDCOM https://www.siemens.com/ruggedcom Industry Online Support (service and support) https://support.industry.siemens.com Industry Mall https://mall.industry.siemens.com Siemens Canada Ltd. Digital Industries Process Automation 300 Applewood Crescent Concord, Ontario, L4K 4E5 Canada © 2023 Siemens Canada Ltd. Subject to change...
