Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.
Tools Needed
• Phillips head screwdriver

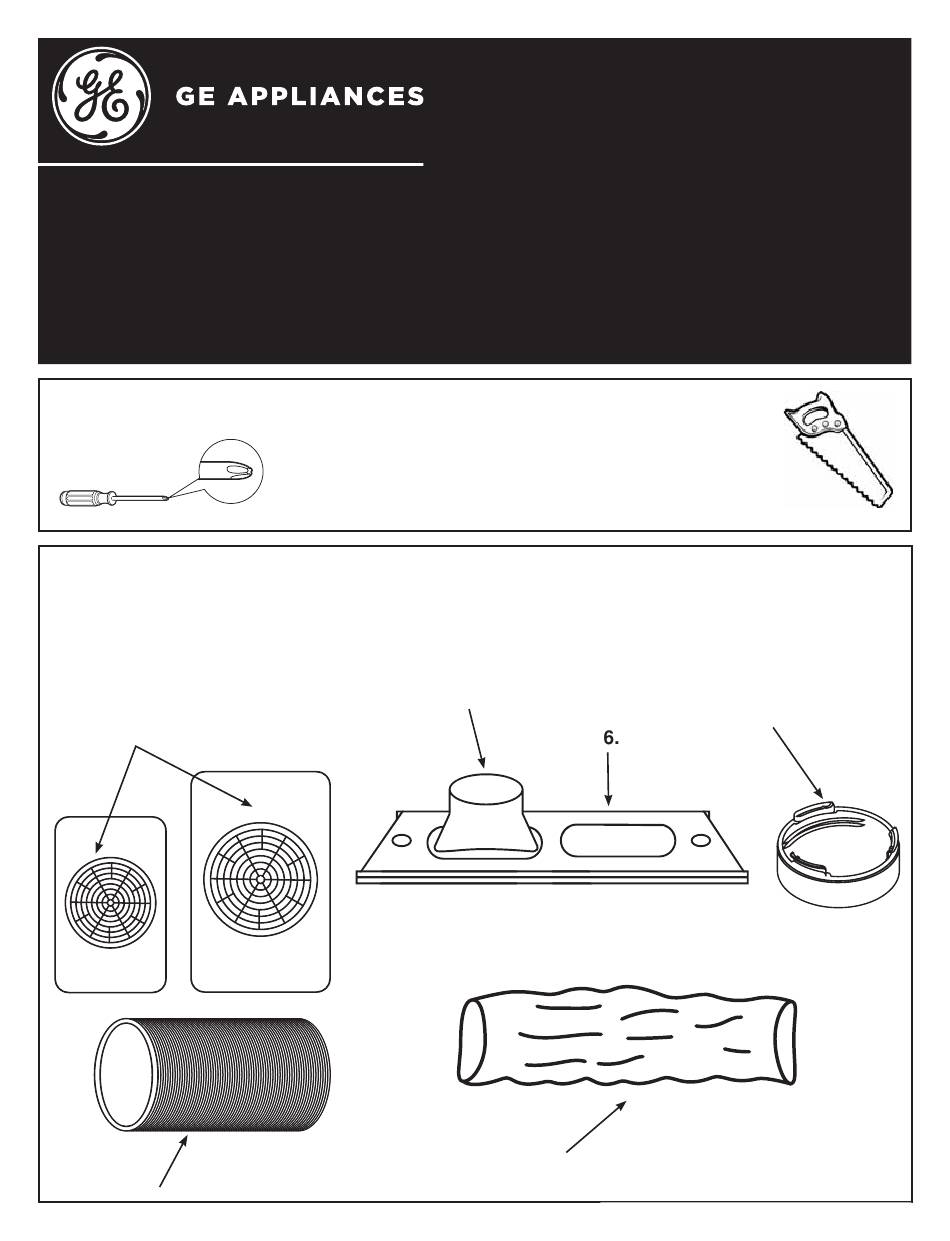

Parts Included:
1. Dual Hose Conversion Baffles (2)
2. Intake Hose Adapter to AC
3. Intake Hose Adapter to Window Kit
4. Intake Hose
5. Exhaust Hose Insulation
6. Dual Hose Window Panel
1.
4.
Installation Instructions
for your new
RAP02/RAP02W
Dual Hose Conversion Kit
• Small hand saw - if trimming of the
window expansion panels is required
3.
5.
2.
