- Page 1 OPERATION MANUAL Hockey & Lacrosse Models...
- Page 2 A NOTE ABOUT THIS MANUAL This manual is comprehensive for all Varsity Scoreboards hockey/lacrosse models. The Network Wizard, Home Menu Operation, and the Options Menu will be used no matter what scoreboard you have purchased. Your model may differ in the individual sport sections, which are not...
- Page 3 TABLE OF CONTENTS THE WIRELESS SCOREBOARD CONTROLLER ....4–5 GETTING STARTED ....... 6 NETWORK WIZARD .
-
Page 4: The Wireless Scoreboard Controller

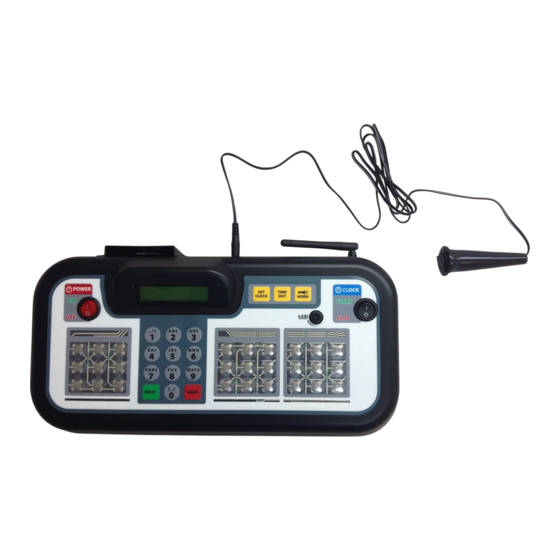

THE WIRELESS SCOREBOARD CONTROLLER THE FACE 1 / Power 6 / Home Score 10 / Guest Score Keypad Turns Controller on/off. Used to enter scoring infor- Used to enter scoring infor- mation for the Home team mation for the Guest team. 2 / LCD Display 11 / Game Keypad 7 / Reset Key... - Page 5 THE BACK 14 / DIN Socket Charging the Controller For DIN cables (only used While the controller is in the ‘Off’ position, connect the AC adapter to the for hard-wired setup). power jack on the back of the controller and into a standard 120V power 15 / Power Jack source for charging.
-
Page 6: Getting Started
GETTING STARTED Make sure the Game Inserts that came with your scoreboard are in the proper location on the Wireless Scoreboard Controller (Controller, for short). The Home Score goes into the far left slot; the Guest Score goes into the slot immediately to the right of the number pad;... -
Page 7: Network Wizard
NETWORK WIZARD Here we’ll show you how to set up one or multiple scoreboards and link them to a single Controller, as well as create easy-to-use presets for different sports. Make sure all scoring and timing equipment such as scoreboards, shot clocks, pitch count, delay of game clocks, locker room Turn on your Controller. - Page 8 THE SELECT SPORT SCREEN The sports available on your keyboard Controller will depend on the scoreboard you have purchased. You will have the option to set up other sports after you complete the first. Use the Up and Down arrows to select the sport you would like to set up first and press Enter.
- Page 9 SAVING THE NETWORK The LCD screen will display Save Network As: Use the Number Pad to give the network a name (this could just be the sport or something more specific such as Varsity Basketball or Jr. Varsity Baseball). Note: Default name will be the sport you chose. Use the Undo key to back over existing letters and retype with the Number Pad.
-
Page 10: Operations Manual
OPERATIONS MANUAL HOME MENU System Settings SYSTEM SETTINGS System Settings is accessed by pressing and holding Undo while turning the controller on. Here, you may Change Scoreboard Settings for any individual device, Add Network, Edit Network, or Delete Network. SCOREBOARD DEFAULT The first option will display as Scoreboard Default. - Page 11 NETWORK SETUP The second option will display as Network Setup. To change any of the networks on your devices, press Enter. ADD A NEW NETWORK This option allows you to create a new network. To begin press Enter and then refer to STEP 3 of the Network Wizard section of the manual.
- Page 12 OPTIONS MENU Use this section to make changes to the default settings for the current Network. To access this Options menu you will need to be in a network and in Game Mode. Press and hold the Option key to go the Options Menu. Options are model-specific. HOCKEY/LACROSSE OPTIONS AND OPERATION Team Names...
- Page 13 HOCKEY OPERATION Explains keypad functions for scoreboard control. Functions are model specific. Home Score Keypad Press this key to add one Press this key to subtract one point to the Home Score point from the Home Score +1 Shot -1 Shot Press this key to add one to Press this key to subtract one the Home Shots on Goal...
- Page 14 Guest Score Keypad Press this key to add one Press this key to subtract one point to the Guest Score point from the Guest Score +1 Shot -1 Shot Press this key to add one to Press this key to subtract one the Guest Shots on Goal from the Guest Shots on Goal Goal...
- Page 15 Hockey/Lacrosse Keypad +1 Second Press this key to add one second to the clock Up & Down Arrows Press these keys to scroll between items while in the Options menu Period Press this key to advance the period by one Option Enter Press and hold this key to...
- Page 16 Number Keypad Numbers / Used when editing input, etc. Reset / Press and hold to go back to Home Menu Power Switch This switch is used to power On and Off the LCD keyboard Controller Clock Switch This switch is used to Start and Stop the game clock...
- Page 17 Set Clock Pressing the Set Clock key on the keypad will take you to the Set Clock Menu. This menu will enable you to manipulate the scoreboard’s clock. Use the Up and Down keys to scroll through several different options, listed below (for scoreboards with clock digits only): Use Time 1 / Press the Enter key on this option to use the Time 1 preset...
- Page 18 SYSTEM SETTINGS Reset for Another Game To reset the scoreboard to prepare for another game, press and hold Reset for three seconds. All scoring information on both the Controller’s LCD and the scoreboard will be cleared, while all option settings will be saved. Shut Down After the last game, turn the Controller’s Power switch Off.
- Page 19 That’s it! Now go play some ball.
