- Page 1 QW-S41I472X-DE...
-
Page 3: Table Of Contents
CONTENTS CHAPTER-1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER-2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER-3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection Fitting the machine undercounter... -
Page 4: Chapter-1: Explanation Of Product

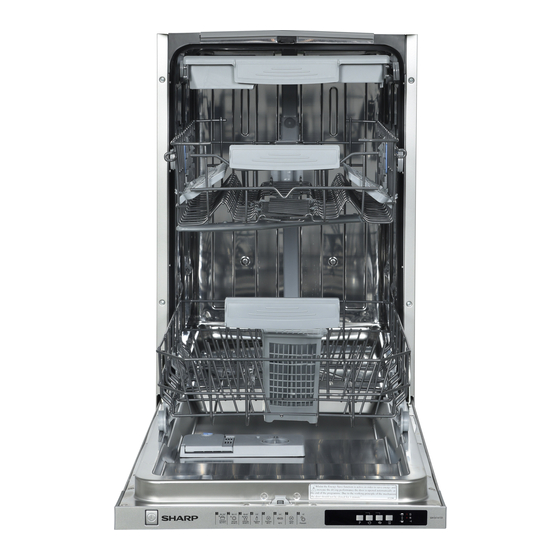

CHAPTER -1: EXPLANATION OF PRODUCT 1. Upper basket with racks 7. Control Panel 2. Upper spray arm 8. Detergent and rinse-aid dispenser 3. Lower basket 9. Salt dispenser 4. Lower spray arm 10. Upper basket track latch 5. Filters 11. Upper Cutlery Basket 6. -
Page 5: Technical Specifications
CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 10 place settings Height 820 mm - 870 mm Width 450 mm Depth 550 mm Net Weight 32 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power... -
Page 6: Chapter-2: Safety Information And Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling. - Page 7 • Place knives and other sharp-ended objects in the cutlery basket in bladedown position. • If the supply cord is damaged, it must be replaced by SHARP, or its service agent. • If EnergySave option is selected as “Yes”, the door will be opened at the end of the program.
-
Page 8: Recommendations
CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recommendations • For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it. • Use the pre-wash programme only when necessary. •... -
Page 9: Water Connections
CHAPTER -3: INSTALLING THE MACHINE If the door of machine does not close properly, check if the machine is stable on the floor if not, adjust the feet and ensure its stable position. Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your property so as to avoid any damage to your machine because of contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing,... -
Page 10: Electrical Connection
CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, SHARP will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. -
Page 11: Chapter-4: Preparing The Machine For Use
CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •... -
Page 12: Adjusting Salt Consumption
CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21... -
Page 13: Combined Detergent
CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce sufficent results under certain conditions only. Points to consider when using this type of products: •... -
Page 14: Chapter-5: Loading Your Dishwasher
The upper basket is for thin and narrow items. You are recommended to use the cutlery basket in order to obtain the best result. To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets. - Page 15 CHAPTER-5: LOADING YOUR DISHWASHER Lower Basket Folding Racks Folding racks consisting of two parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained.
- Page 16 Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-16...
-
Page 17: Alternative Basket Loads
CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket EN-17... - Page 18 CHAPTER-5: LOADING YOUR DISHWASHER Faulty loads ñ Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door. EN-18...
-
Page 19: Chapter -6: Programme Descriptions
CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No Auto Auto Auto Extra Hygiene Intensive Normal Delicate Programme 60-70°C 50-60°C (P2) 30-50°C(P3) 70°C (P4) names and (P1) temperatures Type of food Automatically adjust the washing time with Dishes with dense waste temperature and amount of water by determining dirt waiting for a the soil level of dishes... - Page 20 CHAPTER -6: PROGRAMME DESCRIPTIONS Programme items Programme No Express 50’ Quick Prewash 65°C ( reference ) Programme 65°C ( P5) 50°C ( P6) 40°C ( P7) - ( P8 ) names and temperatures Type of food waste Soups, sauces, Coffee,milk,tea,cold Coffee,milk,tea,cold Pre-wash tor ise pasta, eggs,...
- Page 21 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME GETTING FAMILIAR WITH YOUR MACHINE 3 4 5 6 1.) Power On/Off Button When the Power On/Off button is pressed, end of program indicator starts lighting. 2.) Program Display Program display indicates the times of the programs and the remaining time during the program flow. You can also follow-up the selected programs by this display.
- Page 22 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME 7.) Salt Lack Warning indicator In order to see whether softening salt in your machine is sufficient or not, check salt lack warning light on the display. When salt light warning light starts coming on, you need to fill in the salt chamber. Rinse aid Lack Warning indicator In order to check that there is sufficient rinse aid in your machine check rinse aid lack warning light on the display.
-
Page 23: Chapter -7: Switching On The Machine And Selecting Aprogramme Switching On The Machine
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine Machine is energized when the On/Off button is pressed , two dashes appear in the program display and the end of program indicator turns on. When you select a program with the program selection button,the program you select ( P1,P2,etc )appears on the program display and the end of program... -
Page 24: Changing A Programme With Resetting
CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Changing a programme with resetting If you would like to cancel a program while a washing program is resumed Open the door of your machine. The last selected program will appear on the screen. -
Page 25: Chapter-8: Maintenance And Cleaning
CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine regularly prolongs the machine’s service life. Oil and limescale may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature. -
Page 26: Chapter-9: Failure Codes And What To Do İn Case Of Failure
If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp helpdesk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released. -
Page 27: Chapter-10: Practical And Useful Information
CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •... - Page 28 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
- Page 29 Register your product here WWW.SHARPHOMEAPPLIANCES.COM, by registering with Sharp you become part of our For Life promise to always be there for you and your appliance. %100 recycleable paper 52247730 R36 EN-29...
