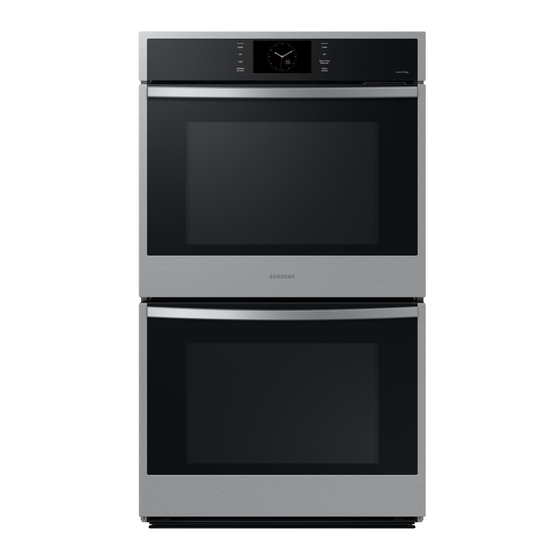

- Page 1 Built-In Electric Wall Oven User manual NV51**600D**...
- Page 2 Regulatory Notice 1. FCC NOTICE • Connect the equipment into an outlet on a circuit different from that to which the receiver This equipment has been tested and found to is connected. comply with the limits for a Class B digital device, •...
- Page 3 2. IC Notice IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation The term “IC” before the radio certification number exposure limits set forth for an uncontrolled only signifies that Industry Canada technical environment. This equipment should be installed specifications were met.
-
Page 4: Table Of Contents
Contents Important safety instructions Air Sous Vide Convection Vegetable What you need to know about safety instructions Using the special function feature California Proposition 65 Warning Using the smart control feature For your safety Bixby Electrical safety Amazon Alexa & Google Assistant Child safety Installation Guide Oven... -
Page 5: Important Safety Instructions
Make sure the machine is grounded to prevent electric when installing, maintaining, and operating your oven. shock. Important safety symbols and precautions Call a Samsung service center for help. What the icons and signs in this user manual mean: Note WARNING... -
Page 6: California Proposition 65 Warning
Important safety instructions CALIFORNIA PROPOSITION 65 WARNING Always disconnect the power to the appliance before servicing by removing the fuse or switching off the circuit WARNING breaker. Cancer and Reproductive Harm - www.P65Warnings.ca.gov. • Do not enter the oven. • Do not leave children alone. Never leave children alone or FOR YOUR SAFETY unattended in an area where this appliance is in use. - Page 7 • If there is a fire in the oven during self-cleaning, turn • Use only dry potholders. Placing moist or damp the oven off and wait for the fire to go out. Do not potholders on hot surfaces may result in burns from force the door open.
-
Page 8: Electrical Safety
• This appliance is not intended for use by young children individuals may cause injury or a serious malfunction. or infirm persons without the adequate supervision of a If your appliance is in need of repair, contact a Samsung responsible adult. authorized service center. Failure to follow these •... -
Page 9: Oven
OVEN • Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the • DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR oven. SURFACES OF THE OVEN. Heating elements may be hot •... -
Page 10: Self-Cleaning Ovens
Important safety instructions SELF-CLEANING OVENS • During use, the appliance becomes hot. Care should be taken to avoid touching heating Do not clean the door gasket. The door gasket is essential elements inside the oven. for a good seal. Care should be taken not to rub, damage, •... -
Page 11: Ventilating Hood
CRITICAL INSTALLATION WARNINGS • If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced WARNING by a qualified technician. • This appliance must be installed by a qualified • Excess spillage must be removed before you run the technician or service company. -
Page 12: Critical Usage Warning
• If the appliance is flooded by any liquid, please contact cord under any circumstances. your nearest Samsung service center. Failing to do so • Connect the oven to a circuit that provides the correct may result in electric shock or fire. - Page 13 • If any foreign substance such as water has entered the is dangerous voltage inside. If the oven needs to be appliance, contact your nearest Samsung service center. repaired, contact an authorized Samsung service center - Failing to do so may result in electric shock or fire.
- Page 14 • Do not heat food wrapped in paper from magazines, these holes, contact your product provider or nearest newspapers, etc. Samsung service center. - This may result in fire. • Do not tamper with or make any adjustments or repairs •...
-
Page 15: Usage Cautions
• Dishes and containers can become hot. Handle with - If the door is damaged, do not use the appliance. care. Contact a Samsung service center. • Hot foods and steam can cause burns. Carefully remove • Do not hold food in your bare hands during or container coverings, directing the steam away your immediately after cooking. - Page 16 Important safety instructions • Use caution when heating liquids such as water or other • Do not put your face or body close to the appliance while beverages. cooking or when opening the door just after cooking. - Make sure to stir during or after cooking. - Do not let children come too close to the appliance.
-
Page 17: Critical Cleaning Warnings
CRITICAL CLEANING WARNINGS • Do not store anything directly on top of the appliance when it is in operation. CAUTION • Do not use sealed containers. Remove seals and lids • Do not clean the appliance by spraying water directly before cooking. -
Page 18: Introducing Your New Oven
Temp probe (1)* Air Fry tray (1)* NOTE If you need an accessory marked with a *, you can purchase by calling the Samsung Contact Center (1-800-726-7864 or www.samsung.com/us/support). 01 Oven control panel 02 Oven door 03 Oven gasket 04 Halogen Lamp... -
Page 19: Before You Begin
Before you begin Water reservoir Clean the oven thoroughly before using it for the first time. Then, remove the accessories, set the oven to Bake, and then run the oven at 400 °F for 1 hour. The water reservoir is used for the Steam Bake, Steam Roast and Steam Proof There will be a distinctive odor. -
Page 20: Operating The Oven
Before you begin Operating the oven Control panel Replace the cap or the clear plastic top, and then slide the water reservoir back into the reservoir slot. Push the reservoir in. There will be soft click when it is in place correctly. Touch Open/Close Reservoir The oven retracts the water reservoir. -
Page 21: Display
Display Control lockout Control lockout lets you lock the buttons on the touchpad so they cannot be activated accidently. Control lockout also locks both oven doors so they cannot be Upper Upper 4:35 PM opened. You can only activate Control lockout when the oven is in standby mode. OVEN Convection Bake Convection Bake... -
Page 22: Kitchen Timer
Operating the oven Kitchen Timer Tap OK. Timer 01 Timer 01 4:35 PM The kitchen timer serves as an extra timer that will beep when the set time has The timer is displayed on the screen. elapsed. It does not start or stop cooking functions. You can use the kitchen timer with any of the other oven functions. -
Page 23: How To Change Timer Name
How to change timer name Timed cooking You can change the timer name to identify In timed cooking mode, the oven turns on immediately and cooks for the length of what you are timing, for example, a chicken defrosting time you select. At the end of the cooking time, the oven turns off automatically. -
Page 24: Delay Start
Operating the oven Delay start • The cooking time is displayed in the Upper Upper 4:35 PM In the delay timed cooking mode, the oven’s timer turns the oven on at a time you Cook Time area on the screen. OVEN Convection Bake Convection Bake... -
Page 25: Using The Temp Probe
Using the Temp probe How to use the Temp probe Push the tip of the Temp probe into the meat as fully as possible, so that the For many foods, especially roasts and poultry (beef, chicken, turkey, pork, lamb, tip is in the center of the meat. etc), measuring the internal temperature is the best way to determine if the food •... - Page 26 Operating the oven If you want to use the Cook time or Delay start, select the desired function. Temp probe table Tap Start. Type of Food Internal temperature When the desired internal temperature is reached, the function automatically Rare 140 °F stops and an alarm sounds.
-
Page 27: Oven Functions
Oven functions Cooking mode Tap the Upper or Lower oven on the screen to select the cooking mode. Set the temperature using the numeric pad or the wheel picker. See Setting the Premium Oven Oven Functions Temperature on page 33 and Basic Baking and Broiling Instructions starting on Bake, Broil, Convection Bake, page 33. - Page 28 Operating the oven Mode Instruction Mode Instruction • Bake is used to cook cakes, cookies, and casseroles. Always • Steam Bake provides excellent baking conditions for breads, preheat the oven first. pastries, and desserts by increasing moisture content and • Baking temperatures and times will vary depending on the Steam Bake improving texture and flavor.
- Page 29 Mode Instruction Mode Instruction • Air sous vide mode uses low-temperature hot air to • Convection Vegetable provides excellent cooking conditions implement Sous Vide mode without steam or the water tank. for vegetables such as potatoes, tomatoes, onions, carrots, bell •...
-
Page 30: Broiling Recommendation Guide
Operating the oven Broiling recommendation guide Mode Instruction The size, weight, thickness, starting temperature, and your doneness preference • For bread dough (yeast dough and sour dough), added steam will affect broiling times. This guide is based on meats at refrigerator temperature. shortens fermentation time and keeps the surface of the Always use a broiler pan and its grid when broiling. -
Page 31: Air Fry
Air Fry NOTE Preheating is not necessary. • NOTE • Place the Air Fry Tray on position 3. Air Fry tray Air Fry tray • It is recommended to use avocado oil. • Place a baking sheet or tray on the •... - Page 32 Operating the oven Item Amount Temperature Time Tips Item Amount Temperature Time Tips Frozen Vegetables 400 °F - Frozen Chicken Asparagus, 24 - 28 oz 15 - 25 min 15 - 20 oz 425 °F 20 - 25 min Nuggets 425 °F Breaded Dip sliced vegetables...
-
Page 33: Setting The Mode
Setting the mode Setting the temperature Swipe the screen Tap the temperature area to display the Upper Upper 4:35 PM OVEN Convection Bake Convection Bake numeric pad. View MODE Summary Faster, more even baking Faster, more even baking °F Swipe the screen to select mode you want. Tap the numbers on the numeric pad to Upper Upper... - Page 34 Operating the oven Steam Bake, Steam Roast Follow the steps below to use the Upper Upper 4:35 PM Upper Upper 4:35 PM OVEN Steam Bake Steam Bake View MODE Summary Convection Bake No Preheat, Steam Bake or Steam Roast If you selected Steam Bake or OVEN Convection Bake View...
- Page 35 CAUTION NOTE • Place food in the oven after preheating if the recipe calls for it. Preheating is very When Steam Cook is enabled and the water reservoir runs out of water, the display will important for good results when baking cakes, cookies, pastry, and breads. show "Please add more water".
-
Page 36: Air Sous Vide
Operating the oven Air Sous Vide Food Doneness Temperature(°F) Time(hrs.) • It is not necessary to preheat the oven when using Air Sous Vide mode. Poultry • Use it to cook meat, fish, seafood, poultry or vegetables. • Use fresh and quality ingredients only. Trim them in a clean condition and Chicken, breast Tender 145 °F... -
Page 37: Convection Vegetable
Convection Vegetable NOTE The cooking time depends on the thickness of food. Addition of salt or sugar • may shorten the cooking time. Convection Vegetable recommendation guide • Use Air Sous Vide recommendation guide to find the recommended cooking • Preheating is not necessary. -
Page 38: Using The Special Function Feature
For performance reasons, the convection fan may be turned on or off during the operation automatically. Proof • For more information, the Samsung website offers special menus and recipes to enjoy cooked vegetables on the guide table, you can download detailed Swipe the screen to the Special Upper... - Page 39 CAUTION Tap Start. Upper Upper 4:35 PM • Do not use Proof when the oven temperature is above 125 °F. If temperature OVEN Steam Proof Steam Proof MODE Refer to mode description Refer to mode description is above 125 °F, this mode won't function properly. Wait until the oven cools °F down.
-
Page 40: Using The Smart Control Feature
Operating the oven Using the smart control feature To start the oven remotely To use the oven’s Smart Control, you must download the SmartThings app to a Tap the Smart Control on the screen. mobile device. Functions that can be operated using the SmartThings app may not Smart Control Smart Control The oven can now be started and controlled... -
Page 41: Bixby
Bixby Using the oven racks • Bixby is the name of Samsung's artificial intelligence solution that makes it Upper and lower oven rack positions (single mode) possible to control the product by voice. • To use the voice recognition function, you need to connect the SmartThings app and the product on your smartphone. - Page 42 Operating the oven Rack and Pan placement Before using the racks Each rack has stops that need to be placed correctly on the supports. These stops Centering baking pans in the oven as much will keep the rack from coming completely out. as possible will produce better results.
-
Page 43: Using The Gliding Rack
Using the gliding rack Removing the Gliding rack The fully extendable Gliding rack makes food preparation easier, especially when With the Gliding rack in the Closed position you are preparing heavier dishes. The Gliding rack has 2 glide tracks that allow and the oven off and cool, grasp the rack you to extend the rack well out of the oven without touching the sides of the oven and frame and pull both forward to remove. -
Page 44: Using The Clean Feature
Operating the oven Using the clean feature Before a self cleaning cycle The Clean feature has four selections: Self-Clean, Steam-Clean, Descale, and We recommend venting your kitchen • Draining. with an open window or using a ventilation fan or hood during the self- Self Clean cleaning cycle. - Page 45 How to run a self-cleaning cycle If you don't want to use the Delay Start Upper Upper 4:35 PM feature, go to Step 8. Otherwise, tap Self clean Self clean OVEN MODE Swipe the screen to Clean. The display Oven cleaning Oven cleaning Upper Upper...
-
Page 46: Steam-Cleaning
Operating the oven Steam-Cleaning 10. If you need to stop or interrupt a self Upper Upper 4:35 PM cleaning cycle, tap Off. Self clean OVEN Self clean MODE Cleaning in progress... Cleaning in progress... How to set the oven for steam-cleaning End at 07:48 AM End at 07:48 AM For light cleaning, the steam-cleaning function saves time and energy, For heavier... - Page 47 CAUTION Pour approximately 10 oz. (300 ml) of Steam clean Steam clean 4:35 PM Wear gloves during cleaning. water onto the bottom of the empty Pour 10oz (300ml) of Pour 10oz (300ml) water in oven. of water in oven. oven and then close the oven door. Use After a steam-cleaning cycle normal water only, not distilled water.
- Page 48 Operating the oven How to run a descale cycle When rinsing is complete, use oven gloves to empty and clean the water Swipe the screen to Clean. The display Cleaning is complete. Cleaning is complete. Upper Upper 4:35 PM Wipe oven interior. reservoir.
-
Page 49: Settings
How to run a draining Settings In Settings, you can change the default settings to your preference or diagnose Swipe the screen to Clean. The display Upper Upper 4:35 PM problems with the network connection. Clean will show 4 cleaning selections. OVEN Clean MODE... - Page 50 Operating the oven Display Language Brightness Choose a display language. You can change the brightness of the display screen. Tap Settings > Language, and then tap in the right screen. • Tap Settings > Display > Brightness, and then use the bar next to Brightness You can select English, Spanish, or French.
- Page 51 You can reset your oven setting. authentication procedure. Tap Settings > Factory reset, and then tap Reset in the screen. SAMSUNG logo appears on the screen and the oven resets. • Tap Settings > Connections > Easy connection, and then tap Connect.
-
Page 52: Using The Sabbath Feature
Operating the oven Using the sabbath feature How to use the Sabbath feature (For use on the Jewish Sabbath & Holidays) Swipe the screen to Bake mode. Upper Upper 4:35 PM For further assistance, guidelines for proper usage, and a complete list Bake Bake Thermal heat baking... -
Page 53: Maintaining Your Appliance
Maintaining your appliance Care and cleaning of the oven CAUTION • You can change the oven temperature, but the display will not change and tones will not sound when a change occurs. (The oven temperature adjustment Cleaning painted parts and decorative trim feature should be used only on Jewish holidays.) After you change the •... - Page 54 If the rack becomes difficult to slide, the rack may need to be lubricated using a graphite lubricant. • To order graphite lubricant., call Samsung customer care at 1-800-SAMSUNG (726-7864) or visit our homepage (www.samsung.com/us/ Shake the graphite lubricant before support, www.samsung.com/ca/support, or www.samsung.com/ca_fr/support)
-
Page 55: Removing The Oven Doors
Removing the oven doors Repeat for the right (front and back) slide mechanism of the rack. CAUTION Open and close the rack several times • The door is very heavy. Be careful when removing and lifting the door. to distribute the lubricant. •... -
Page 56: Replacing The Oven Doors
Maintaining your appliance Replacing the oven doors Using two hands, grasp the edges of the oven door. Lift and pull the oven CAUTION door toward you and remove. You may The door is very heavy. You may need help lifting the door high enough to slide it need to gently shift the door from side into the hinge slots. -
Page 57: Changing The Oven Light
Changing the oven light Lower the oven door to the fully open position. If the oven door does not open The oven light is a standard 40-watt appliance halogen bulb. It comes on when the to a full 90 °, repeat steps 1 through 3. oven door is open. -
Page 58: Troubleshooting
While holding the glass cover with one hand, insert a flat-sharp tool such as a At Samsung we want to ensure that you don’t have problems with your new table knife between the glass and the electric oven. If you run into unexpected trouble, look first for a solution in the frame to remove the glass cover. - Page 59 OVEN Problem Possible cause Solution The oven The oven controls have not See the Operating the oven Problem Possible cause Solution smokes been set properly. section starting on page 20. The oven will The oven is not completely Make sure the electrical excessively The meat has been placed too Reposition the rack to provide...
- Page 60 Troubleshooting Problem Possible cause Solution Problem Possible cause Solution Food does not The serving size may not be Refer to the Broiling I can hear Water is being heated by the This is not a product broil properly. appropriate. recommendation guide for water boiling steam heater.
-
Page 61: Information Codes
To speed the process, set problem continues, contact a oily odor is and will disappear in time. a self-cleaning cycle for a local Samsung service center. coming from minimum of 3 hours. This code occurs if the door lock the vent. -
Page 62: Warranty (U.s.a)
If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. - Page 63 All replaced parts and products are the property of SAMSUNG and you must you. This warranty gives you specific rights, and you may also have other rights, which return them to SAMSUNG.
-
Page 64: Warranty (Canada)
Warranty (CANADA) PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN SAMSUNG will repair or replace this product, at our option and at no charge THE USE & CARE GUIDE as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. -
Page 65: Appendix
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN seq/0 leads to the open source license information as related to this product. IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR This offer is valid to anyone in receipt of this information. - Page 66 * Requires reader to be installed on your Scan this with your smartphone. smartphone Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS?
