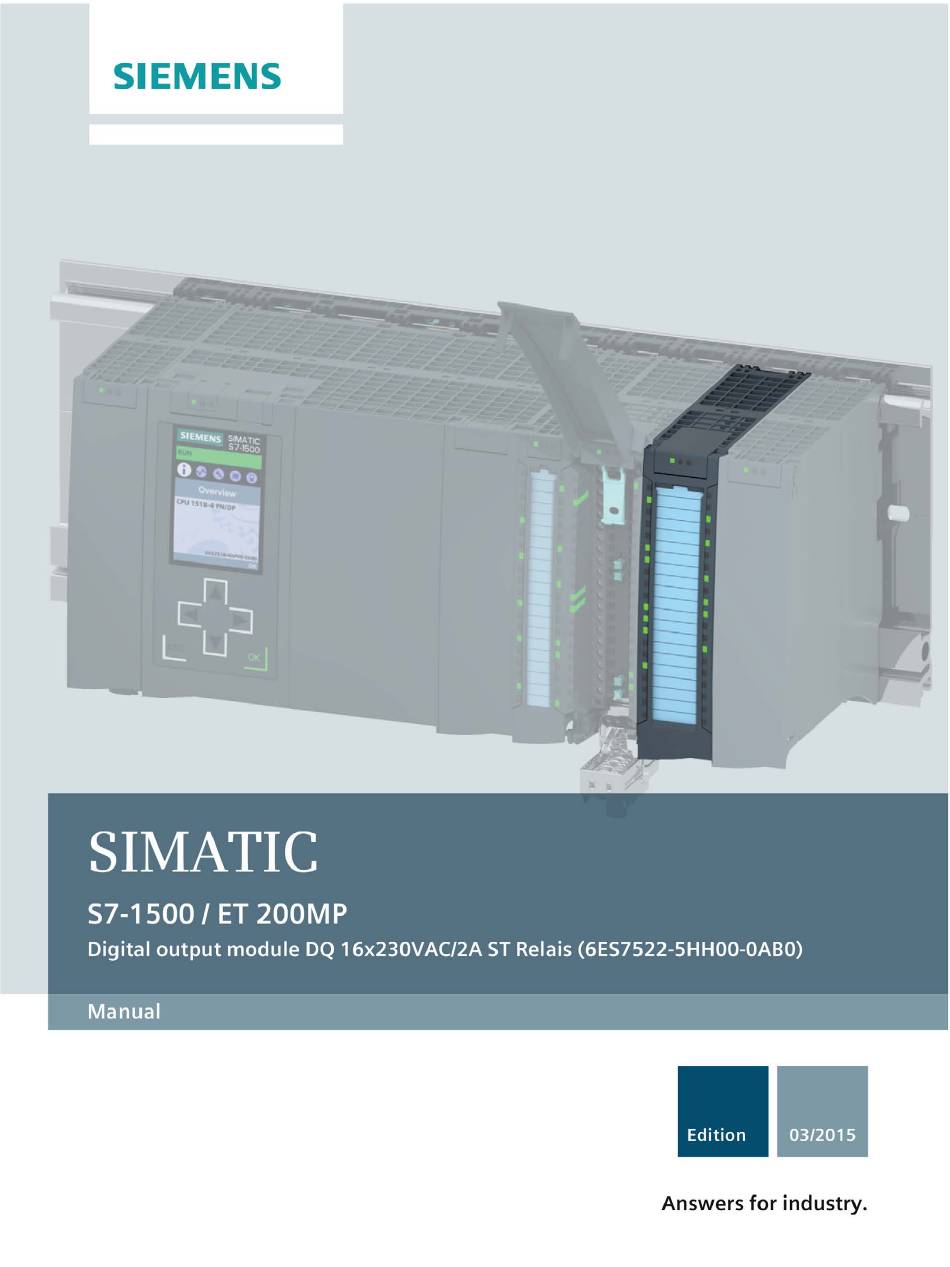

Siemens SIMATIC S7-1500 Manual

Digital output module dq 16x230vac/2a st relais (6es7522-5hh00-0ab0)
Hide thumbs Also See for SIMATIC S7-1500:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC S7-1500

Summary of Contents for Siemens SIMATIC S7-1500

  • Page 2 ___________________ Digital output module Preface DQ 16x230VAC/2A ST Relay ___________________ Documentation guide (6ES7522-5HH00-0AB0) ___________________ Product overview SIMATIC ___________________ Wiring S7-1500/ET 200MP Digital output module DQ ___________________ Parameters/address space 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) ___________________ Interrupts/diagnostics alarms ___________________ Manual Technical specifications ___________________ Dimensional drawing ___________________ Parameter data records...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Preface

    Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action (e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept.
  • Page 5 Siemens accepts no liability for the use of the open source software over and above the intended program sequence, or for any faults caused by modifications to the software.

  • Page 6: Table Of Contents

    Table of contents Preface ..............................4 Documentation guide ..........................7 Product overview ............................ 9 Properties ..........................9 Wiring ..............................11 Parameters/address space ........................14 Parameters ..........................14 Declaration of parameters ...................... 15 Address space ........................15 Interrupts/diagnostics alarms......................... 21 Status and error displays ....................... 21 Interrupts ..........................

  • Page 7: Documentation Guide

    This arrangement enables you to access the specific content you require. Basic information The System Manual and Getting Started describe in detail the configuration, installation, wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems. The STEP 7 online help supports you in the configuration and programming. Device information Product manuals contain a compact description of the module-specific information, such as properties, wiring diagrams, characteristics and technical specifications.
  • Page 8 Documentation guide Manual Collection S7-1500/ET 200MP The Manual Collection contains the complete documentation on the SIMATIC S7-1500 automation system and the ET 200MP distributed I/O system gathered together in one file. You can find the Manual Collection on the Internet (http://support.automation.siemens.com/WW/view/en/86140384).

  • Page 9: Product Overview

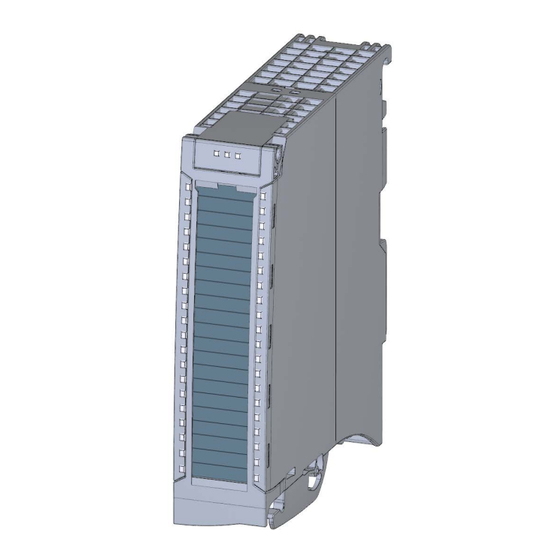

    Product overview Properties Article number 6ES7522-5HH00-0AB0 View of the module Figure 2-1 View of the DQ 16x230VAC/2A ST module Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 10 Other components The following component must be ordered separately: Front connectors, including potential jumpers and cable ties For more information on accessories, refer to the S7-1500/ET 200MP system manual (http://support.automation.siemens.com/WW/view/en/59191792). Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...

  • Page 11: Wiring

    You will find information on wiring the front connector, establishing a cable shield, etc in the S7-1500/ET 200MP system manual (http://support.automation.siemens.com/WW/view/en/59191792) in section Wiring. Block diagram and terminal assignment The example in the following figure shows the terminal assignment and the assignment of the channels.
  • Page 12 Wiring Note Note that the 24 V DC supply voltage for this module must always be supplied by terminals 19/20 and 39/40. Use the supplied potential jumpers for this purpose. ① Relay 16x Channel or channel status LED (green) ② Backplane bus interface Status display LED (green) Power supply 24 V DC for relay contacts ERROR...
  • Page 13 Wiring Tip: Using the potential jumpers Use the potential jumpers supplied with the front connector if you want to distribute the 24 V DC supply voltage to a neighboring module. This helps you to avoid having to terminate two wires to one terminal. Proceed as follows: 1.

  • Page 14: Parameters/Address Space

    Parameters/address space Parameters DQ 16x230VAC/2A ST parameters When you assign the module parameters in STEP 7, you use various parameters to specify the module properties. The table below lists the parameters that can be set. The effective range of the configurable parameters depends on the type of configuration. The following configurations are possible: ●...

  • Page 15: Declaration Of Parameters

    Parameters/address space 4.2 Declaration of parameters Declaration of parameters No supply voltage L+ Enabling of the diagnostics at no or insufficient supply voltage L+. Reaction to CPU STOP Determines the reaction of the output to the CPU going into STOP state or when the connection to the CPU is interrupted.
  • Page 16 Parameters/address space 4.3 Address space Value status (Quality Information, QI) The value status is always activated for the following modules: ● DQ 16x230VAC/2A ST QI ● DQ 16x230VAC/2A ST S QI ● DQ 16x230VAC/2A ST MSO An additional bit is assigned to each channel for the value status. The bit for the value status indicates if the output value specified by the user program is actually pending at the module terminal (0 = value is incorrect).
  • Page 17 Parameters/address space 4.3 Address space Address space for configuration as 2 x 8-channel DQ 16x230VAC/2A ST S QI For the configuration as a 2 x 8-channel module, the channels of the module are divided into two submodules. The submodules can be assigned to different IO controllers when the module is used in a shared device.
  • Page 18 Parameters/address space 4.3 Address space Address space for configuration as 1 x 16-channel DQ 16x230VAC/2A ST MSO For the configuration as a 1 x 16-channel module (module-internal Shared Output, MSO), channels 0 to 15 of the module are copied to multiple submodules. Channels 0 to 15 are then available with identical values in various submodules.
  • Page 19 Parameters/address space 4.3 Address space The figure below shows the assignment of the address space for submodules 1 and 2 and the value status. Figure 4-3 Address space for configuration as 1 x 16-channel DQ 16x230VAC/2A ST MSO with value status Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 20 Reference You will find information on the module-internal shared input/shared output (MSI/MSO) function in the function manual PROFINET with STEP 7 V13 (http://support.automation.siemens.com/WW/view/en/49948856) in the section Module- internal shared input/shared output (MSI/MSO). Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0)

  • Page 21: Interrupts/Diagnostics Alarms

    Interrupts/diagnostics alarms Status and error displays LED displays The figure below shows the LED displays (status and error displays) of the DQ 16x230VAC/2A ST. Figure 5-1 LED displays of the module DQ 16x230VAC/2A ST Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 22 Interrupts/diagnostics alarms 5.1 Status and error displays Meaning of the LED displays The following tables explain the meaning of the status and error displays. Corrective measures for diagnostics alarms can be found in the section Diagnostics alarms (Page 23). RUN and ERROR LED Table 5- 1 RUN and ERROR status and error displays Meaning...

  • Page 23: Interrupts

    Interrupts/diagnostics alarms 5.2 Interrupts Interrupts Digital output module DQ 16x230VAC/2A ST supports diagnostics interrupts. Diagnostics interrupt The module generates a diagnostic interrupt at the following event: ● No supply voltage L+ ● Parameter assignment error For more information on the error event, refer to the error OB with the "RALRM" instruction (read additional interrupt info) and to the STEP 7 online help.

  • Page 24: Technical Specifications

    Technical specifications Technical specifications of the DQ 16x230VAC/2A ST 6ES7522-5HH00-0AB0 Product type designation DQ 16x230VAC/2A ST (relay) General information Hardware version Firmware version V1.0.0 Product function I&M data Yes; I&M0 to I&M3 Engineering with STEP 7 TIA Portal can be configured/integrated V13 SP1 / - as of version STEP 7 can be configured/integrated as of version V5.5 SP3 / -...
  • Page 25 Technical specifications 6ES7522-5HH00-0AB0 Output current For signal "1" rated value For signal "1" permitted range, min. 10 mA; 10 V For signal "1" permitted range, max. 2 A; thermal continuous current For signal "0" residual current, max. Parallel switching of 2 outputs For logic operations For increased performance For redundant control of a load...
  • Page 26 Technical specifications 6ES7522-5HH00-0AB0 Diagnostics alarms Diagnostics Monitoring of supply voltage Wire break Short-circuit Diagnostics indicator LED RUN LED Yes; green LED ERROR LED Yes; red LED Monitoring of supply voltage (PWR LED) Yes; green LED Channel status display Yes; green LED For channel diagnostics For module diagnostics Yes;...
  • Page 27 Technical specifications Details on the number of switching cycles The following tables list the permissible number of switching cycles depending on the applied voltage and current load. Different values apply in each case to resistive and inductive loads. Table 6- 1 Switching capacity and service life of relay contacts for resistive load For resistive load Voltage...
  • Page 28 Technical specifications Power reduction (derating) of outputs according to number of channels The following graphs show the loading capacity of the relay contacts in relation to the mounting position and the ambient temperature. The total current of the outputs remains unaffected.

  • Page 29: Dimensional Drawing

    Dimensional drawing The dimension drawing of the module on the mounting rail, as well as a dimension drawing with open front cover, are provided in the appendix. Always observe the specified dimensions for installation in cabinets, control rooms, etc. Figure A-1 Dimension drawing of the DQ 16x230VAC/2A ST module Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 30 Dimensional drawing Figure A-2 Dimension drawing of the DQ 16x230VAC/2A ST module, side view with open front cover Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...

  • Page 31: Parameter Data Records

    Parameter data records Parameter assignment and structure of the parameter data records The data records of the module have an identical structure, regardless of whether you configure the module with PROFIBUS DP or PROFINET IO. Dependencies for configuration with GSD file When a GSD file is used to configure a module, dependencies can arise when "assigning the parameters".
  • Page 32 Parameter data records B.1 Parameter assignment and structure of the parameter data records Assignment of data record and channel For the configuration as a 1 x 16-channel module, the parameters are located in data records 64 to 79 and are assigned as follows: ●...
  • Page 33 Parameter data records B.1 Parameter assignment and structure of the parameter data records Data record structure The example in the figure below shows the structure of data record 64 for channel 0. The structure of channels 1 to 16 is identical. The values in byte 0 and byte 1 are fixed and may not be changed.

  • Page 34: Open Source Software

    License Conditions and Disclaimers for Open Source Software and other Licensed Software In the product "Digital Modules, Analog Modules, Technological Modules, Communication Modules and Power Supply Modules of the SIMATIC S7-1500, ET 200MP", Copyright Siemens AG, 2013 - 2014 (hereinafter "Product"), the following Open Source Software is used either unchanged or in a form that we have modified, and additionally the other License Software noted below.
  • Page 35 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 36 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 37 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 38 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 39 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 40 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 41 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 42 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 43 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 44 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
  • Page 45 Open Source Software C.1 Open Source Software Digital output module DQ 16x230VAC/2A ST Relay (6ES7522-5HH00-0AB0) Manual, 03/2015, A5E34934019-AA...
