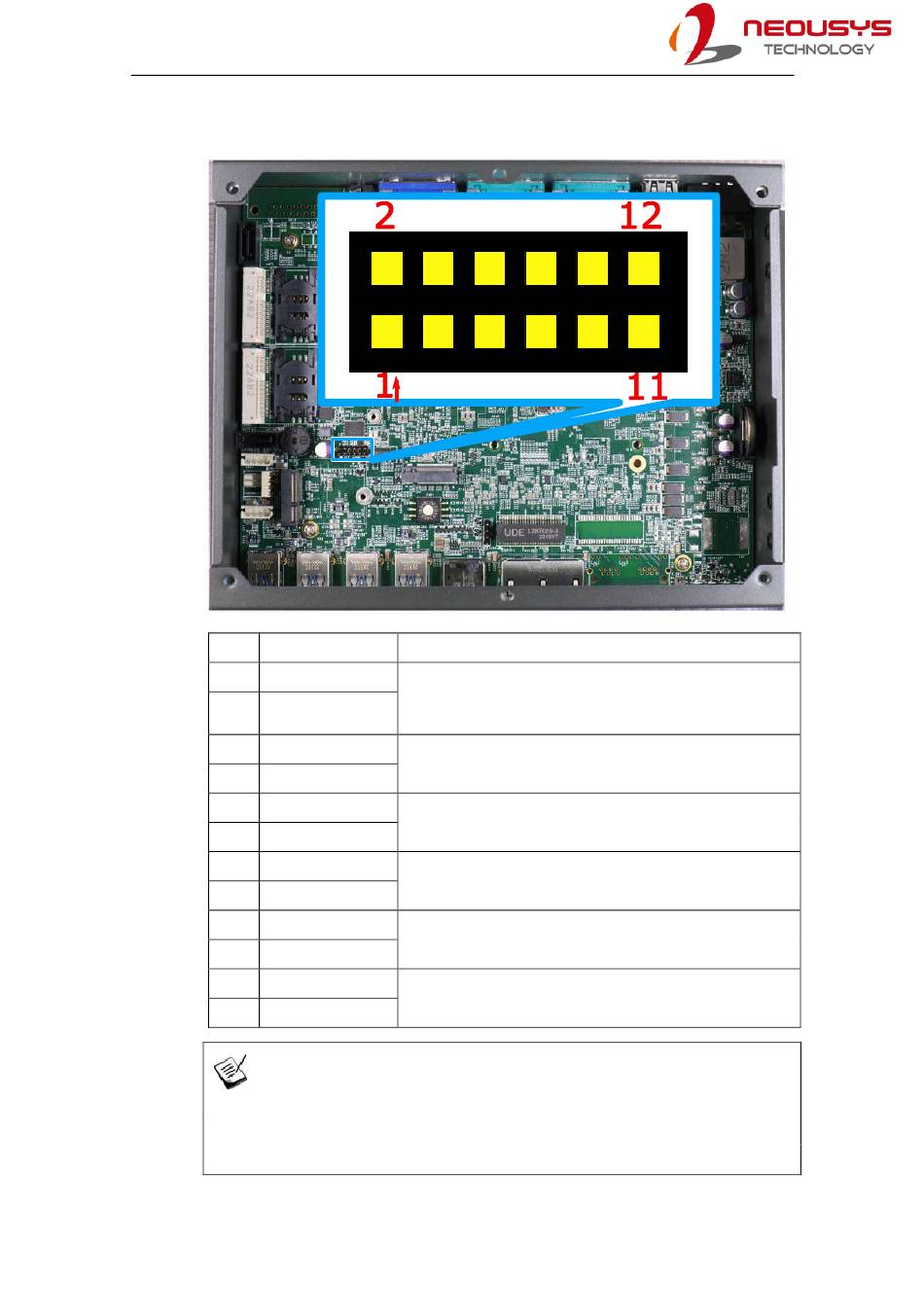

2.4.6 Status LED Output & Remote On/ Off Control
Pin# Definition
1 WDT_LED-
2 WDT_LED+
3 Standby Power-
4 Standby Power+
5 HDD-
6 HDD+
7 Power-
8 Power+
9 Ctrl-
10 Ctrl+
11 IGN_LED-
12 IGN_LED+
NOTE
Please make sure the polarity is correct when you connect the external LED
indicator to the Status LED Output.
Nuvo-9501 Series
Description
[Output] Watchdog timer indicator, flashing when
Watchdog timer is active
[Output] Standby power indicator, on if DC power is
applied and system is in S5 (standby) mode.
[Output] Hard drive indicator, flashing when SATA hard
drive is active.
[Output] System power indicator, on if system is turned
on, off if system is turned off.
[Input] Remote on/off control, connects to an external
switch to turn on/off the system (polarity is negligible).
[Output] Ignition control indicator, on if ignition control is
on, off if ignition control is off.
43
