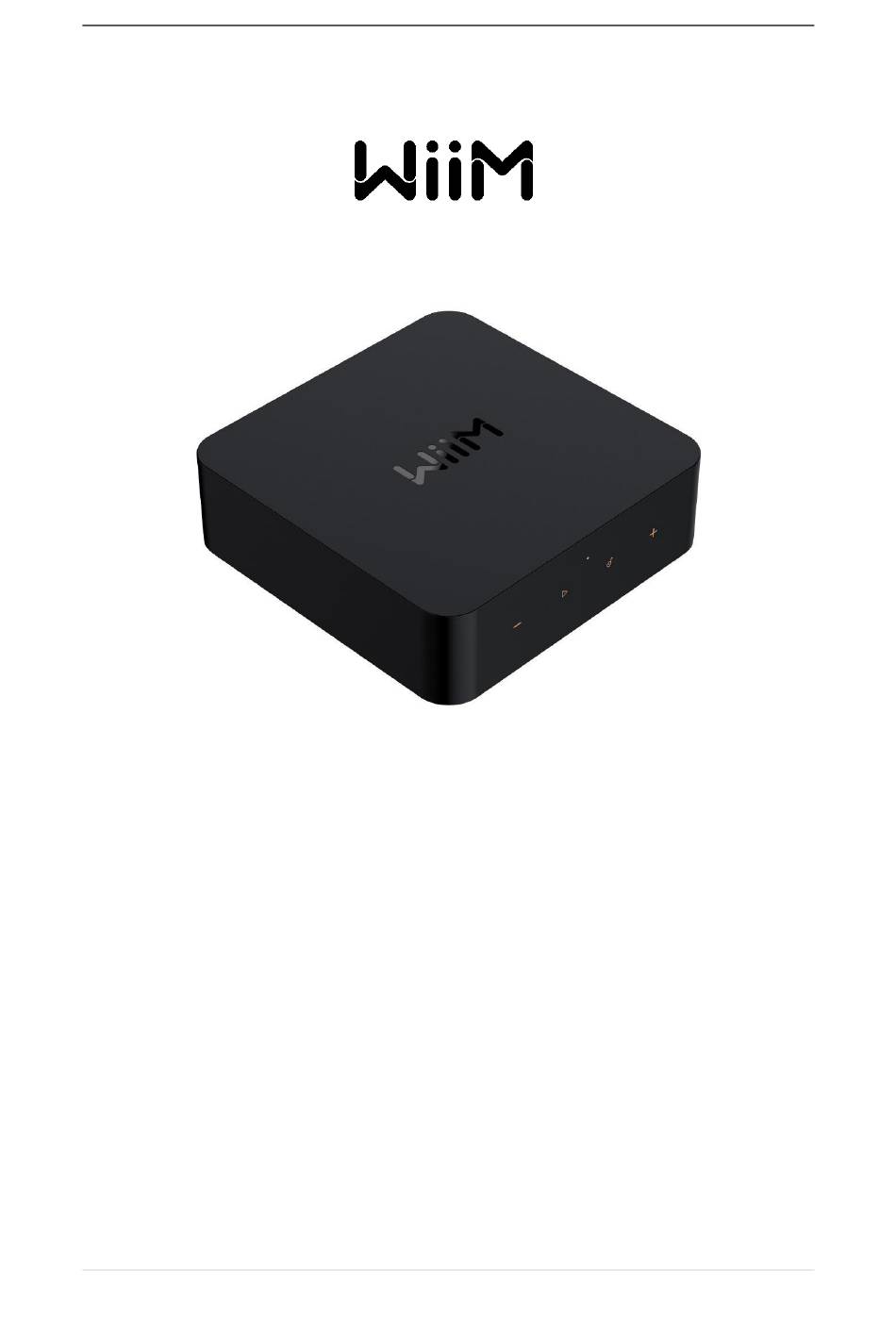

- Page 1 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 WiiM Pro Plus Hi-Res Music Streamer Model: WiiM Pro Plus P a g e...
-
Page 2: Table Of Contents
CONTROLS AND LIGHTS ........................11 BUTTONS AND INPUT/OUT INTERFACE .................. 12 HOW TO SET UP ............................. 14 CONNECT AUDIO INPUT to IN PORT ON WIIM PRO PLUS ..........14 CONNECT WIIM PRO PLUS’S AUDIO OUT PORT ..............17 SUMMARY OF DEVICE CONNECTIONS ..................17 POWER THE WIIM PRO PLUS ....................... - Page 3 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 DLNA ..............................28 ALL MUSIC IN ONE APP ........................29 MULTIROOM AND STEREO PAIRING ....................30 LINKPLAY MULTIROOM/STEREO PAIRING ................30 AMAZON ALEXA MULTIROOM ....................30 MULTIROOM WITH CHROMECAST AUDIO DEVICES ............31 10.
-
Page 4: Introduction
MP3 players, or TVs. Simply plug the WiiM Pro Plus into your stereo receiver, DAC, or amplifier, and control it using the user-friendly WiiM Home App, popular platforms like Spotify, TIDAL, Amazon Music, or any Chromecast-enabled apps. - Page 5 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 The WiiM Pro Plus is designed to enhance your existing audio setup by adding wireless streaming capabilities and smart features. Here are a few common use cases for the WiiM Pro Plus:...
-
Page 6: Other Devices Needed To Use Wiim Pro Plus
These are the core components required to use the WiiM Pro Plus. It's important to have an audio system that you want to integrate with the Pro Plus, a stable Wi-Fi network, and a compatible device with the WiiM Home app for setup and control. - Page 7 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 P a g e...
-
Page 8: What's In Box
WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 2. WHAT’S IN BOX P a g e... -
Page 9: Technical Specifications
WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 3. TECHNICAL SPECIFICATIONS Feature Description USB Type-C, requires 5V, 1.5A or higher Power Input Bundled adapter: 5V, 2A Digital Audio Output: Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output. - Page 10 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, Streaming Services in App iHeartRadio, vTuner, Napster, Sound machine, etc. Three-color status LED - Red, Green, and White Capacitive touch buttons – Play/Pause,...
-
Page 11: Controls And Lights
WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 4. CONTROLS AND LIGHTS 11 | P a g e... -
Page 12: Buttons And Input/Out Interface
WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 BUTTONS AND INPUT/OUT INTERFACE Buttons / IO Interface Functions Power USB Type-C power plug, 5V, 2A Play/Pause Play/Pause, network pairing, and restore to the factory setting Preset Start to play the preset content (short press) or... - Page 13 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 State Color Flashing/Solid Boot-up White Flashing (fast) OOBE/Ready to Setup White Flashing (slow) BT ready to pair Green Flashing (slow) Connecting to Wi-Fi White, Green Flashing (fast) Connected to network White Solid...
-
Page 14: How To Set Up
Scenario 1: Analog Audio Source Input (CD Player, Vinyl Player, or Computer) Connect your source device to the WiiM Pro Plus’s LINE IN port using a line-in cable. One of two types’ cable as the follows might be used, i.e., RCA to RCA or Aux to RCA. - Page 15 Steps to set up the WiiM Pro Plus with the line-in input: (Perform step 3/4/5 after WiiM Home App is installed) 1. Insert the line-in cable into the LINE IN port located at the back of the WiiM Pro Plus.
- Page 16 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 Steps to set up the WiiM Pro Plus with the SPDIF IN are the same as Line-in, replacing Line-in with SPDIF IN. Notes: • You can also enable “Autosense” on the WiiM Pro Plus to automatically play your Line-In or Optical-In source when WiiM Pro Plus detects a signal.
-
Page 17: Connect Wiim Pro Plus's Audio Out Port
1. Depending on your preferred audio equipment, select the appropriate connection method: RCA cable, optical cable (TOSLINK), or COAX. a. For RCA cable, plug it into the LINE OUT port on the back of the WiiM Pro Plus. b. For optical cable (TOSLINK), plug it into the SPDIF OUT port. - Page 18 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 ① If connecting to an audio/video receiver (AVR), DAC, or amplifier, utilize the Line Out, Optical Out, or Coaxial Out port. ② When connecting directly to powered speakers or a soundbar, opt for the Line Out, Optical Out, or Coaxial Out port.
-
Page 19: Power The Wiim Pro Plus
CONNECT TO YOUR NETWORK WITH THE WIIM HOME APP You can use Ethernet or Wi-Fi to connect WiiM Pro Plus to your network. Before the setup, please download the WiiM Home App. If you want to use the Wi-Fi to connect to WiiM Pro Plus, please have your network password ready. - Page 20 8/19/23 Wi-Fi OR ETHERNET SETUP ● Power on speaker, audio/video receiver (AVR), amplifier, or DAC. ● Power on WiiM Pro Plus streamer and wait 30 seconds until it fully ● boots up. Open the WiiM Home App. ● Click on the device you want to configure.
-
Page 21: Fill Your Home With Sound
AirPlay compatible speakers such as HomePod, Sonos etc. USE 12 V TRIGGER OUT The WiiM Pro Plus raises the voltage on the 12v trigger rail as soon as the music playback starts. It lowers the trigger’s voltage two and a half minutes after playback stops. The responsiveness of the connected amplifier to this voltage change varies based on the manufacturer and their individual timeout settings. -
Page 22: Audio Output Via Airplay Cast
8/19/23 4) Start playing music. AUDIO OUTPUT VIA AIRPLAY CAST You can use the WiiM Pro Plus as an AirPlay source, seamlessly connecting with AirPlay-enabled speakers like the HomePod. Here’s how to set up AirPlay Cast step by step: 1) Launch WiiM Home App: Open the App and tap the 'Device' tab. -
Page 23: Voice Control
Setup your Amazon account for your WiiM device ● If your WiiM device is not logged into your Amazon account in the WiiM Home App, Open WiiM Home App, click “Browse -> Amazon Alexa -> Sign in to ●... -
Page 24: Works With Google Voice Assistant
Chromecast audio device under “Local devices.” Tap the name of the WiiM Pro Plus and enter the device control UI. ● Tap the “Add to a room” button under the volume circle to add WiiM Pro Plus to ● one room. -
Page 25: Direct Control Via Your Favorite App
VERSION 1.8 8/19/23 7. DIRECT CONTROL VIA YOUR FAVORITE APP You can stream from your favorite apps directly to your WiiM Pro Plus with the following approaches. Depending on your mobile devices and music service, there may be multiple ways to stream from your music app to WiiM devices. -
Page 26: Tidal Connect
NOTES: • To use AirPlay 2, you need an Apple device running iOS 11.4 or later. • Your Apple device and WiiM device must be connected to the same Wi-Fi network. • For more information about AirPlay 2, visit: https://www.apple.com/airplay You can either start the AirPlay 2 streaming from the music App or the iOS control center. -
Page 27: Amazon Music Cast (Alexa Cast)
Your App becomes a remote control for the device. WiiM Pro Plus is one of the first devices that support Alexa Cast with bit-perfect output up to 192 kHz/24-bit. Thus, you can listen to your Amazon Music Ultra HD directly from the native Amazon Music to WiiM Pro Plus in the highest possible quality. -
Page 28: Dlna
Then, open a compatible app on your smartphone or tablet and tap the Cast button. This will allow you to select your WiiM Pro Plus and start streaming audio to Most music apps on both iOS and Android already support Chromecast such as Spotify, Apple Music, TIDAL, Amazon Music, YouTube Music and Deezer. -
Page 29: All Music In One App
Bluetooth streaming. The App has twelve music presets that allow you to save your favorite station, playlist, album, etc., and access them later with the preset button on the Pro Plus, remote, or the App with one tap. -
Page 30: Multiroom And Stereo Pairing
8/19/23 9. MULTIROOM AND STEREO PAIRING With the WiiM Pro Plus, it’s easy to build your wireless multiroom sound system with other AirPlay 2 speakers, Amazon Echo (or Alexa built-in devices) or Google Home. You can create an even more flexible multiroom sound system with multiple WiiM Pro Plus, Pros Minis, and your existing audio devices. -
Page 31: Multiroom With Chromecast Audio Devices
TIP: Download Amazon Alexa App and get ready with Echo or other Amazon devices. For detailed steps please refer to 6.1. Since the WiiM Pro Plus is an Alexa Cast audio receiver, not a transmitter, it can’t transmit the Line-in or Optical-in audio to other Alexa-enabled devices such as Echo. -
Page 32: Audio Input Via Line In Or Spdif In
8/19/23 AUDIO INPUT VIA LINE IN OR SPDIF IN Unlock the full potential of the WiiM Pro Plus by employing it as a preamplifier and network audio transmitter via Wi-Fi or Ethernet. You can seamlessly stream analog or digital audio input from devices like CD players, vinyl players, TVs, or computers to other WiiM connected devices, or AirPlay compatible speakers such as HomePod or Sonos. -
Page 33: Audio Output Via Line/Spdif/Coax/Bt Out
Thus, you have two ways to control the volume of your system. Control volume from your AVR or amplifier (Fixed volume output) Control the volume from the WiiM Home App. To do so, you need to turn off the fixed volume output. -
Page 34: Stream Audio With Bluetooth
With Bluetooth wireless technology, you can stream tunes from various devices like smartphones, tablets, TVs, and laptops. To start streaming, first pair your device with the WiiM Pro Plus. Initiate pairing mode by holding down the volume '+' and '-' buttons simultaneously for 2 seconds. -
Page 35: Advanced Features
Wi-Fi to use the Ethernet network. To confirm which connection is active, open the WiiM Home App, go to the 'Browse' tab, and scroll down to the 'Select Audio Source' section at the bottom. If Ethernet is being used, it will display 'Ethernet' instead of 'Wi- Fi.'... -
Page 36: Faq
● What can I do if my device has no sound? If you are not getting any sound from your WiiM Pro Plus, make sure you have checked the following things: The volume level on both the WiiM Home app and your receiver or device that you have connected to WiiM Pro. - Page 37 Press and hold the play/pause for 10s until you will hear the voice prompts of “Restore to factory setting” and see the light flashing red and white. Factory reset clears all source, volume, and network settings for WiiM Pro Plus and returns it back to the original factory settings.
-
Page 38: Important Safety Instructions
WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. -
Page 39: Ce/Fcc Statements
WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 CE/FCC Statements RF Exposure Information: To maintain compliance with FCC RF exposure requirements, use the product that maintains a 20cm separation distance between the user's body and the host. MPE limit for RF exposure at prediction frequency and satisfy RF exposure compliance. - Page 40 WIIM PRO PLUS USER MANUAL VERSION 1.8 8/19/23 This product can be used across EU member states. EU Regulatory Conformance Hereby, Linkplay Technology Inc. Corporation declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
