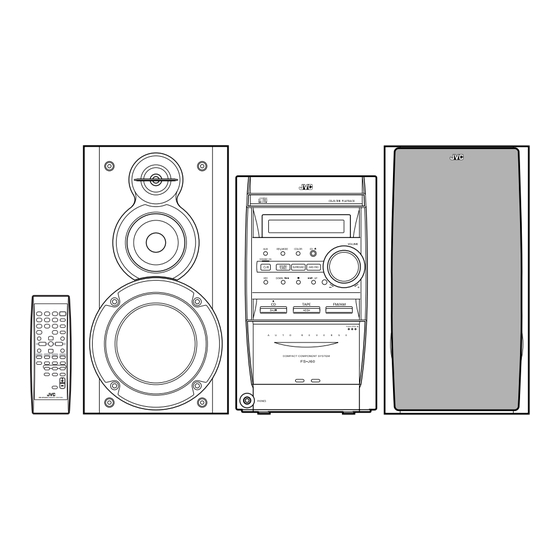

COMPACT COMPONENT SYSTEM
SYSTEME DE COMPOSANTS COMPACT
FS-J60
FS-J50
RM-SFSJ60U REMOTE CONTROL
SP-UXJ60
— Consists of CA-FSJ60 and SP-UXJ60
— Consists of CA-FSJ50 and SP-UXJ50
CA-FSJ60
SP-UXJ60
RM- SFSJ50U REMOTE CONTROL
INSTRUCTIONS
MANUEL D'INSTRUCTIONS
SP-UXJ50
CA-FSJ50
For Customer Use:
Enter below the Model No. and Serial No.
which are located either on the rear, bot-
tom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
SP-UXJ50
GVT0102-002A
[C]
Advertisement
Table of Contents
Related Manuals for JVC FS-J60
Summary of Contents for JVC FS-J60
- Page 1 COMPACT COMPONENT SYSTEM SYSTEME DE COMPOSANTS COMPACT FS-J60 — Consists of CA-FSJ60 and SP-UXJ60 FS-J50 — Consists of CA-FSJ50 and SP-UXJ50 RM-SFSJ60U REMOTE CONTROL SP-UXJ60 CA-FSJ60 SP-UXJ60 RM- SFSJ50U REMOTE CONTROL SP-UXJ50 CA-FSJ50 SP-UXJ50 INSTRUCTIONS For Customer Use: Enter below the Model No. and Serial No.
- Page 2 Warnings, Cautions and Others Mises en garde, précautions et indications diverses CAUTION—STANDBY/ON button! CAUTION Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off). The STANDBY/ON button in RISK OF ELECTRIC SHOCK DO NOT OPEN any position does not disconnect the mains line.
- Page 3 Note to CATV system installer: For Canada/pour le Canada This reminder is provided to call the CATV system installer’s CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE attention to Section 820-40 of the NEC which provides guide- BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. lines for proper grounding and, in particular, specifies that the ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, cable ground shall be connected to the grounding system of the...
- Page 4 Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual for future reference.
-
Page 5: Table Of Contents
Adjusting the Volume ................. 10 Enjoying Sound Effects ..............10 Selecting the Illumination Brightness ..........11 Selecting the Display Color (ONLY FOR FS-J60) ......11 Listening to FM and AM Broadcasts ........12 Tuning in to a Station ................. 12 Presetting Stations ................ -
Page 6: Location Of The Buttons And Control
Location of the Buttons and Control Become familiar with the buttons and control on your unit. Front Panel Front Panel FOR FS-J50: FOR FS-J50: COMPACT COMPONENT SYSTEM F S - J 6 0... - Page 7 (timer), DAILY, REC (recording timer), and SLEEP 3 REV.MODE (reverse mode) button (17 – 19) 2 REC (recording) indicator 4 AUX button (9) 3 ONLY FOR FS-J60: Pressing this button also turns on the unit. SURROUND indicator 4 ONLY FOR FS-J60:...
-
Page 8: Remote Control
TREBLE button (10) TAPE FM/AM e CANCEL button (16) REV. r FM MODE button (12) MODE FM MODE COLOR t ONLY FOR FS-J60: PRGM RANDOM REPEAT COLOR button (11) y Disc play mode buttons (15, 16) SOUND TURBO SURROUND •... -
Page 9: Getting Started
• FM antenna (1) • Remote control (1) • Batteries (2) • Speaker cords (ONLY FOR FS-J60) (4) If anything is missing, consult your dealer immediately. Putting the Batteries into the Remote Control Attach the FM antenna to the FM 75 Ω... -
Page 10: Connecting Speakers
AM antenna Connecting Speakers FOR FS-J60: Vinyl-covered wire (not supplied) Grey RIGHT RIGHT LEFT LEFT Speaker AM loop antenna cord Speaker MAIN SPEAKERS SUBWOOFERS (supplied) cord CAUTION: SPEAKER IMPEDANCE 6 -16 Black If the cords are covered with insulation, Blue... -
Page 11: Connecting Other Equipment
Connecting Other Equipment If the cords are covered with insulation, remove a short section of insulation at the To connect an audio equipment end of each cord by twisting and pulling it You can connect audio equipment—used only as a playback off. -
Page 12: Common Operations
(the hour digits start flashing setting is canceled before you finish, start over from step 1 . on the display). • For FS-J60 only, you can also use CLOCK/TIMER on the First time you press CLOCK/TIMER, the unit enters the unit for this operation. -
Page 13: Adjusting The Volume
You can adjust the volume level only while the unit is turned low volume—Active Hyper Bass Pro. on. The volume level can be adjusted between “VOL MIN” For FS-J60: and “VOLUME 1” – “VOLUME 40 (VOL MAX).” Press AHB PRO. -
Page 14: Selecting The Illumination Brightness
Selecting the Display Color (ONLY FOR FS-J60) To enjoy the heavy sound (ONLY FOR FS-J60) You can enjoy the heavy sound. The function boosts low and You can select the display color (COLOR 1 – COLOR 5 and high frequency sounds—Sound Turbo. -
Page 15: Listening To Fm And Am Broadcasts
Listening to FM and AM Broadcasts Continued Tuning in to a Station Presetting Stations You can preset 30 FM and 15 AM stations. Press FM/AM to select the band. FM/AM In some cases, test frequencies have been already memorized for the tuner since the factory examined the tuner preset The unit automatically turns on and tunes in function before shipment. -
Page 16: Tuning In To A Preset Station
Tuning in to a Preset Station On the remote control ONLY: Press FM/AM to select the band. FM/AM The unit automatically turns on and tunes in to the previously received station—either FM or AM. • Each time you press the button, the band alternates between FM and AM. -
Page 17: Playing Back Discs
Playing Back Discs Continued Playing Back the Entire Disc—Normal Play This unit has been designed to play back the following discs —CD, CD-R, and CD-RW. When playing a CD-R or CD-RW Press CD 0. User-edited CD-Rs (CD-Recordable) and CD-RWs The unit automatically turns on and the disc (CD-ReWritable) can be played only if they are already tray comes out. -
Page 18: Basic Disc Operations
Basic Disc Operations PRGM Press PRGM (program). The PRGM (program) indicator lights up on While playing a disc, you can do the following operations. the display. To stop playing for a moment PRGM During play, press CD 3/8. While pausing, the elapsed playing time flashes on •... -
Page 19: Playing At Random-Random Play
To modify the program Repeating Tracks—Repeat Play On the remote control ONLY: You can have all the tracks, the program or individual track Before or after playing, you can erase the last CANCEL currently playing, repeat as many times as you like. programed track by pressing CANCEL. -
Page 20: Playing Back Tapes
Playing Back Tapes You can play back type I tapes. To stop playing, press 7. Playing Back a Tape To fast-wind to the left or to the right, press ¢ or 4 while the Press PUSH OPEN 0 on the unit. tape is not running. -
Page 21: Recording
Recording Continued IMPORTANT: Recording on a Tape • It may be unlawful to record or play back copyrighted On the unit ONLY: material without the consent of the copyright owner. • The recording level is automatically set correctly, so it is Put a recordable cassette in with the not affected by the other sound settings. -
Page 22: Disc Direct Recording
Disc Direct Recording One Track Recording Everything on the disc goes onto the tape in the order it is on This recording method is convenient when you record tracks the disc, or according to the order you have set in Program while playing the disc. -
Page 23: Using The Timers
1 . TUNER TUNER DAILY • For FS-J60 only, you can also use CLOCK/TIMER on the unit for this operation. DAILY TAPE DAILY Press CLOCK/TIMER. -
Page 24: Using Sleep Timer
Using Sleep Timer Press UP or DOWN to set the volume level, then press CLOCK/TIMER. With the Sleep Timer, you can fall asleep to music. You can • You can select the volume level (“VOLUME – –” and set the Sleep Timer when the unit is turned on. “VOLUME 0”... -
Page 25: Maintenance
Maintenance To get the best performance from the unit, keep your discs, tapes, and mechanism clean. Cleaning the unit Handling cassette tapes • If the tape is loose in its cassette, take up • Stains on the unit Should be wiped off with a soft cloth. If the unit is heavily the slack by inserting a pencil in one of the stained, wipe it with a cloth soaked in water-diluted neutral reels and rotating. -
Page 26: Troubleshooting
Troubleshooting If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service. -
Page 27: Specifications
Specifications Design and specifications are subject to change without notice. FS-J60 (CA-FSJ60 and SP-UXJ60) FS-J50 (CA-FSJ50 and SP-UXJ50) Amplifier Amplifier Output Power: Output Power: SUBWOOFERS: 68 W per channel, min. RMS, driven into 6 Ω at 1 kHz 60 W per channel, min. RMS, driven into 6 Ω at 1 with no more than 10% total harmonic distortion. - Page 28 VICTOR COMPANY OF JAPAN, LIMITED 0203MWMMDWJEM EN, FR © 2003 VICTOR COMPANY OF JAPAN, LIMITED...
