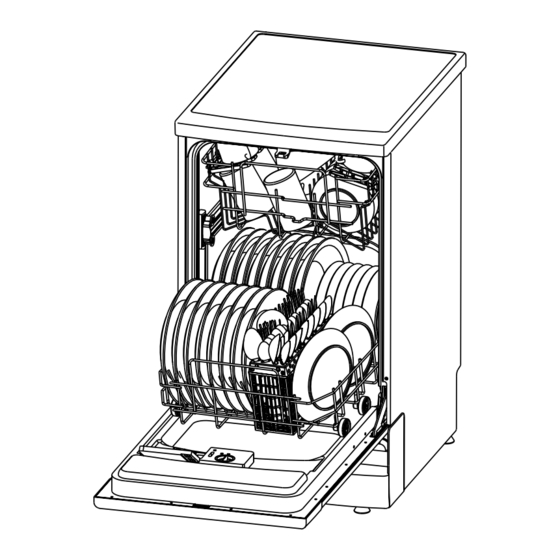

Summary of Contents for Amica ZWM 416 W
-
Page 2: Table Of Contents
Dear Costumer, Control Panel...........3 Dishwasher Features........3 Please read this User Information carefully and keep it to refer to at a later date. Pass it on to any subsequent owner of the appliance. A、 Water Softener..........4 B、Loading the salt into the softener....5 C、Fill the Rinse Aid Dispenser......5 RINSE AID DISPENSER........6 This manual contains sections of Safety Instructions,... -
Page 5: A、 Water Softener
To get the best performance from your dishwasher,read all operating instructions before using it for the first time. 1 Power Button: To turn on/off the power supply. 6 Rinse Aid Warning Light : To be on when the dispenser needs to be refilled. 2 Power Light : To be on when the Power Button is 7 Salt Light: To be on when the softener needs Pressed down. -
Page 6: D、Function Of Detergent
Before usi ng your dishwasher for the first time: A. Set the water softener B. Pour 1／2 litre of water inside the salt container and then fill with dishwasher salt C. Fill the rinse aid dispenser D. Function of detergent The water softener must be set manually, using the water hardness dial . - Page 7 Always use salt intended for use with dishwasher. The sal t container is locat ed beneath the lower rack and should be filled as foll ows: Atte ntion! Only use salt specifically designed for use in dishwa shers! All other t ypes of salt not spe ci fically designed for use in a dishwasher, e specially table salt, will damage the water softener.
- Page 8 If there is no rinse-aid w arning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases.
- Page 9 Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose. Concentrated Detergent Based on their chemical composition, dishwasher can be split in two basic types: conventional, alkaline detergents wi th caustic components low alkaline concentrated detergents with natural enzymes The use of “normal”...
- Page 10 Fill in detergent Fill the detergent dispenser with detergent. The marki ng indicates the dosing levels , as illustrated on right: The place of main wash cycle detergent placed , “MIN”means approximately 20g of detergen. The place of pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging.
- Page 11 Your dishwasher has a 3 in 1 program which needs not salt and rinse aid but a THREE IN ONE tablet. And this dishwasher comes with a 3 in 1 tablet container as an accessory. NOTE: Only 3 in 1 program uses 3 in 1 tablet. If using 3 in 1 tablet in other programs, the appliance will not get a best performance.
-
Page 12: Atten Tion Befo Re O R After Loading The Dishwasher Rack
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model. Attention before or after Loading the Dishwasher Racks Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water. - Page 13 We recommend that you place large items which are most difficult to clean into the low er rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoi d blocking the rotation of the top spray arm.
-
Page 14: Silverware Basket
Silverware Basket Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at th e front of the upper rack. -
Page 15: Attention
shes and items of cutlery must not lie inside one another, or cover each other avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard! - Page 16 Pre-wash (50℃) For the heaviest soiled loads, -wash (50℃) such as pots,pans,casserole Wash (70 ℃) 4/20 g. dishes and dishes that have Rinse Intensive Rinse been sitting with dried food on them for a while. Rinse ( 55 ℃) Drying Pre-wash(50 ℃) For normally soiled loads, Wash (50 ℃)
- Page 17 Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "...
- Page 18 The filter prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
-
Page 19: Cleaning The Spray Arms
Filter assembly For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be reci rculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. - Page 20 To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the fini sh.
- Page 21 Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.
- Page 22 Water Outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed. Extension Hose If you need a drain hose extension, observe to use a simil ar drain hose. It must be no longer than 4 metres;...
-
Page 23: Before Calling For Service
Before Calling for Service Review the charts on the following pages may make you be free of calling for service. Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on... - Page 24 Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.
- Page 25 Technical data Type : ZWM 416 W Weight gross(kg) Nr of programs Height(cm) Energy class( ) * Width(cm) Energy consumption(kWh/cycle)( ) Depth(cm) 0.74 Wasshing efficiency Depth with opened door(cm) <60 Drying efficiency Hot water connection 0.04-1.0 Loading Capacity(Place settings) Water Pressure Range(kPa)
